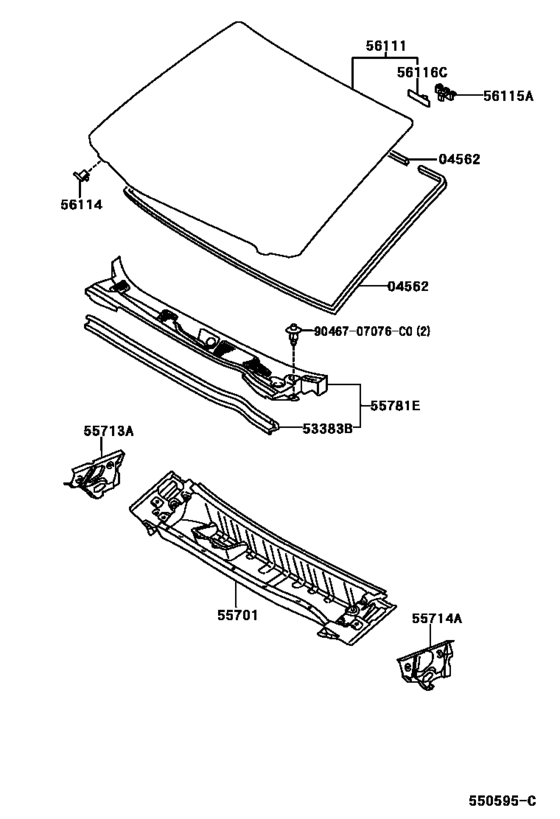

Cowl Panel & Windshield Glass ([02.2000 - ] (0002- )) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
56117-AC010 Dam Kit, Windshield Glass[02.2000 - 02.2001] MCX20 L=3310 |
56117-AC010 |
US $19.07 |
||
| replacement | |||||
|
04562
|
04562
90998-91004 Dam Kit, Windshield Glass[02.2000 - 02.2001] MCX20 L=3310 |
90998-91004 |
US $14.88 |
||
|
04562
|
04562
56118-AC010 Dam Kit, Windshield Glass[02.2000 - 02.2001] MCX20 L=724 |
56118-AC010 |
US $8.30 |
||
| replacement | |||||
|
04562
|
04562
90998-91003 Dam Kit, Windshield Glass[02.2000 - 02.2001] MCX20 L=724 |
90998-91003 |
US $5.07 |
||
|
04562
|
04562
90998-91001
Dam Kit, Windshield Glass
[02.2000 - 07.2002] MCX20 L=3500 |
90998-91001 |
— | ||
| replacement | |||||
|
04562
|
04562
90998-91004 Dam Kit, Windshield Glass[02.2000 - 07.2002] MCX20 L=3500 |
90998-91004 |
US $14.88 |
||
|
04562
|
04562
90998-91002 Dam Kit, Windshield Glass[02.2000 - 07.2002] MCX20 L=750 |
90998-91002 |
US $4.66 |
||
| replacement | |||||
|
04562
|
04562
90998-91003 Dam Kit, Windshield Glass[02.2000 - 07.2002] MCX20 L=750 |
90998-91003 |
US $5.07 |
||
|
04562
|
04562
90998-91003 Dam Kit, Windshield Glass[07.2002 - 01.2003] MCX20 L=750 |
90998-91003 |
US $5.07 |
||
|
04562
|
04562
90998-91004 Dam Kit, Windshield Glass[07.2002 - 01.2003] MCX20 L=3500 |
90998-91004 |
US $14.88 |
||
|
53383B
|
53383B
53383-07020 Seal, Hood To Cowl Top[02.2000 - 07.2002] MCX20 |
53383-07020 |
US $19.95 |
||
|
55701
|
55701
55700-07050 Panel Sub-Assy, Cowl[02.2000 - 07.2002] MCX20 |
55700-07050 |
US $546 |
||
|
55713A
|
55713A
55713-07030 Panel, Cowl Top Side, Rh[02.2000 - 07.2002] MCX20 |
55713-07030 |
US $28.68 |
||
|
55714A
|
55714A
55714-07030 Panel, Cowl Top Side, Lh[02.2000 - 07.2002] MCX20 |
55714-07030 |
US $28.68 |
||
|
55781E
|
55781E
55781-07030 Louver Sub-Assy, Cowl Top Ventilator[02.2000 - 07.2002] MCX20 |
55781-07030 |
US $123.76 |
||
|
56111
|
56111
56101-AC120 Glass, Windshield[02.2000 - 07.2002] MCX20 ＊ＵＶＣＴＴ，Ｔ＝４．７ |
56101-AC120 |
US $2,023.84 |
||
|
56111
|
56111
56101-AC150 Glass, Windshield[07.2002 - 01.2003] MCX20 ＊ＴＬ，Ｔ＝４．７，グリーン |
56101-AC150 |
US $2,198.56 |
||
|
56114
|
56114
56114-22050 Retainer, Windshield Glass[02.2000 - 07.2002] MCX20 |
56114-22050 |
from US $4.13 |
||
|
56115A
|
56115A
56115-22010 Stopper, Windshield Glass, No.1[02.2000 - 08.2001] MCX20 |
56115-22010 |
from US $1.76 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[02.2000 - 08.2001] MCX20 |
56116-22050 |
from US $1.38 |
||
|
9046707076C0
|
9046707076C0
90467-07076-C0 Clip, Radiator Grille |
90467-07076-C0 |
from US $0.99 |
||
