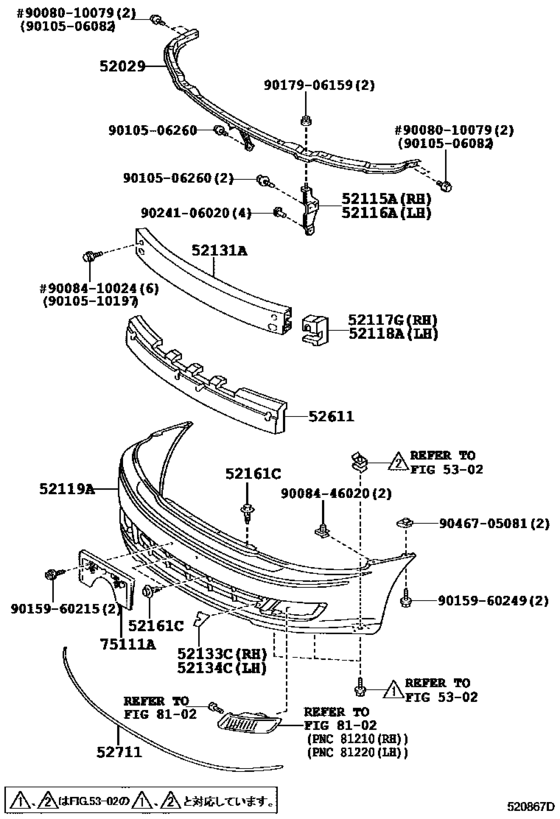

Front Bumper & Bumper Stay ([07.2002 - ] (0207- )) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52029
|
52029
52029-AC030 Reinforcement Sub-Assy, Front Bumper, Upper[02.2000 - 07.2002] MCX20 |
52029-AC030 |
US $87.36 |
||
|
52115A
|
52115A
52115-AC020 Support, Front Bumper Side, Rh[02.2000 - 07.2002] MCX20 |
52115-AC020 |
US $14.27 |
||
|
52116A
|
52116A
52116-AC010 Support, Front Bumper Side, Lh[02.2000 - 07.2002] MCX20 |
52116-AC010 |
US $14.27 |
||
|
52117G
|
52117G
52117-AC010 Insert, Front Bumper Extension, No.2 Rh[02.2000 - 07.2002] MCX20 |
52117-AC010 |
US $13.83 |
||
|
52118A
|
52118A
52118-AC010 Insert, Front Bumper Extension, No.2 Lh[02.2000 - 07.2002] MCX20 |
52118-AC010 |
US $13.83 |
||
|
52119A
|
52119A
52119-07020-A0 Cover, Front Bumper[07.2002 - 01.2003] MCX20 SU. WHITE PM.,051 |
52119-07020-A0 |
US $1,176.45 |
||
|
52119A
|
52119A
52119-07020-B0 Cover, Front Bumper[07.2002 - 01.2003] MCX20 SILVER ME.,1C8 |
52119-07020-B0 |
US $1,176.45 |
||
|
52119A
|
52119A
52119-07020-J0 Cover, Front Bumper[07.2002 - 01.2003] MCX20 DK.BLUE MC.,8Q0 |
52119-07020-J0 |
US $1,176.45 |
||
|
52119A
|
52119A
52119-AC080-A0 Cover, Front Bumper[02.2000 - 07.2002] MCX20 SU.WHITE PM,051 |
52119-AC080-A0 |
US $1,176.45 |
||
|
52119A
|
52119A
52119-AC080-B0 Cover, Front Bumper[02.2000 - 07.2002] MCX20 SLVER ME.,1C8 |
52119-AC080-B0 |
US $1,176.45 |
||
|
52119A
|
52119A
52119-AC080-G0 Cover, Front Bumper[02.2000 - 07.2002] MCX20 GREEN MC.,6R1 |
52119-AC080-G0 |
US $1,176.45 |
||
|
52131A
|
52131A
52131-AC060 Reinforcement, Front Bumper[02.2000 - 07.2002] MCX20 |
52131-AC060 |
US $308.67 |
||
|
52133C
|
52133C
52133-07010 Reinforcement, Front Bumper Bar, Rh[07.2002 - 01.2003] MCX20 |
52133-07010 |
US $12.67 |
||
|
52134C
|
52134C
52134-07010 Reinforcement, Front Bumper Bar, Lh[07.2002 - 01.2003] MCX20 |
52134-07010 |
US $12.67 |
||
|
52161C
|
52161C
52161-02020 Clip[02.2000 - 07.2002] MCX20 |
52161-02020 |
US $5.27 |
||
| replacement | |||||
|
52161C
|
52161C
52161-16010 Clip[02.2000 - 07.2002] MCX20 |
52161-16010 |
from US $1.68 |
||
|
52611
|
52611
52611-07010 Absorber, Front Bumper Energy[07.2002 - 01.2003] MCX20 |
52611-07010 |
US $154.34 |
||
|
52611
|
52611
52611-AC030 Absorber, Front Bumper Energy[02.2000 - 07.2002] MCX20 |
52611-AC030 |
US $144.14 |
||
|
52711
|
52711
52711-07010 Moulding, Front Bumper[07.2002 - 01.2003] MCX20 |
52711-07010 |
US $67.85 |
||
|
52711
|
52711
52711-AC040 Moulding, Front Bumper[02.2000 - 07.2002] MCX20 |
52711-AC040 |
from US $61.58 |
||
|
75111A
|
75111A
75111-AC030 Bracket, Front License Plate[02.2000 - 07.2002] MCX20 |
75111-AC030 |
US $37.27 |
||
|
75111A
|
75111A
75111-AC050 Bracket, Front License Plate[07.2002 - 01.2003] MCX20 |
75111-AC050 |
US $41.93 |
||
|
9008010079
|
9008010079
90080-10079
New Genuine Part
|
90080-10079 |
— | ||
|
9008410024
|
9008410024
90084-10024 New Genuine Part |
90084-10024 |
US $2.18 |
||
|
9008446020
|
9008446020
90084-46020 CLIP |
90084-46020 |
from US $2.38 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010510197
|
9010510197
90105-10197 BOLT |
90105-10197 |
US $0.96 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.12 |
||
|
9015960249
|
9015960249
90159-60249 SCREW WWASHER TAPP |
90159-60249 |
from US $1.42 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9024106020
|
9024106020
90241-06020 PIN WHEAD |
90241-06020 |
US $2.04 |
||
|
9046705081
|
9046705081
90467-05081 COLLAR |
90467-05081 |
from US $1.62 |
||
| replacement | |||||
|
9046705081
|
9046705081
90467-A0018 CLIP |
90467-A0018 |
from US $2.48 |
||
