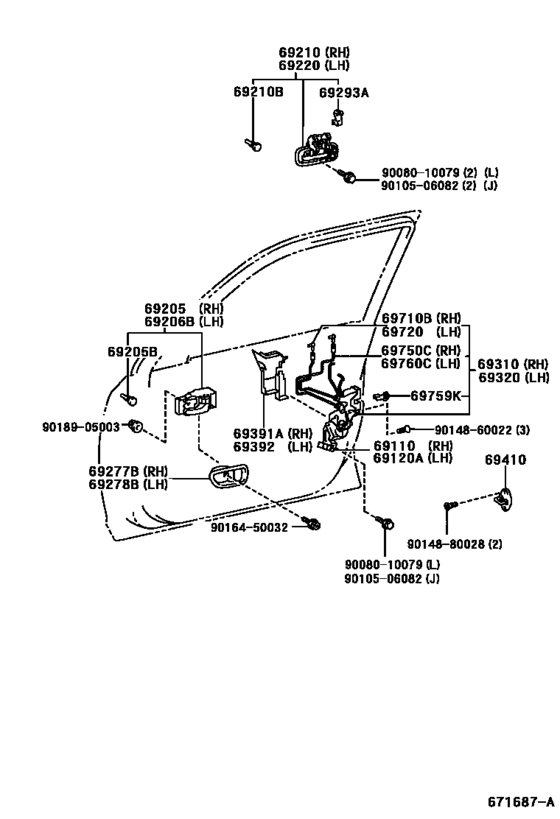

Front Door Lock & Handle ([02.2000 - ] (0002- )) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69110
|
69110
69110-06010 Actuator Assy, Front Door Lock, Rh[02.2000 - 07.2002] MCX20 |
69110-06010 |
US $131.04 |
||
|
69120A
|
69120A
69120-AC020 Actuator Assy, Front Door Lock, Lh[02.2000 - 07.2002] MCX20 |
69120-AC020 |
US $131.04 |
||
|
69205
|
69205
69205-AC010-A0 Handle Sub-Assy, Front Door Inside, Rh[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
69205-AC010-A0 |
US $41.06 |
||
|
69205
|
69205
69205-AC010-E1 Handle Sub-Assy, Front Door Inside, Rh[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
69205-AC010-E1 |
US $41.06 |
||
|
69205B
|
69205B
90080-54005
Cushion(For Front Door Inside Handle)
[02.2000 - 07.2002] MCX20 |
90080-54005 |
— | ||
|
69206B
|
69206B
69206-AC010-A0 Handle Sub-Assy, Front Door Inside, Lh[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
69206-AC010-A0 |
from US $37.60 |
||
|
69206B
|
69206B
69206-AC010-E1 Handle Sub-Assy, Front Door Inside, Lh[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
69206-AC010-E1 |
US $41.06 |
||
|
69210
|
69210
69210-AC030-A0 Handle Assy, Front Door, Outside Rh[02.2000 - 07.2002] MCX20 SU.WHITE PM,051 |
69210-AC030-A0 |
US $99.01 |
||
|
69210
|
69210
69210-AC030-B0 Handle Assy, Front Door, Outside Rh[02.2000 - 07.2002] MCX20 SLVER ME.,1C8 |
69210-AC030-B0 |
US $99.01 |
||
|
69210
|
69210
69210-AC030-G1 Handle Assy, Front Door, Outside Rh[02.2000 - 07.2002] MCX20 GREEN MC.,6R1 |
69210-AC030-G1 |
US $99.01 |
||
|
69210
|
69210
69210-AC030-J1 Handle Assy, Front Door, Outside Rh[07.2002 - 01.2003] MCX20 DK.BLUE MC.,8Q0 |
69210-AC030-J1 |
US $99.01 |
||
|
69210B
|
69210B
90080-54005
Cushion(For Front Door Inside Handle)
[02.2000 - 07.2002] MCX20 |
90080-54005 |
— | ||
|
69220
|
69220
69220-AC030-A0 Handle Assy, Front Door Outside, Lh[02.2000 - 07.2002] MCX20 SU.WHITE PM,051 |
69220-AC030-A0 |
US $99.01 |
||
|
69220
|
69220
69220-AC030-B0
Handle Assy, Front Door Outside, Lh
[02.2000 - 07.2002] MCX20 SLVER ME.,1C8 |
69220-AC030-B0 |
— | ||
|
69220
|
69220
69220-AC030-G1 Handle Assy, Front Door Outside, Lh[02.2000 - 07.2002] MCX20 GREEN MC.,6R1 |
69220-AC030-G1 |
US $99.01 |
||
|
69220
|
69220
69220-AC030-J1 Handle Assy, Front Door Outside, Lh[07.2002 - 01.2003] MCX20 DK.BLUE MC.,8Q0 |
69220-AC030-J1 |
US $99.01 |
||
|
69277B
|
69277B
69277-AC010-A0 Bezel, Front Door Inside Handle, Rh[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
69277-AC010-A0 |
US $13.40 |
||
|
69277B
|
69277B
69277-AC010-E0
Bezel, Front Door Inside Handle, Rh
[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
69277-AC010-E0 |
— | ||
|
69278B
|
69278B
69278-AC010-A0 Bezel, Front Door Inside Handle, Lh[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
69278-AC010-A0 |
US $14.15 |
||
|
69278B
|
69278B
69278-AC010-E0
Bezel, Front Door Inside Handle, Lh
[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
69278-AC010-E0 |
— | ||
|
69293A
|
69293A
69293-AC010 Snap, Front Door Outside Handle[02.2000 - 07.2002] MCX20 右側 |
69293-AC010 |
US $2.04 |
||
|
69293A
|
69293A
69293-AC020
Snap, Front Door Outside Handle
[02.2000 - 07.2002] MCX20 左側 |
69293-AC020 |
— | ||
|
69310
|
69310
69303-AC040 Lock Assy, Front Door, Rh[02.2000 - 07.2002] MCX20 |
69303-AC040 |
US $126.67 |
||
|
69320
|
69320
69304-AC040 Lock Assy, Front Door, Lh[02.2000 - 07.2002] MCX20 |
69304-AC040 |
US $126.67 |
||
|
69391A
|
69391A
69391-AC010 Cover, Front Door Lock, Outer Rh[02.2000 - 07.2002] MCX20 |
69391-AC010 |
US $25.92 |
||
|
69392
|
69392
69392-AC010 Cover, Front Door Lock, Outer Lh[02.2000 - 07.2002] MCX20 |
69392-AC010 |
US $25.92 |
||
|
69410
|
69410
69410-02020 Plate Assy, Front Door Lock Striker[02.2000 - 07.2002] MCX20 |
69410-02020 |
US $15 |
||
|
69710B
|
69710B
69710-AC010 Cable Assy, Front Door Lock Remote Control, Rh[02.2000 - 07.2002] MCX20 |
69710-AC010 |
US $21.84 |
||
|
69720
|
69720
69720-AC010 Link Assy, Front Door Open Control, Lh[02.2000 - 07.2002] MCX20 |
69720-AC010 |
US $21.84 |
||
|
69750C
|
69750C
69750-AC020 Cable Assy, Front Door Inside Locking, Rh[02.2000 - 07.2002] MCX20 |
69750-AC020 |
US $21.84 |
||
|
69759K
|
69759K
69759-24080 Snap, Front Door Lock Control Rod[02.2000 - 07.2002] MCX20 右側 |
69759-24080 |
US $3.20 |
||
|
69759K
|
69759K
69759-24090 Snap, Front Door Lock Control Rod[02.2000 - 07.2002] MCX20 左側 |
69759-24090 |
US $2.88 |
||
|
69760C
|
69760C
69760-AC030 Cable Assy, Front Door Inside Locking Lh[02.2000 - 07.2002] MCX20 |
69760-AC030 |
US $21.84 |
||
|
9008010079
|
9008010079
90080-10079
New Genuine Part
|
90080-10079 |
— | ||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880028
|
9014880028
90148-80028 SCREW, HEX LOBULAR |
90148-80028 |
from US $0.74 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.44 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
