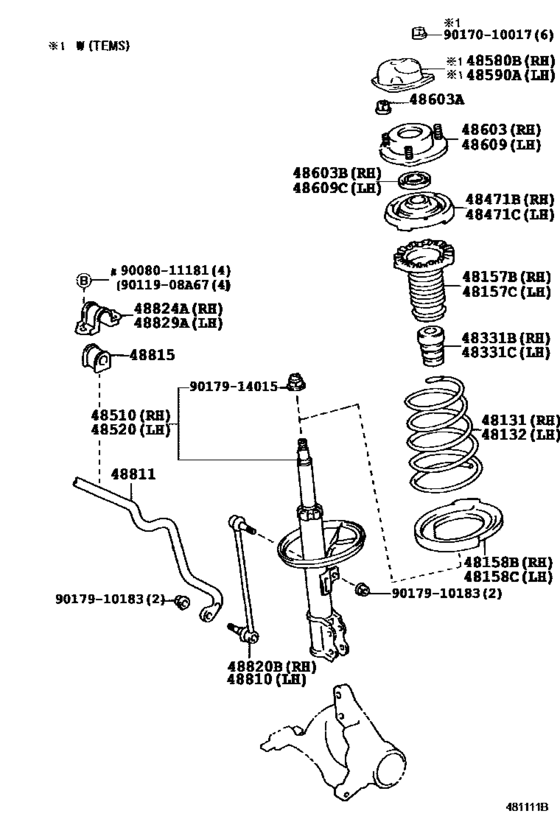

Front Spring & Shock Absorber ([02.2000 - ] (0002- )) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-07070 Spring, Front Coil, Rh[02.2000 - 07.2002] MCX20 |
48131-07070 |
US $87.36 |
||
|
48132
|
48132
48131-07070 Spring, Front Coil, Rh[02.2000 - 07.2002] MCX20 |
48131-07070 |
US $87.36 |
||
|
48157B
|
48157B
48157-07010
Insulator, Front Coil Spring, Upper Rh
[02.2000 - 07.2002] MCX20 |
48157-07010 |
— | ||
|
48157C
|
48157C
48157-07010
Insulator, Front Coil Spring, Upper Rh
[02.2000 - 07.2002] MCX20 |
48157-07010 |
— | ||
|
48158B
|
48158B
48158-07010 Insulator, Front Coil Spring, Lower Rh[02.2000 - 07.2002] MCX20 |
48158-07010 |
US $19.22 |
||
|
48158C
|
48158C
48158-07010 Insulator, Front Coil Spring, Lower Rh[02.2000 - 07.2002] MCX20 |
48158-07010 |
US $19.22 |
||
|
48331B
|
48331B
48331-06011
Bumper, Front Spring, Rh
[02.2000 - 07.2002] MCX20 |
48331-06011 |
— | ||
|
48331C
|
48331C
48331-06011
Bumper, Front Spring, Rh
[02.2000 - 07.2002] MCX20 |
48331-06011 |
— | ||
|
48471B
|
48471B
48471-06030
Seat, Front Coil Spring, Upper Rh
[12.2001 - 07.2002] MCX20 |
48471-06030 |
— | ||
| replacements | |||||
|
48471B
|
48471B
48471-0E011
Seat, Front Coil Spring, Upper Rh
[12.2001 - 07.2002] MCX20 |
48471-0E011 |
— | ||
|
48471B
|
48471B
48471-AA010
Seat, Front Coil Spring, Upper Rh
[12.2001 - 07.2002] MCX20 |
48471-AA010 |
— | ||
|
48471B
|
48471B
48471-41010 Seat, Front Coil Spring, Upper[02.2000 - 12.2001] MCX20 |
48471-41010 |
from US $28.70 |
||
|
48471C
|
48471C
48471-06030
Seat, Front Coil Spring, Upper Rh
[12.2001 - 07.2002] MCX20 |
48471-06030 |
— | ||
| replacements | |||||
|
48471C
|
48471C
48471-0E011
Seat, Front Coil Spring, Upper Rh
[12.2001 - 07.2002] MCX20 |
48471-0E011 |
— | ||
|
48471C
|
48471C
48471-AA010
Seat, Front Coil Spring, Upper Rh
[12.2001 - 07.2002] MCX20 |
48471-AA010 |
— | ||
|
48471C
|
48471C
48471-41010 Seat, Front Coil Spring, Upper[02.2000 - 12.2001] MCX20 |
48471-41010 |
from US $28.70 |
||
|
48510
|
48510
48510-09360 Absorber Assy, Shock, Front Rh[02.2000 - 07.2002] MCX20 マーク ４８５１０−０７０５０ |
48510-09360 |
US $330.51 |
||
|
48520
|
48520
48520-09300 Absorber Assy, Shock, Front Lh[02.2000 - 07.2002] MCX20 マーク ４８５２０−０７０５０ |
48520-09300 |
US $330.51 |
||
|
48603
|
48603
48603-06011 Support Sub-Assy, Front Suspension, Rh[02.2000 - 07.2002] MCX20 |
48603-06011 |
US $41.50 |
||
|
48603A
|
48603A
90178-10008 Nut (For Rear Axle Bearing Case Rh)[02.2000 - 07.2001] MCX20 |
90178-10008 |
US $1.60 |
||
|
48603A
|
48603A
90178-10018 Nut(For Front Suspension Support)[07.2001 - 07.2002] MCX20 |
90178-10018 |
US $2.72 |
||
|
48603B
|
48603B
90080-36070
Bearing(For Front Suspension Support Rh)
[02.2000 - 07.2002] MCX20 （Ｌ） |
90080-36070 |
— | ||
| replacement | |||||
|
48603B
|
48603B
90903-63014 Bearing(For Front Suspension Support)[02.2000 - 07.2002] MCX20 （Ｌ） |
90903-63014 |
from US $32.07 |
||
|
48603B
|
48603B
90903-63002
Bearing(For Front Suspension Support)
[02.2000 - 07.2002] MCX20 （Ｊ） |
90903-63002 |
— | ||
| replacement | |||||
|
48603B
|
48603B
90903-63014 Bearing(For Front Suspension Support)[02.2000 - 07.2002] MCX20 （Ｊ） |
90903-63014 |
from US $32.07 |
||
|
48609
|
48609
48609-06061 Support Sub-Assy, Front Suspension, Lh[02.2000 - 07.2002] MCX20 |
48609-06061 |
US $41.50 |
||
|
48609C
|
48609C
90080-36070
Bearing(For Front Suspension Support Rh)
[02.2000 - 07.2002] MCX20 （Ｌ） |
90080-36070 |
— | ||
| replacement | |||||
|
48609C
|
48609C
90903-63014 Bearing(For Front Suspension Support)[02.2000 - 07.2002] MCX20 （Ｌ） |
90903-63014 |
from US $32.07 |
||
|
48609C
|
48609C
90903-63002
Bearing(For Front Suspension Support)
[02.2000 - 07.2002] MCX20 （Ｊ） |
90903-63002 |
— | ||
| replacement | |||||
|
48609C
|
48609C
90903-63014 Bearing(For Front Suspension Support)[02.2000 - 07.2002] MCX20 （Ｊ） |
90903-63014 |
from US $32.07 |
||
|
48810
|
48810
48810-06030
Link Assy, Front Stabilizer, Lh
[02.2000 - 07.2002] MCX20 |
48810-06030 |
— | ||
|
48811
|
48811
48811-AC020 Bar, Stabilizer, Front[02.2000 - 07.2002] MCX20 |
48811-AC020 |
US $131.04 |
||
|
48815
|
48815
48815-06050
Bush, Front Stabilizer Bar, No.1
[02.2000 - 07.2002] MCX20 |
48815-06050 |
— | ||
| replacement | |||||
|
48815
|
48815
48815-33050 Bush, Front Stabilizer Bar, No.1[02.2000 - 07.2002] MCX20 |
48815-33050 |
from US $8.59 |
||
|
48820B
|
48820B
48820-06030
Link Assy, Front Stabilizer
[02.2000 - 07.2002] MCX20 |
48820-06030 |
— | ||
|
48824A
|
48824A
48824-07010 Bracket, Stabilizer, Front[02.2000 - 07.2002] MCX20 |
48824-07010 |
US $13.54 |
||
| replacement | |||||
|
48824A
|
48824A
48824-33020 Bracket, Stabilizer, Front[02.2000 - 07.2002] MCX20 |
48824-33020 |
from US $4.51 |
||
|
48829A
|
48829A
48824-07010 Bracket, Stabilizer, Front[02.2000 - 07.2002] MCX20 |
48824-07010 |
US $13.54 |
||
| replacement | |||||
|
48829A
|
48829A
48824-33020 Bracket, Stabilizer, Front[02.2000 - 07.2002] MCX20 |
48824-33020 |
from US $4.51 |
||
|
9011908A67
|
9011908A67
90119-08A67
Bolt(For Clutch Release Cylinder Setting)
|
90119-08A67 |
— | ||
| replacement | |||||
|
9011908A67
|
9011908A67
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9008011181
|
9008011181
90080-11181
New Genuine Part
|
90080-11181 |
— | ||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9017910183
|
9017910183
90179-10183 Nut(For Front Stabilizer Link) |
90179-10183 |
from US $0.88 |
||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.09 |
||
