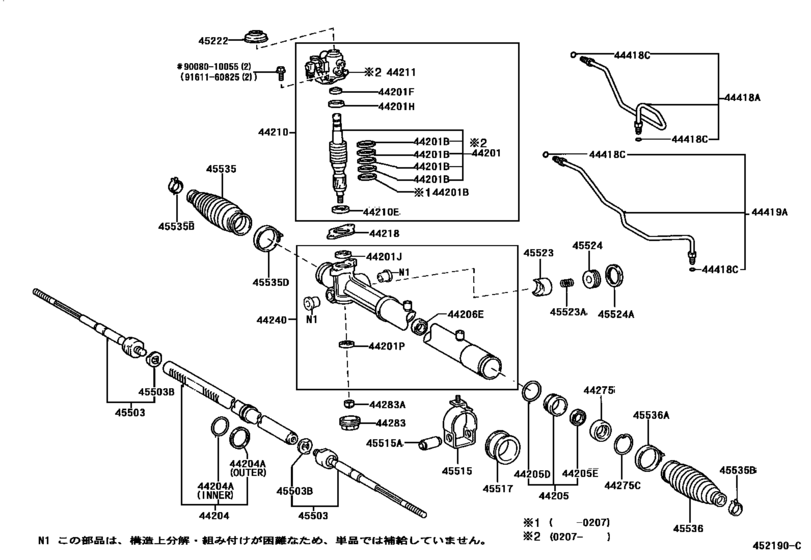

Front Steering Gear & Link ([02.2000 - ] (0002- )) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201
|
44201
44201-33160 Valve Sub-Assy, Power Steering Control[07.2002 - 01.2003] MCX20 |
44201-33160 |
US $294.11 |
||
|
44201B
|
44201B
90560-33003 Spacer(For Power Steering Control Valve)[07.2002 - 01.2003] MCX20 |
90560-33003 |
from US $1.40 |
||
|
44201F
|
44201F
90080-31016
Seal, Oil(For Power Steering Control Valve)
[07.2002 - 01.2003] MCX20 |
90080-31016 |
— | ||
|
44201F
|
44201F
90311-19010 Seal, Oil(For Power Steering Control Valve)[02.2000 - 07.2002] MCX20 |
90311-19010 |
from US $3.84 |
||
|
44201H
|
44201H
90080-36031
Bearing(For Power Steering Control Valve Upper)
[07.2002 - 01.2003] MCX20 |
90080-36031 |
— | ||
|
44201H
|
44201H
90363-19007 Bearing(For Power Steering Control Valve)[02.2000 - 07.2002] MCX20 |
90363-19007 |
US $20.79 |
||
|
44201J
|
44201J
90080-36044
Bearing(For Power Steering Control Valve Center)
[02.2000 - 07.2002] MCX20 |
90080-36044 |
— | ||
|
44201P
|
44201P
90363-12013 Bearing(For Power Steering Control Valve Lower)[02.2000 - 07.2002] MCX20 |
90363-12013 |
from US $8.39 |
||
|
44204
|
44204
44204-07040 Rack Sub-Assy, Power Steering[02.2000 - 07.2002] MCX20 |
44204-07040 |
US $228.59 |
||
|
44204A
|
44204A
90080-30022
Ring(For Rack Steering Piston)
[02.2000 - 07.2002] MCX20 内側 |
90080-30022 |
— | ||
|
44204A
|
44204A
90080-56013
Ring(For Rack Steering Piston)
[02.2000 - 07.2002] MCX20 外側 |
90080-56013 |
— | ||
|
44205
|
44205
44205-07010 Stopper Sub-Assy, Cylinder End[02.2000 - 07.2002] MCX20 |
44205-07010 |
US $82.99 |
||
|
44205D
|
44205D
90080-30025
Ring, O(For Power Steering Rack Bush)
[02.2000 - 07.2002] MCX20 |
90080-30025 |
— | ||
|
44205E
|
44205E
90080-31010
Seal, Oil(For Power Steering Rack Bush)
[02.2000 - 07.2002] MCX20 |
90080-31010 |
— | ||
|
44206E
|
44206E
90080-31038
Seal, Oil, No.1(For Power Steering Cylinder Tube)
[02.2000 - 07.2002] MCX20 |
90080-31038 |
— | ||
|
44210
|
44210
44210-07051 Valve Assy, Power Steering Control[07.2002 - 01.2003] MCX20 |
44210-07051 |
US $563.47 |
||
|
44210
|
44210
44210-07060 Valve Assy, Power Steering Control[02.2000 - 07.2002] MCX20 |
44210-07060 |
US $563.47 |
||
|
44210E
|
44210E
90080-31015
Seal, Oil(For Power Steering Control Valve)
[07.2002 - 01.2003] MCX20 |
90080-31015 |
— | ||
|
44210E
|
44210E
90311-26003 Seal, Oil(For Power Steering Control Valve)[02.2000 - 07.2002] MCX20 |
90311-26003 |
from US $3.84 |
||
|
44211
|
44211
44211-06021 Housing, Control Valve[07.2002 - 01.2003] MCX20 |
44211-06021 |
US $192.19 |
||
|
44218
|
44218
44218-06010
Gasket, Valve Housing
[02.2000 - 07.2002] MCX20 |
44218-06010 |
— | ||
|
44240
|
44240
44240-07040 Housing Assy, Power Steering Rack[02.2000 - 07.2002] MCX20 |
44240-07040 |
US $407.68 |
||
|
44275
|
44275
44275-06020 Stopper, Cylinder End[02.2000 - 07.2002] MCX20 |
44275-06020 |
US $24.32 |
||
|
44275C
|
44275C
90080-58122 Wire(For Cylinder End Stopper)[02.2000 - 07.2002] MCX20 |
90080-58122 |
US $3.89 |
||
|
44283
|
44283
44283-06010
Cap, Rack Housing
[02.2000 - 07.2002] MCX20 |
44283-06010 |
— | ||
| replacement | |||||
|
44283
|
44283
44283-08010
Cap, Rack Housing
[02.2000 - 07.2002] MCX20 |
44283-08010 |
— | ||
|
44283A
|
44283A
90080-17078 Nut(For Rack Housing Cap)[02.2000 - 07.2002] MCX20 |
90080-17078 |
US $0.73 |
||
|
44418A
|
44418A
44418-07020 Tube, Steering Right Turn Pressure[07.2002 - 01.2003] MCX20 |
44418-07020 |
US $15.87 |
||
|
44418A
|
44418A
44418-07030 Tube, Steering Right Turn Pressure[02.2000 - 07.2002] MCX20 |
44418-07030 |
US $16.89 |
||
|
44418C
|
44418C
90080-30023 Ring, O(For Steering Turn Pressure Tube)[02.2000 - 07.2002] MCX20 |
90080-30023 |
US $6.41 |
||
|
44419A
|
44419A
44419-07020 Tube, Steering Left Turn Pressure[02.2000 - 07.2002] MCX20 |
44419-07020 |
US $19.66 |
||
|
45222
|
45222
45222-06010
Cover, Steering Gear Dust
[02.2000 - 09.2000] MCX20 |
45222-06010 |
— | ||
|
45222
|
45222
45222-0C010 Cover, Steering Gear Dust[09.2000 - 07.2002] MCX20 |
45222-0C010 |
US $4.37 |
||
|
45503
|
45503
45503-39135 End Sub-Assy, Steering Rack[02.2000 - 07.2002] MCX20 |
45503-39135 |
from US $112.48 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[02.2000 - 07.2002] MCX20 外径＝３７ |
90214-14002 |
from US $1.33 |
||
|
45515
|
45515
45515-06011 Bracket, Steering Rack Housing, No.2[03.2000 - 07.2002] MCX20 |
45515-06011 |
US $13.10 |
||
|
45515A
|
45515A
90080-38062 Collar, Steering Rack Housing Bracket[03.2000 - 07.2002] MCX20 |
90080-38062 |
US $2.62 |
||
|
45517
|
45517
45517-06030 Grommet, Steering Rack Housing, No.2[03.2000 - 07.2002] MCX20 |
45517-06030 |
US $12 |
||
|
45523
|
45523
45504-06010 Guide, Rack(For Steering Gear)[02.2000 - 07.2002] MCX20 |
45504-06010 |
US $81.54 |
||
|
45523A
|
45523A
90080-50159
Spring(For Steering Gear Rack Guide)
[02.2000 - 07.2002] MCX20 |
90080-50159 |
— | ||
|
45524
|
45524
45524-06010
Cap, Steering Rack Guide Spring
[02.2000 - 07.2002] MCX20 |
45524-06010 |
— | ||
|
45524A
|
45524A
44142-06010
Nut(For Steering Rack Guide Spring Cap)
[02.2000 - 07.2002] MCX20 |
44142-06010 |
— | ||
|
45535
|
45535
45535-06020
Boot, Steering Rack, No.1
[02.2000 - 09.2001] MCX20 |
45535-06020 |
— | ||
|
45535
|
45535
45535-07010 Boot, Steering Rack, No.1[09.2001 - 07.2002] MCX20 |
45535-07010 |
US $11.01 |
||
|
45535B
|
45535B
90080-46153
Clip(For Steering Rack Boot)
[02.2000 - 07.2002] MCX20 |
90080-46153 |
— | ||
|
45535D
|
45535D
90080-46152
Clamp(For Steering Rack Boot No.1)
[02.2000 - 07.2002] MCX20 |
90080-46152 |
— | ||
| replacement | |||||
|
45535D
|
45535D
90460-58006 Clamp(For Steering Rack Boot No.1)[02.2000 - 07.2002] MCX20 |
90460-58006 |
US $5.92 |
||
|
45536
|
45536
45535-06020
Boot, Steering Rack, No.1
[02.2000 - 09.2001] MCX20 |
45535-06020 |
— | ||
|
45536
|
45536
45535-07010 Boot, Steering Rack, No.1[09.2001 - 07.2002] MCX20 |
45535-07010 |
US $11.01 |
||
|
45536A
|
45536A
90080-46152
Clamp(For Steering Rack Boot No.1)
[02.2000 - 07.2002] MCX20 |
90080-46152 |
— | ||
| replacement | |||||
|
45536A
|
45536A
90460-58006 Clamp(For Steering Rack Boot No.1)[02.2000 - 07.2002] MCX20 |
90460-58006 |
US $5.92 |
||
|
9008010055
|
9008010055
90080-10055 New Genuine Part |
90080-10055 |
US $1.60 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
