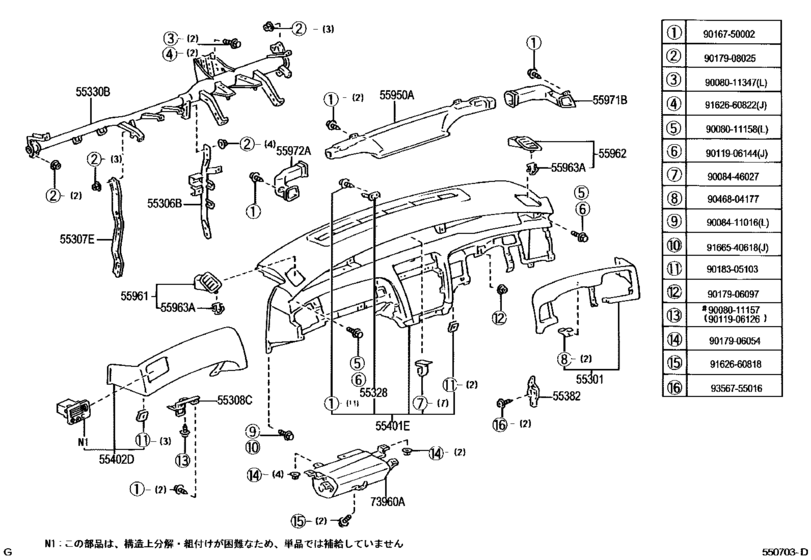

Instrument Panel & Glove Compartment ([02.2000 - 07.2002] (0002-0207)) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-07010-A0 Panel Sub-Assy, Instrument[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55301-07010-A0 |
US $71.78 |
||
|
55301
|
55301
55301-07010-E0 Panel Sub-Assy, Instrument[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55301-07010-E0 |
US $71.78 |
||
|
55306B
|
55306B
55306-07040 Brace Sub-Assy, Instrument Panel To Cowl[02.2000 - 07.2002] MCX20..4HC |
55306-07040 |
US $63.34 |
||
|
55308C
|
55308C
55308-AC020 Bracket Sub-Assy, Instrument Panel, Center[02.2000 - 07.2002] MCX20 |
55308-AC020 |
US $11.79 |
||
|
55328
|
55328
55328-50010 Pin, Instrument Panel, No.1[02.2000 - 07.2002] MCX20 |
55328-50010 |
US $3.06 |
||
|
55330B
|
55330B
55330-07020 Reinforcement Assy, Instrument Panel[02.2000 - 12.2001] MCX20 |
55330-07020 |
US $294.11 |
||
| replacement | |||||
|
55330B
|
55330B
55330-07021 Reinforcement Assy, Instrument Panel[02.2000 - 12.2001] MCX20 |
55330-07021 |
US $294.11 |
||
|
55330B
|
55330B
55330-07021 Reinforcement Assy, Instrument Panel[12.2001 - 07.2002] MCX20 |
55330-07021 |
US $294.11 |
||
|
55382
|
55382
55382-07020 Bracket, Finish Panel Mounting, No.2[02.2000 - 07.2002] MCX20 |
55382-07020 |
US $10.92 |
||
|
55401E
|
55401E
55401-07050-E0 Pad Sub-Assy, Instrument Panel Safety[02.2000 - 07.2002] MCX20 SANDAL WOOD,TRIM0# |
55401-07050-E0 |
US $908.54 |
||
| replacement | |||||
|
55401E
|
55401E
55401-07100-E0 Pad Sub-Assy, Instrument Panel Safety[02.2000 - 07.2002] MCX20 SANDAL WOOD,TRIM0# |
55401-07100-E0 |
US $908.54 |
||
|
55402D
|
55402D
55402-AC020-A0 Pad Sub-Assy, Instrument Panel Safety, No.1[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55402-AC020-A0 |
US $339.25 |
||
|
55402D
|
55402D
55402-AC020-E0 Pad Sub-Assy, Instrument Panel Safety, No.1[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55402-AC020-E0 |
US $339.25 |
||
|
55950A
|
55950A
55950-AC030 Nozzle Assy, Defroster[02.2000 - 07.2002] MCX20 |
55950-AC030 |
US $62.17 |
||
|
55961
|
55961
55961-AC030-E0 Nozzle, Side Defroster, No.1[02.2000 - 07.2002] MCX20 SANDAL WOOD,TRIM0# |
55961-AC030-E0 |
US $27.37 |
||
|
55962
|
55962
55962-AC030-E0 Nozzle, Side Defroster, No.2[02.2000 - 07.2002] MCX20 SANDAL WOOD,TRIM0# |
55962-AC030-E0 |
US $27.37 |
||
|
55963A
|
55963A
55963-33020 Retainer, Side Defroster[02.2000 - 05.2000] MCX20 |
55963-33020 |
US $1.75 |
||
|
55963A
|
55963A
90468-04175 Retainer, Side Defroster[05.2000 - 07.2002] MCX20 |
90468-04175 |
US $0.58 |
||
|
55971B
|
55971B
55971-AC030 Duct, Side Defroster Nozzle, No.1[02.2000 - 07.2002] MCX20 |
55971-AC030 |
US $19.95 |
||
|
55972A
|
55972A
55972-AC030 Duct, Side Defroster Nozzle, No.2[02.2000 - 07.2002] MCX20 |
55972-AC030 |
US $19.95 |
||
|
73960A
|
73960A
73960-07040 Air Bag Assy, Instrument Panel Passenger W/o Door[02.2000 - 07.2002] MCX20 |
73960-07040 |
US $1,616.16 |
||
|
9008011157
|
9008011157
90080-11157
Bolt with Washer
|
90080-11157 |
— | ||
|
9008011158
|
9008011158
90080-11158
Bolt, Hexagon (For Shift Lever Plate)
|
90080-11158 |
— | ||
|
9008011347
|
9008011347
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9008411016
|
9008411016
90084-11016
New Genuine Part
|
90084-11016 |
— | ||
|
9008446027
|
9008446027
90084-46027 Clip, Safety Pad Set |
90084-46027 |
US $0.73 |
||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
from US $1.12 |
||
| replacement | |||||
|
9011906126
|
9011906126
90080-11157
Bolt with Washer
|
90080-11157 |
— | ||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9016750002
|
9016750002
90167-50002
Direct
|
90167-50002 |
— | ||
| replacement | |||||
|
9016750002
|
9016750002
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9162660818
|
9162660818
91626-60818
Bolt (For Transmission Control Cable Bracket)
|
91626-60818 |
— | ||
| replacement | |||||
|
9162660818
|
9162660818
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
9162660822
|
9162660822
91626-60822
Bolt, Radiator Side Support Plate
|
91626-60822 |
— | ||
| replacement | |||||
|
9162660822
|
9162660822
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9166540618
|
9166540618
91665-40618
New Genuine Part
|
91665-40618 |
— | ||
| replacement | |||||
|
9166540618
|
9166540618
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
