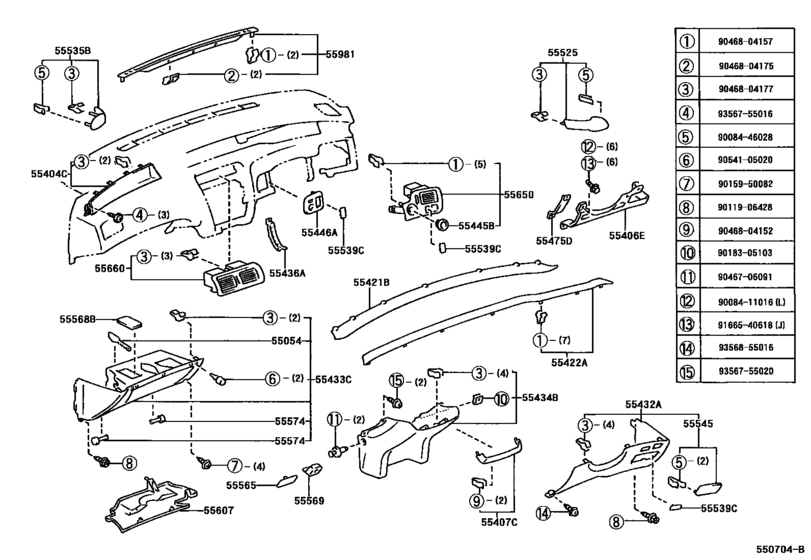

Instrument Panel & Glove Compartment ([02.2000 - 07.2002] (0002-0207)) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-AC010
Stopper Sub-Assy, Glove Compartment Door
[02.2000 - 07.2000] MCX20 |
55054-AC010 |
— | ||
|
55054
|
55054
55054-AC020 Stopper Sub-Assy, Glove Compartment Door[07.2000 - 11.2001] MCX20 |
55054-AC020 |
US $23.88 |
||
| replacement | |||||
|
55054
|
55054
55054-AC021 Stopper Sub-Assy, Glove Compartment Door[07.2000 - 11.2001] MCX20 |
55054-AC021 |
US $23.88 |
||
|
55054
|
55054
55054-AC021 Stopper Sub-Assy, Glove Compartment Door[11.2001 - 07.2002] MCX20 |
55054-AC021 |
US $23.88 |
||
|
55404C
|
55404C
55404-AC060 Panel Sub-Assy, Instrument Cluster Finish, No.2[02.2000 - 07.2002] MCX20 |
55404-AC060 |
US $71.78 |
||
|
55406E
|
55406E
55406-07020 Insert Sub-Assy, Instrument Panel, Lower Lh[02.2000 - 07.2002] MCX20 |
55406-07020 |
US $53 |
||
|
55407C
|
55407C
55407-AC010-E0 Cover Sub-Assy, Instrument, Lower[02.2000 - 07.2002] MCX20..4HC SANDAL WOOD,TRIM0# |
55407-AC010-E0 |
US $16.89 |
||
|
55421B
|
55421B
55421-AC010 Panel, Instrument Cluster Finish, Upper[02.2000 - 07.2002] MCX20 |
55421-AC010 |
US $100.46 |
||
|
55421B
|
55421B
55421-AC020 Panel, Instrument Cluster Finish, Upper[07.2002 - 01.2003] MCX20 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
55421-AC020 |
US $100.46 |
||
|
55422A
|
55422A
55422-AC020 Panel, Instrument Cluster Finish, Lower[02.2000 - 07.2002] MCX20 |
55422-AC020 |
US $44.55 |
||
|
55432A
|
55432A
55302-07010-A0 Panel, Instrument Panel Finish, Lower Rh[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55302-07010-A0 |
US $160.16 |
||
|
55432A
|
55432A
55302-07010-E0 Panel, Instrument Panel Finish, Lower Rh[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55302-07010-E0 |
US $160.16 |
||
|
55433C
|
55433C
55303-AC020-A0 Panel, Instrument Panel Finish, Lower Lh[02.2000 - 11.2001] MCX20 IVORY,TRIM0# |
55303-AC020-A0 |
US $372.74 |
||
| replacement | |||||
|
55433C
|
55433C
55303-AC021-A0 Panel, Instrument Panel Finish, Lower Lh[02.2000 - 11.2001] MCX20 IVORY,TRIM0# |
55303-AC021-A0 |
US $371.28 |
||
|
55433C
|
55433C
55303-AC021-A0 Panel, Instrument Panel Finish, Lower Lh[11.2001 - 07.2002] MCX20 IVORY,TRIM0# |
55303-AC021-A0 |
US $371.28 |
||
|
55433C
|
55433C
55303-AC021-E0 Panel, Instrument Panel Finish, Lower Lh[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55303-AC021-E0 |
US $371.28 |
||
|
55434B
|
55434B
55044-07030-A0 Panel, Instrument Panel Finish, Lower Center[02.2000 - 07.2002] MCX20..4HC IVORY,TRIM0# |
55044-07030-A0 |
US $160.16 |
||
|
55434B
|
55434B
55044-07030-E0 Panel, Instrument Panel Finish, Lower Center[07.2002 - 01.2003] MCX20..4HC FAWN,TRIM4# |
55044-07030-E0 |
US $160.16 |
||
|
55436A
|
55436A
55436-AC021 Panel, Instrument Panel Finish, End Lh[02.2000 - 07.2002] MCX20 |
55436-AC021 |
US $9.61 |
||
|
55445B
|
55445B
55445-33040-C0
Plate, Instrument Panel Finish (Black)
[02.2000 - 07.2002] MCX20 BLACK,TRIM0# |
55445-33040-C0 |
— | ||
| replacement | |||||
|
55445B
|
55445B
55445-30220-C0 Plate, Instrument Panel Finish (Black)[02.2000 - 07.2002] MCX20 BLACK,TRIM0# |
55445-30220-C0 |
US $4.72 |
||
|
55446A
|
55446A
55446-07020-A0 Base, Switch Hole, No.1[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55446-07020-A0 |
US $16.60 |
||
|
55446A
|
55446A
55446-07020-E0
Base, Switch Hole, No.1
[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55446-07020-E0 |
— | ||
|
55475D
|
55475D
55475-07020 Retainer, Instrument Panel Finish Panel, No.6[02.2000 - 07.2002] MCX20 |
55475-07020 |
US $7.72 |
||
|
55525
|
55525
55510-AC010 Cover, Speaker Hole, No.1[02.2000 - 07.2000] MCX20 |
55510-AC010 |
US $16.16 |
||
| replacement | |||||
|
55525
|
55525
55510-AC011 Cover, Speaker Hole, No.1[02.2000 - 07.2000] MCX20 |
55510-AC011 |
US $17.47 |
||
|
55525
|
55525
55510-AC011 Cover, Speaker Hole, No.1[07.2000 - 07.2002] MCX20 |
55510-AC011 |
US $17.47 |
||
|
55535B
|
55535B
55530-AC010 Cover, Speaker Hole, No.2[02.2000 - 07.2000] MCX20 |
55530-AC010 |
US $16.16 |
||
| replacement | |||||
|
55535B
|
55535B
55530-AC011 Cover, Speaker Hole, No.2[02.2000 - 07.2000] MCX20 |
55530-AC011 |
US $16.16 |
||
|
55535B
|
55535B
55530-AC011 Cover, Speaker Hole, No.2[07.2000 - 07.2002] MCX20 |
55530-AC011 |
US $16.16 |
||
|
55539C
|
55539C
55539-20080-A0 Cover, Spare Switch Hole[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55539-20080-A0 |
US $5.82 |
||
| replacement | |||||
|
55539C
|
55539C
55539-32010-C0 Cover, Cooler Switch Hole (BLACK)[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55539-32010-C0 |
from US $3.10 |
||
|
55539C
|
55539C
55539-20080-E3 Cover, Spare Switch Hole[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55539-20080-E3 |
US $5.82 |
||
| replacement | |||||
|
55539C
|
55539C
55539-32010-C0 Cover, Cooler Switch Hole (BLACK)[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55539-32010-C0 |
from US $3.10 |
||
|
55545
|
55545
55540-07010-A0 Cover, Fuse Box Opening[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55540-07010-A0 |
US $19.80 |
||
|
55545
|
55545
55540-07010-E0 Cover, Fuse Box Opening[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55540-07010-E0 |
US $19.80 |
||
|
55565
|
55565
55565-22020-A1 Handle, Glove Compartment Door Lock[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55565-22020-A1 |
US $3.35 |
||
| replacement | |||||
|
55565
|
55565
55565-22020-C0
Handle, Glove Compartment Door Lock
[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55565-22020-C0 |
— | ||
|
55565
|
55565
55565-22020-E7 Handle, Glove Compartment Door Lock[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55565-22020-E7 |
US $3.35 |
||
| replacement | |||||
|
55565
|
55565
55565-22020-C0
Handle, Glove Compartment Door Lock
[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55565-22020-C0 |
— | ||
|
55568B
|
55568B
55568-AC010 Plate, Glove Compartment Door Finish[02.2000 - 07.2002] MCX20 |
55568-AC010 |
US $14.71 |
||
|
55569
|
55569
55569-22030-A1 Cover, Glove Compartment Door Lock[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55569-22030-A1 |
US $4.22 |
||
| replacement | |||||
|
55569
|
55569
55569-22030-C0
Cover, Glove Compartment Door Lock
[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55569-22030-C0 |
— | ||
|
55569
|
55569
55569-22030-E7 Cover, Glove Compartment Door Lock[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55569-22030-E7 |
US $4.22 |
||
| replacement | |||||
|
55569
|
55569
55569-22030-C0
Cover, Glove Compartment Door Lock
[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55569-22030-C0 |
— | ||
|
55574
|
55574
55574-01010 Shaft, Glove Compartment Door Hinge[02.2000 - 07.2002] MCX20 |
55574-01010 |
US $3.20 |
||
|
55607
|
55607
55607-AC040 Cover Sub-Assy, Instrument Panel Under, No.2[02.2000 - 07.2002] MCX20 |
55607-AC040 |
US $58.39 |
||
|
55650
|
55650
55650-07010-A0 Register Assy, Instrument Panel, No.1[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
55650-07010-A0 |
US $90.27 |
||
|
55650
|
55650
55650-07010-E0 Register Assy, Instrument Panel, No.1[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
55650-07010-E0 |
US $90.27 |
||
|
55660
|
55660
55660-AC020 Register Assy, Instrument Panel, No.2[02.2000 - 07.2002] MCX20 |
55660-AC020 |
US $147.06 |
||
|
55981
|
55981
55981-AC030 Garnish, Defroster Nozzle, No.1[02.2000 - 07.2002] MCX20 |
55981-AC030 |
US $45.57 |
||
|
9008411016
|
9008411016
90084-11016
New Genuine Part
|
90084-11016 |
— | ||
|
9008446028
|
9008446028
90084-46028 New Genuine Part |
90084-46028 |
US $1.46 |
||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.28 |
||
|
9015950082
|
9015950082
90159-50082 New Genuine Part |
90159-50082 |
US $2.08 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9046706091
|
9046706091
90467-06091 Clip(For Front Floor Carpet) |
90467-06091 |
US $1.44 |
||
|
9046804152
|
9046804152
90468-04152 DASH BOARD CLIPS |
90468-04152 |
US $2.56 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
from US $0.90 |
||
|
9046804175
|
9046804175
90468-04175 Retainer, Side Defroster |
90468-04175 |
US $0.58 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9054105020
|
9054105020
90541-05020 Cushion(For Glove Compartment) |
90541-05020 |
from US $0.87 |
||
|
9166540618
|
9166540618
91665-40618
New Genuine Part
|
91665-40618 |
— | ||
| replacement | |||||
|
9166540618
|
9166540618
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.12 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
