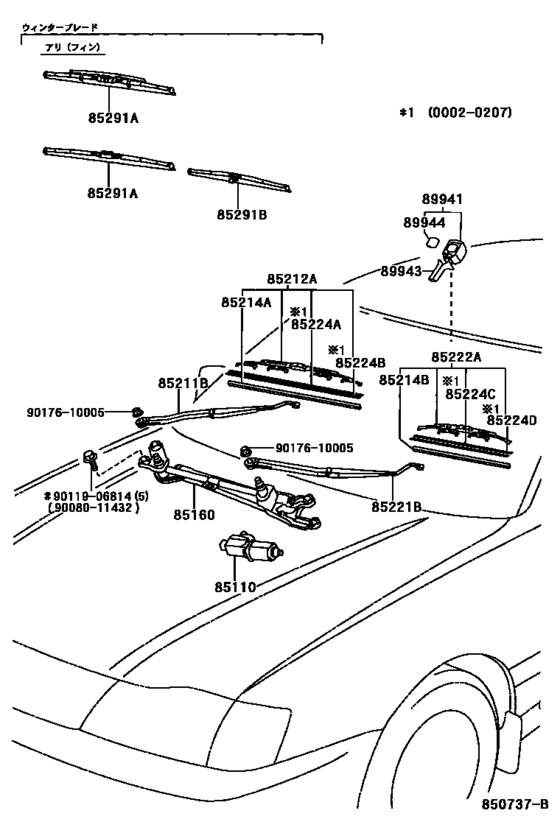

Windshield Wiper ([02.2000 - ] (0002- )) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-07040 Motor Assy, Windshield Wiper[02.2000 - 07.2002] MCX20 |
85110-07040 |
US $355.26 |
||
|
85160
|
85160
85150-07040 Link Assy, Windshield Wiper[02.2000 - 07.2002] MCX20 |
85150-07040 |
US $151.42 |
||
|
85211B
|
85211B
85211-07040 Arm, Front Wiper, Rh[02.2000 - 07.2002] MCX20 |
85211-07040 |
US $71.34 |
||
|
85212A
|
85212A
85212-07040 Blade, Fr Wiper, Rh[02.2000 - 07.2002] MCX20 |
85212-07040 |
US $62.03 |
||
|
85214A
|
85214A
85214-07040 Rubber, Wiper, Rh[02.2000 - 07.2002] MCX20 |
85214-07040 |
from US $13.69 |
||
|
85214B
|
85214B
85214-07050 Rubber, Wiper, Lh[02.2000 - 07.2002] MCX20 |
85214-07050 |
US $13.98 |
||
|
85221B
|
85221B
85221-07040 Arm, Front Wiper, Lh[02.2000 - 07.2002] MCX20 |
85221-07040 |
US $80.08 |
||
|
85222A
|
85222A
85222-07040 Blade, Fr Wiper, Lh[02.2000 - 07.2002] MCX20 |
85222-07040 |
US $30.43 |
||
|
85224A
|
85224A
85224-07040 Plate, Wiper Rubber Backing, No.1[02.2000 - 07.2002] MCX20 |
85224-07040 |
US $6.41 |
||
|
85224B
|
85224B
85224-07040 Plate, Wiper Rubber Backing, No.1[02.2000 - 07.2002] MCX20 |
85224-07040 |
US $6.41 |
||
|
85224C
|
85224C
85224-07050 Plate, Wiper Rubber Backing, No.3[02.2000 - 07.2002] MCX20 |
85224-07050 |
US $6.41 |
||
|
85224D
|
85224D
85224-07050 Plate, Wiper Rubber Backing, No.3[02.2000 - 07.2002] MCX20 |
85224-07050 |
US $6.41 |
||
|
85291A
|
85291A
85291-13030 Blade, Front Wiper, Winter, Rh[02.2000 - 03.2000] MCX20 |
85291-13030 |
US $106.29 |
||
| replacement | |||||
|
85291A
|
85291A
85291-24090 Blade, Front Wiper, Winter, Rh[02.2000 - 03.2000] MCX20 |
85291-24090 |
US $51.72 |
||
|
85291A
|
85291A
85291-13040 Blade, Front Wiper, Winter, Rh[02.2000 - 07.2002] MCX20 ｱﾘ(ﾌｲﾝ) |
85291-13040 |
US $128.13 |
||
| replacement | |||||
|
85291A
|
85291A
85291-24100 Blade, Front Wiper, Winter, Rh[02.2000 - 07.2002] MCX20 ｱﾘ(ﾌｲﾝ) |
85291-24100 |
US $102.12 |
||
|
85291A
|
85291A
85291-41010 Blade, Front Wiper, Winter, Rh[03.2000 - 07.2002] MCX20 |
85291-41010 |
US $106.29 |
||
|
85291B
|
85291B
85291-41020 Blade, Front Wiper, Winter, Lh[03.2000 - 07.2002] MCX20 |
85291-41020 |
US $57.66 |
||
| replacement | |||||
|
85291B
|
85291B
85291-44080 Blade Assy, Windshield Wiper[03.2000 - 07.2002] MCX20 |
85291-44080 |
from US $32.95 |
||
|
85291B
|
85291B
85291-60070 Blade Assy, Windshield Wiper[02.2000 - 03.2000] MCX20 |
85291-60070 |
US $32.67 |
||
|
89941
|
89941
89941-41010 Sensor, Rain[07.2002 - 01.2003] MCX20 |
89941-41010 |
US $222.77 |
||
|
89943
|
89943
89943-33010 Cover, Rain Sensor[07.2002 - 01.2003] MCX20 |
89943-33010 |
US $27.08 |
||
|
89944
|
89944
89944-33010 Tape, Rain Sensor[07.2002 - 01.2003] MCX20 |
89944-33010 |
from US $18.10 |
||
|
9008011432
|
9008011432
90080-11432
New Genuine Part
|
90080-11432 |
— | ||
|
9011906814
|
9011906814
90119-06814 BOLT WWASHER |
90119-06814 |
US $1.89 |
||
|
9017610005
|
9017610005
90176-10005 Nut (For Front Wiper Arm Setting) |
90176-10005 |
from US $0.99 |
||
