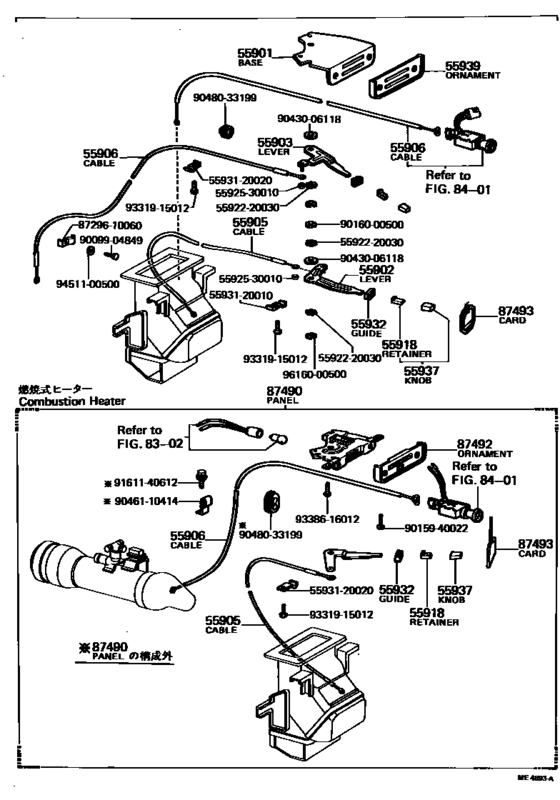

Heating & Air Conditioning - Control & Air Duct ([04.1969 - 10.1970] (6904-7010)) Diagram Toyota PUBLICA
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- KP30
- grade
- STD
- body
- SED
- ENGINE
- 2K
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 11.1975
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55901
|
55901
55901-10030
Base Sub-Assy, Heater Control
[04.1969 - 10.1970] KP3# |
55901-10030 |
— | ||
|
55901
|
55901
55901-10031
Base Sub-Assy, Heater Control
[10.1970 - 12.1971] KP3#,UP3# |
55901-10031 |
— | ||
|
55901
|
55901
55901-10060
Base Sub-Assy, Heater Control
[10.1973 - 11.1975] KP3#..DLX,HDX,STD,XL |
55901-10060 |
— | ||
|
55902
|
55902
55902-10010
Lever Sub-Assy, Defroster Control
[04.1969 - 10.1970] KP3#,UP3# |
55902-10010 |
— | ||
|
55902
|
55902
55902-10011
Lever Sub-Assy, Defroster Control
[10.1970 - 10.1973] KP3#,UP3# |
55902-10011 |
— | ||
|
55902
|
55902
55914-10040
Lever Sub-Assy, Defroster Control
[10.1973 - 03.1974] KP3#..DLX,HDX,STD,XL |
55914-10040 |
— | ||
|
55902
|
55902
55914-10041
Lever Sub-Assy, Defroster Control
[03.1974 - 08.1988] KP3#,50..DLX,HDX,STD,XL |
55914-10041 |
— | ||
|
55903
|
55903
55903-10010
Lever Sub-Assy, Heater Control
[04.1969 - 10.1970] KP3#,UP3# |
55903-10010 |
— | ||
|
55903
|
55903
55903-10011
Lever Sub-Assy, Heater Control
[10.1970 - 08.1988] KP3#,50,UP3# |
55903-10011 |
— | ||
|
55905
|
55905
55905-10030
Cable Sub-Assy, Defrost Control
[04.1969 - 10.1970] KP3# |
55905-10030 |
— | ||
|
55905
|
55905
55905-10031
Cable Sub-Assy, Defrost Control
[10.1970 - 10.1973] KP3# |
55905-10031 |
— | ||
|
55905
|
55905
55905-10060
Cable Sub-Assy, Defrost Control
[04.1969 - 10.1970] KP3# HEAVY DUTY HEATER |
55905-10060 |
— | ||
|
55905
|
55905
55905-10090 Cable Sub-Assy, Defrost ControlDEFROST CONTROL [10.1973 - 08.1988] KP3#,50..DLX,HDX,STD,XL |
55905-10090 |
US $4.08 |
||
|
55906
|
55906
55906-10030
Cable Sub-Assy, Heater Control
[04.1969 - 10.1970] KP3# |
55906-10030 |
— | ||
|
55906
|
55906
55906-10031
Cable Sub-Assy, Heater Control
[10.1970 - 11.1975] KP3# |
55906-10031 |
— | ||
|
55906
|
55906
55906-10060
Cable Sub-Assy, Heater Control
[04.1969 - 10.1970] KP3# HEAVY DUTY HEATER |
55906-10060 |
— | ||
|
55918
|
55918
55918-22010 Retainer, Air Damper Control Lever Knob[04.1969 - 12.1971] KP3#,UP3# |
55918-22010 |
US $4.22 |
||
|
55932
|
55932
55932-20020
Guide, Lever, No.1
[04.1969 - 10.1970] KP3#,UP3# |
55932-20020 |
— | ||
|
55932
|
55932
55932-20040 Guide, Lever, No.1LEVER, NO.1 [10.1970 - 08.1988] KP3#,50,UP3# |
55932-20040 |
US $3.20 |
||
|
55937
|
55937
55937-22901 Knob, Heater Control LeverHEATER CONTROL LEVER [04.1969 - 08.1988] KP3#,50,UP3# |
55937-22901 |
US $5.39 |
||
|
55939
|
55939
55939-10010
Ornament, Heater Control
[04.1969 - 10.1970] KP3#,UP3# |
55939-10010 |
— | ||
|
5592220030
|
5592220030
55922-20030 Bracket, Heater Control Base |
55922-20030 |
US $3.49 |
||
|
5592530010
|
5592530010
55925-30010 Retainer, Cowl Ventilator Control Wire PinCOWL VENTILATOR CONTROL WIRE PIN |
55925-30010 |
US $2.62 |
||
| replacement | |||||
|
5592530010
|
5592530010
90183-04072
Retainer, Cowl Ventilator Control Wire Pin
|
90183-04072 |
— | ||
|
5593120010
|
5593120010
55931-20010
Clamp, Heater Control Wire
|
55931-20010 |
— | ||
|
5593120020
|
5593120020
55931-20020 Clamp, Heater Control Wire |
55931-20020 |
US $3.93 |
||
|
8729610060
|
8729610060
87296-10060
Wiring, Heater, No.2 (for Switch To Heater)
|
87296-10060 |
— | ||
|
9009904849
|
9009904849
90099-04849
New Genuine Part
|
90099-04849 |
— | ||
|
9015940022
|
9015940022
90159-40022
New Genuine Part
|
90159-40022 |
— | ||
|
9016000500
|
9016000500
90160-00500
New Genuine Part
|
90160-00500 |
— | ||
|
9043006118
|
9043006118
90430-06118
New Genuine Part
|
90430-06118 |
— | ||
|
9046110414
|
9046110414
90461-10414
New Genuine Part
|
90461-10414 |
— | ||
|
9048033199
|
9048033199
90480-33199
Grommet, Choke Cable
|
90480-33199 |
— | ||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9338616012
|
9338616012
93386-16012 New Genuine Part |
93386-16012 |
US $1.02 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9616000500
|
9616000500
96160-00500 Ring, E(For Over Center Lever) |
96160-00500 |
from US $0.82 |
||
