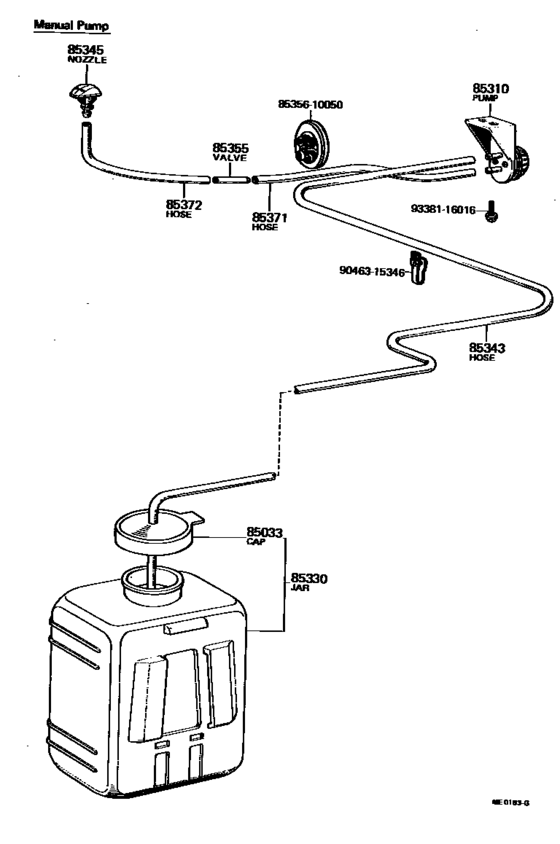

Windshield Washer ([04.1969 - 10.1974] (6904-7410)S,STD) Diagram Toyota PUBLICA
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- KP30
- grade
- STD
- body
- SED
- ENGINE
- 2K
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 11.1975
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85332-10060
Cap Assy, Windshield Washer
[10.1974 - 11.1975] KP3# |
85332-10060 |
— | ||
| replacement | |||||
|
85033
|
85033
85332-10061
Cap Assy, Windshield Washer
[10.1974 - 11.1975] KP3# |
85332-10061 |
— | ||
|
85033
|
85033
85332-11010
Cap Assy, Windshield Washer
[04.1969 - 10.1970] KP3#,UP3#..STD |
85332-11010 |
— | ||
|
85033
|
85033
85332-11011
Cap Assy, Windshield Washer
[10.1970 - 12.1971] KP30,36,UP3#..STD |
85332-11011 |
— | ||
|
85033
|
85033
85332-11012
Cap Assy, Windshield Washer
[01.1972 - 10.1974] KP30,31,36..S,STD |
85332-11012 |
— | ||
|
85310
|
85310
85039-11010
Motor And Pump Assy, Windshield Washer
[04.1969 - 10.1970] KP3#,UP3#..STD |
85039-11010 |
— | ||
| replacement | |||||
|
85310
|
85310
85039-11011 Motor And Pump Assy, Windshield WasherWINDSHIELD WASHER [04.1969 - 10.1970] KP3#,UP3#..STD |
85039-11011 |
US $42.66 |
||
|
85310
|
85310
85039-11011 Motor And Pump Assy, Windshield WasherWINDSHIELD WASHER [10.1970 - 10.1974] KP30,31,36,UP3#..S,STD |
85039-11011 |
US $42.66 |
||
|
85310
|
85310
85310-10060 Motor And Pump Assy, Windshield WasherWINDSHIELD WASHER [10.1974 - 11.1975] KP3# |
85310-10060 |
US $123.76 |
||
| replacements | |||||
|
85310
|
85310
85310-95700 Motor And Pump Assy, Windshield Washer[10.1974 - 11.1975] KP3# |
85310-95700 |
from US $144.32 |
||
|
85310
|
85310
85330-10072
Jar Assy, Windshield Washer
[10.1974 - 11.1975] KP3# |
85330-10072 |
— | ||
|
85330
|
85330
85330-10070
Jar Assy, Windshield Washer
[10.1974 - 11.1975] KP3# |
85330-10070 |
— | ||
|
85330
|
85330
85330-11010
Jar Assy, Windshield Washer
[04.1969 - 10.1974] KP30,31,36,UP3#..S,STD |
85330-11010 |
— | ||
|
85343
|
85343
85372-10010 Hose, Windshield Washer SuctionWINDSHIELD WASHER SUCTION [04.1969 - 10.1970] KP3#..STD L=1700 |
85372-10010 |
US $8.59 |
||
| replacement | |||||
|
85343
|
85343
90446-06006 Hose, Windshield Washer (From Motor To Joint)[04.1969 - 10.1970] KP3#..STD L=1700 |
90446-06006 |
from US $6.19 |
||
|
85343
|
85343
90446-06279
Hose, Windshield Washer Suction
[10.1970 - 10.1974] KP30,31,36..S,STD L=1700 |
90446-06279 |
— | ||
|
85345
|
85345
85035-10060
Nozzle, Windshield Washer
[04.1969 - 12.1971] KP3#,UP3# |
85035-10060 |
— | ||
|
85345
|
85345
85035-10061
Nozzle, Windshield Washer
[01.1972 - 08.1988] KP3#,50 |
85035-10061 |
— | ||
| replacement | |||||
|
85345
|
85345
85035-60050 Nozzle, Windshield WasherWINDSHIELD WASHER [01.1972 - 08.1988] KP3#,50 |
85035-60050 |
from US $17.92 |
||
|
85355
|
85355
85031-11010 Valve, Windshield Washer HoseWINDSHIELD WASHER HOSE [04.1969 - 10.1974] KP30,31,36,UP3#..S,STD |
85031-11010 |
US $10.19 |
||
| replacement | |||||
|
85355
|
85355
85031-30010 Valve Sub-Assy, Washer[04.1969 - 10.1974] KP30,31,36,UP3#..S,STD |
85031-30010 |
from US $1.54 |
||
|
85371
|
85371
85344-11010 Hose, Windshield Washer (From Motor To Joint)WINDSHIELD WASHER (FROM MOTOR TO JOINT) [04.1969 - 10.1974] KP30,31,36,UP3#..S,STD Ｌ＝１００ |
85344-11010 |
US $8.30 |
||
| replacement | |||||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[04.1969 - 10.1974] KP30,31,36,UP3#..S,STD Ｌ＝１００ |
90446-06013 |
from US $0.70 |
||
|
85371
|
85371
90446-06055
Hose, Windshield Washer (From Motor To Joint)
[10.1974 - 11.1975] KP3# Ｌ＝１３００ |
90446-06055 |
— | ||
| replacement | |||||
|
85371
|
85371
90446-06006 Hose, Windshield Washer (From Motor To Joint)[10.1974 - 11.1975] KP3# Ｌ＝１３００ |
90446-06006 |
from US $6.19 |
||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[04.1969 - 10.1970] KP3#,UP3#..STD 長さ＝４５０ |
90446-06013 |
from US $0.70 |
||
|
85372
|
85372
90446-06277 Hose, Windshield Washer (From Joint To Joint), No.1WINDSHIELD WASHER (FROM JOINT TO NOZZLE) [10.1970 - 10.1974] KP30,31,36..S,STD ＊Ｈ，L＝７５０ |
90446-06277 |
US $3.35 |
||
| replacement | |||||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[10.1970 - 10.1974] KP30,31,36..S,STD ＊Ｈ，L＝７５０ |
90446-06013 |
from US $0.70 |
||
|
8535610050
|
8535610050
85356-10050
Packing (for Windshield Washer Jar)
|
85356-10050 |
— | ||
|
9046315346
|
9046315346
90463-15346
New Genuine Part
|
90463-15346 |
— | ||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $3.05 |
||
