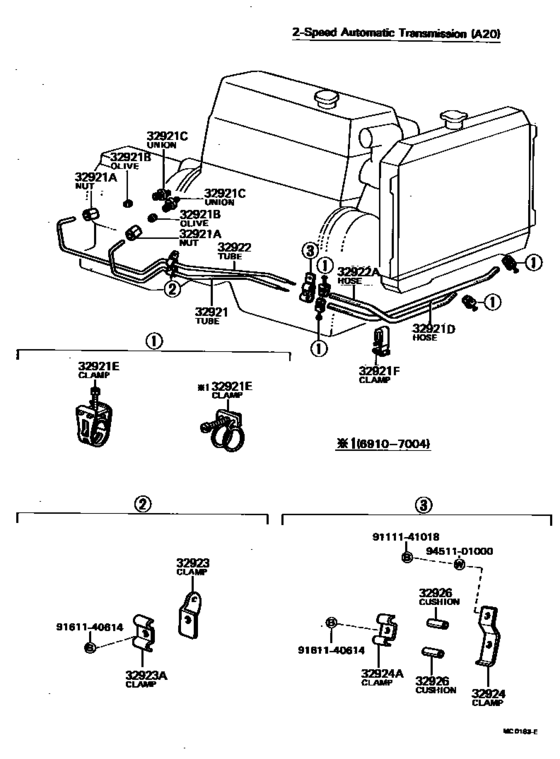

Oil Cooler & Tube (Atm) ([10.1969 - 11.1975] (6910-7511)2FC) Diagram Toyota PUBLICA
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- KP30
- grade
- DLX
- body
- SED
- ENGINE
- 2K
- TRANSMISSION
- ATM
- Model
- PUBLICA
- From
- 10.1969
- To
- 11.1975
- Gear Shift Type
- 2FC
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-12011
Tube, Oil Cooler Inlet, No.1
[10.1969 - 11.1975] KP30,31..2FC |
32921-12011 |
— | ||
|
32921A
|
32921A
90402-13041 Nut, Union(For Fuel Pipe)[10.1969 - 11.1975] KP30,31..2FC |
90402-13041 |
US $3.76 |
||
|
32921B
|
32921B
96395-71400 Olive(For Fuel Pipe)[10.1969 - 11.1975] KP30,31..2FC |
96395-71400 |
US $3.76 |
||
|
32921C
|
32921C
90404-13105
Bolt, Union(For Oil Filter Inlet Pipe)
[10.1969 - 11.1975] KP30,31..2FC |
90404-13105 |
— | ||
|
32921D
|
32921D
90445-14238 Hose(For Oil Cooler Inlet)[10.1969 - 11.1975] KP30,31..2FC |
90445-14238 |
US $15.72 |
||
| replacement | |||||
|
32921D
|
32921D
90445-14514
Hose(For Oil Cooler Outlet)
[10.1969 - 11.1975] KP30,31..2FC |
90445-14514 |
— | ||
|
32921E
|
32921E
90460-01075 Clamp, Hose(For Oil Cooler)HOSE(FOR OIL COOLER) [04.1970 - 11.1975] KP30,31..2FC |
90460-01075 |
US $7.28 |
||
| replacement | |||||
|
32921E
|
32921E
90460-20004 Clamp, Hose(For Oil Cooler)[04.1970 - 11.1975] KP30,31..2FC |
90460-20004 |
US $3.14 |
||
|
32921E
|
32921E
90460-14045 Clamp, Hose(For Oil Cooler)[10.1969 - 04.1970] KP30..2FC |
90460-14045 |
US $5.82 |
||
| replacement | |||||
|
32921E
|
32921E
90460-20004 Clamp, Hose(For Oil Cooler)[10.1969 - 04.1970] KP30..2FC |
90460-20004 |
US $3.14 |
||
|
32921F
|
32921F
90463-06167 Clamp(For Oil Cooler Tube)[10.1969 - 04.1972] KP30,31..2FC |
90463-06167 |
US $2.77 |
||
| replacement | |||||
|
32921F
|
32921F
90463-06205
Clamp(For Oil Cooler Tube)
[10.1969 - 04.1972] KP30,31..2FC |
90463-06205 |
— | ||
|
32921F
|
32921F
90463-06205
Clamp(For Oil Cooler Tube)
[04.1972 - 11.1975] KP30..2FC |
90463-06205 |
— | ||
|
32922
|
32922
32922-12011
Tube, Oil Cooler Outlet, No.1
[10.1969 - 11.1975] KP30,31..2FC |
32922-12011 |
— | ||
|
32922A
|
32922A
90445-14237
Hose(For Oil Cooler Outlet)
[10.1969 - 11.1975] KP30,31..2FC |
90445-14237 |
— | ||
|
32923
|
32923
32923-12010
Clamp, Automatic Transmission Oil Cooler Tube
[10.1969 - 06.1971] KP30,31..2FC |
32923-12010 |
— | ||
| replacement | |||||
|
32923
|
32923
32923-12021
Clamp, Automatic Transmission Oil Cooler Tube
[10.1969 - 06.1971] KP30,31..2FC |
32923-12021 |
— | ||
|
32923
|
32923
32923-12011 Clamp, Automatic Transmission Oil Cooler Tube[06.1971 - 10.1971] KP30,31..2FC |
32923-12011 |
US $4.37 |
||
| replacement | |||||
|
32923
|
32923
32923-12021
Clamp, Automatic Transmission Oil Cooler Tube
[06.1971 - 10.1971] KP30,31..2FC |
32923-12021 |
— | ||
|
32923
|
32923
32923-12012
Clamp, Automatic Transmission Oil Cooler Tube
[10.1971 - 11.1975] KP30,31..2FC |
32923-12012 |
— | ||
| replacement | |||||
|
32923
|
32923
32923-12021
Clamp, Automatic Transmission Oil Cooler Tube
[10.1971 - 11.1975] KP30,31..2FC |
32923-12021 |
— | ||
|
32923A
|
32923A
90462-12084
Clamp, Automatic Transmission Oil Cooler Tube
[10.1969 - 11.1975] KP30,31..2FC |
90462-12084 |
— | ||
|
32924
|
32924
32924-12010 Clamp, Oil Cooler Tube, No.2OIL COOLER TUBE, NO.2 [10.1969 - 11.1975] KP30,31..2FC |
32924-12010 |
US $7.72 |
||
| replacement | |||||
|
32924
|
32924
32924-12021
Clamp, Oil Cooler Tube, No.2
[10.1969 - 11.1975] KP30,31..2FC |
32924-12021 |
— | ||
|
32924A
|
32924A
90462-12085 Clamp, Automatic Transmission Oil Cooler Tube[10.1969 - 11.1975] KP30,31..2FC |
90462-12085 |
US $2.91 |
||
|
32926
|
32926
32926-30011 Cushion, Oil Cooler Tube(Atm)[10.1969 - 11.1975] KP30,31..2FC 長さ＝２５，内径＝８ |
32926-30011 |
US $1.89 |
||
|
9111141018
|
9111141018
91111-41018 New Genuine Part |
91111-41018 |
US $2.18 |
||
| replacement | |||||
|
9111141018
|
9111141018
91112-61018 Bolt, Hexagon(For Drive Plate Setting) |
91112-61018 |
US $3.79 |
||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
