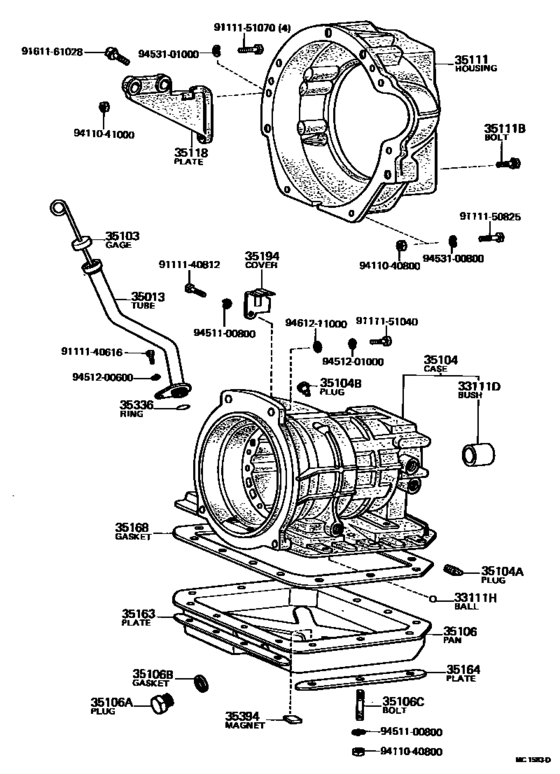

Transmission Case & Oil Pan (Atm) ([10.1969 - 11.1975] (6910-7511)2FC ; (7610-7802)2FC) Diagram Toyota PUBLICA
- Year
- 1972 - 1975
- Sales region
- Japan
- Frame
- KP30
- grade
- HDX
- body
- SED
- ENGINE
- 2K
- TRANSMISSION
- ATM
- Model
- PUBLICA
- From
- 01.1972
- To
- 11.1975
- Gear Shift Type
- 2FC
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111D
|
33111D
90999-73039 Bush, Bimetal Formed(For Transmission Case)BIMETAL FORMED(FOR TRANSMISSION CASE) [10.1969 - 11.1975] KP30,31..2FC |
90999-73039 |
US $10.05 |
||
|
33111H
|
33111H
90360-06004 Ball, Detent(For Gear Shift Head No.4)[10.1969 - 11.1975] KP30,31..2FC |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
33111H
|
33111H
90080-36191
Ball, Check Valve
[10.1969 - 11.1975] KP30,31..2FC |
90080-36191 |
— | ||
|
35013
|
35013
35013-10011
Tube Sub-Assy, Transmission Oil Filler
[01.1972 - 11.1975] KP30..2FC |
35013-10011 |
— | ||
|
35103
|
35103
35103-12012 Gage Sub-Assy, Transmission Oil LevelTRANSMISSION OIL LEVEL [10.1969 - 11.1975] KP30,31..2FC |
35103-12012 |
US $15.87 |
||
|
35104
|
35104
35104-12010
Case Sub-Assy, Automatic Transmission
[10.1969 - 11.1975] KP30..2FC |
35104-12010 |
— | ||
|
35104A
|
35104A
90345-51025 Plug, W/head Taper Screw, No.2[10.1969 - 11.1975] KP30,31..2FC |
90345-51025 |
US $3.76 |
||
|
35104B
|
35104B
90930-03001 Plug, Breather[10.1969 - 11.1975] KP30,31..2FC |
90930-03001 |
US $4.02 |
||
|
35106
|
35106
35106-12011
Pan Sub-Assy, Automatic Transmission Oil
[10.1969 - 11.1975] KP30,31..2FC |
35106-12011 |
— | ||
|
35106A
|
35106A
90341-18057 Drain Plug (with Magnet)[10.1969 - 11.1975] KP30,31..2FC |
90341-18057 |
from US $6.27 |
||
|
35106B
|
35106B
12157-10010 Gasket (For Drain Plug)[10.1969 - 11.1975] KP30,31..2FC |
12157-10010 |
from US $0.72 |
||
|
35106C
|
35106C
90116-08037 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[10.1969 - 11.1975] KP30,31..2FC L=25,S=10&13 |
90116-08037 |
US $2.62 |
||
|
35111
|
35111
35111-12010
Housing, Automatic Transmission
[10.1969 - 04.1974] KP30,31..2FC |
35111-12010 |
— | ||
| replacements | |||||
|
35111
|
35111
11355-24040
Plate, Rear End
[10.1969 - 04.1974] KP30,31..2FC |
11355-24040 |
— | ||
|
35111
|
35111
33118-12050
Plate, Stiffener, Rh(Mtm)
[10.1969 - 04.1974] KP30,31..2FC |
33118-12050 |
— | ||
|
35111
|
35111
35111-12040 Housing, Automatic TransmissionAUTOMATIC TRANSMISSION [10.1969 - 04.1974] KP30,31..2FC |
35111-12040 |
US $257.71 |
||
|
35111
|
35111
94612-10800 Washer, Plate(For Repair Actuator Set)[10.1969 - 04.1974] KP30,31..2FC |
94612-10800 |
from US $0.82 |
||
|
35111
|
35111
35111-12040 Housing, Automatic TransmissionAUTOMATIC TRANSMISSION [04.1974 - 11.1975] KP30..2FC |
35111-12040 |
US $257.71 |
||
|
35111B
|
35111B
91619-61265 Bolt(For Transaxle & Engine Setting)[10.1969 - 11.1975] KP30,31..2FC ＊１２−１．２５ＰＸ６５−３０,*12-1.25PX65-30 |
91619-61265 |
US $4.12 |
||
|
35118
|
35118
33118-10010 Plate, Stiffener, Rh(Mtm)[04.1974 - 11.1975] KP30..2FC |
33118-10010 |
US $25.77 |
||
|
35118
|
35118
33118-12010
Plate, Stiffener, Rh(Mtm)
[10.1969 - 04.1974] KP30,31..2FC |
33118-12010 |
— | ||
|
35163
|
35163
35163-12010
Plate, Transmission Oil Pan Flange, No.1
[10.1969 - 11.1975] KP30,31..2FC |
35163-12010 |
— | ||
|
35164
|
35164
35164-12010
Plate, Transmission Oil Pan Flange, No.2
[10.1969 - 11.1975] KP30,31..2FC |
35164-12010 |
— | ||
|
35168
|
35168
35168-12010
Gasket, Automatic Transmission Oil Pan
[10.1969 - 11.1975] KP30,31..2FC |
35168-12010 |
— | ||
| replacement | |||||
|
35168
|
35168
35168-12011
Gasket, Automatic Transmission Oil Pan
[10.1969 - 11.1975] KP30,31..2FC |
35168-12011 |
— | ||
|
35194
|
35194
35194-12010
Cover, Transmission Case Dust
[10.1969 - 11.1975] KP30,31..2FC |
35194-12010 |
— | ||
|
35336
|
35336
90301-17006 Ring, O (For Transmission Oil Filler Tube)O (FOR TRANSMISSION OIL FILLER TUBE) [10.1969 - 11.1975] KP30,31..2FC |
90301-17006 |
US $7.72 |
||
|
35394
|
35394
35394-30010 Magnet, Oil Cleaner (For Transmission)[03.1971 - 08.1974] KP30,31..2FC |
35394-30010 |
US $5.53 |
||
| replacement | |||||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[03.1971 - 08.1974] KP30,31..2FC |
35394-30011 |
from US $5.43 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1974 - 11.1975] KP30..2FC |
35394-30011 |
from US $5.43 |
||
|
9111140616
|
9111140616
91111-40616 New Genuine Part |
91111-40616 |
US $2.18 |
||
| replacement | |||||
|
9111140616
|
9111140616
91111-50616 New Genuine Part |
91111-50616 |
US $1.51 |
||
|
9111140812
|
9111140812
91111-40812 Bolt (for Transmission Control Cable Bracket) |
91111-40812 |
US $2.48 |
||
| replacement | |||||
|
9111140812
|
9111140812
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9111150825
|
9111150825
91111-50825 Bolt(For Clutch Master Cylinder Setting) |
91111-50825 |
US $3.40 |
||
|
9111151040
|
9111151040
91111-51040 Shaft, Control Select Lever (For Column Shift) |
91111-51040 |
US $3.76 |
||
|
9111151070
|
9111151070
91111-51070 Shaft, Clutch Pedal |
91111-51070 |
US $2.18 |
||
| replacement | |||||
|
9111151070
|
9111151070
91111-61070
Shaft, Brake Pedal
|
91111-61070 |
— | ||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $3.05 |
||
