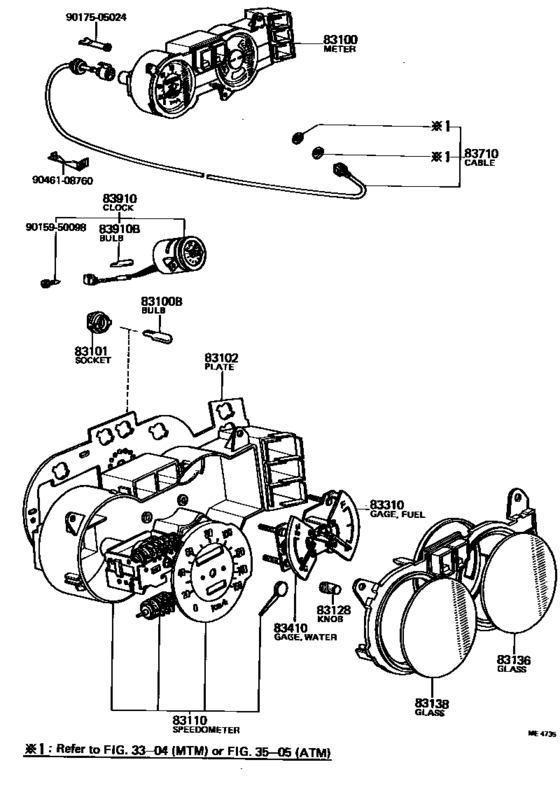

Meter ([01.1972 - ] (7201-7511)XL ; (7201- )DLX,HDX,STD) Diagram Toyota PUBLICA
- Year
- 1972 - 1975
- Sales region
- Japan
- Frame
- KP30
- grade
- HDX
- body
- SED
- ENGINE
- 2K
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 01.1972
- To
- 11.1975
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83100-10200
Meter Assy, Combination
[01.1972 - 10.1972] KP30..HDX |
83100-10200 |
— | ||
|
83100
|
83100
83100-10201
Meter Assy, Combination
[10.1972 - 04.1974] KP30..HDX |
83100-10201 |
— | ||
|
83100
|
83100
83100-10202
Meter Assy, Combination
[04.1974 - 11.1975] KP30,31..HDX,XL |
83100-10202 |
— | ||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1969 - 08.1988] KP3#,50,UP3# １２Ｖ ３．４Ｗ |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1969 - 08.1988] KP3#,50,UP3# １２Ｖ ３．４Ｗ |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-10010
Socket & Wire, Indicator Lamp
[01.1972 - 03.1980] KP3#,50 |
83101-10010 |
— | ||
| replacement | |||||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[01.1972 - 03.1980] KP3#,50 |
83101-14030 |
from US $1.54 |
||
|
83102
|
83102
83102-10060
Plate Sub-Assy, Combination Meter Circuit, No.1
[01.1972 - 10.1972] KP30,31..HDX,XL |
83102-10060 |
— | ||
| replacement | |||||
|
83102
|
83102
83102-10062
Plate Sub-Assy, Combination Meter Circuit, No.1
[01.1972 - 10.1972] KP30,31..HDX,XL |
83102-10062 |
— | ||
|
83102
|
83102
83102-10061
Plate Sub-Assy, Combination Meter Circuit, No.1
[10.1972 - 01.1973] KP30,31..HDX,XL |
83102-10061 |
— | ||
| replacement | |||||
|
83102
|
83102
83102-10062
Plate Sub-Assy, Combination Meter Circuit, No.1
[10.1972 - 01.1973] KP30,31..HDX,XL |
83102-10062 |
— | ||
|
83102
|
83102
83102-10062
Plate Sub-Assy, Combination Meter Circuit, No.1
[01.1973 - 11.1975] KP30,31..HDX,XL |
83102-10062 |
— | ||
|
83110
|
83110
83110-10190
Speedometer Assy
[01.1972 - 10.1972] KP30..HDX |
83110-10190 |
— | ||
|
83110
|
83110
83110-10191
Speedometer Assy
[10.1972 - 12.1973] KP30..HDX |
83110-10191 |
— | ||
|
83110
|
83110
83110-10192 Speedometer Assy[12.1973 - 04.1974] KP30..HDX |
83110-10192 |
US $353.81 |
||
| replacement | |||||
|
83110
|
83110
83110-10193
Speedometer Assy
[12.1973 - 04.1974] KP30..HDX |
83110-10193 |
— | ||
|
83110
|
83110
83110-10193
Speedometer Assy
[03.1975 - 11.1975] KP30,31..HDX,XL |
83110-10193 |
— | ||
|
83128
|
83128
83128-12140
Knob, Trip Counter
[12.1973 - 11.1975] KP30,31..HDX,SR,ST,XL |
83128-12140 |
— | ||
|
83136
|
83136
83138-12060
Glass, Gage Meter
[12.1973 - 11.1975] KP3#..DLX,HDX,STD,XL |
83138-12060 |
— | ||
|
83138
|
83138
83138-12060
Glass, Gage Meter
[12.1973 - 11.1975] KP3#..DLX,HDX,STD,XL |
83138-12060 |
— | ||
|
83310
|
83310
83310-10051 Gage Assy, Fuel ReceiverFUEL RECEIVER [10.1970 - 11.1975] KP3#..DLX,HDX,STD,XL |
83310-10051 |
US $38.44 |
||
|
83410
|
83410
83410-10011
Gage Assy, Water Temperature Receiver
[10.1970 - 11.1975] KP3#..DLX,HDX,STD,XL |
83410-10011 |
— | ||
|
83710
|
83710
83710-19155 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [01.1972 - 11.1975] KP3# L=1500 |
83710-19155 |
US $44.70 |
||
|
83910
|
83910
83910-19025
Clock Assy
[01.1972 - 10.1974] KP30,31..4F..(DLX,HDX,S,SR,ST,XL) |
83910-19025 |
— | ||
| replacement | |||||
|
83910
|
83910
83910-19026
Clock Assy
[01.1972 - 10.1974] KP30,31..4F..(DLX,HDX,S,SR,ST,XL) |
83910-19026 |
— | ||
|
83910
|
83910
83910-19026
Clock Assy
[10.1974 - 11.1975] KP30,31..4F..(DLX,HDX,SR,ST,XL) |
83910-19026 |
— | ||
|
83910B
|
83910B
99132-11034 Bulb, Position Indicator Lamp[01.1972 - 11.1975] KP30,31..4F..(DLX,HDX,S,SR,ST,XL) １２Ｖ ３．４Ｗ |
99132-11034 |
US $1.65 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9017505024
|
9017505024
90175-05024 New Genuine Part |
90175-05024 |
US $4.37 |
||
|
9046108760
|
9046108760
90461-08760 New Genuine Part |
90461-08760 |
US $2.18 |
||
