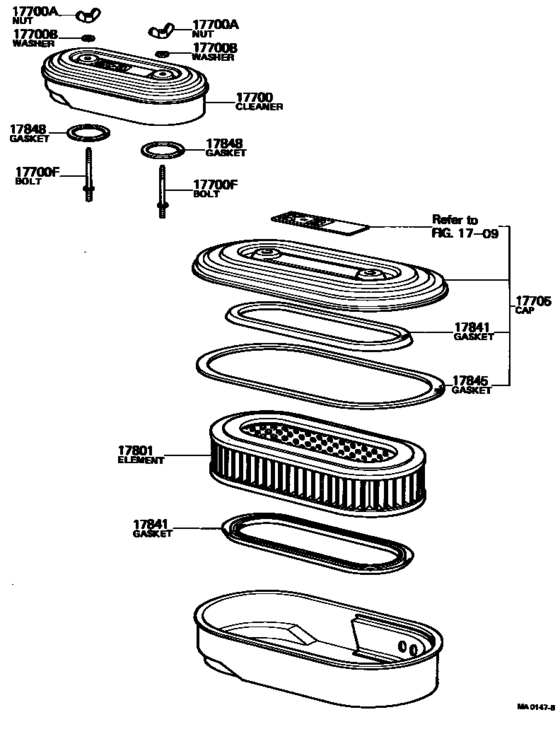

Air Cleaner ([04.1969 - 04.1970] (6904-7004)KB) Diagram Toyota PUBLICA
- Year
- 1969 - 1969
- Sales region
- Japan
- Frame
- KP30
- grade
- SL
- body
- SED
- ENGINE
- KB
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 08.1969
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-22060
Cleaner Assy, Air
[04.1969 - 04.1970] KB..KP30 |
17700-22060 |
— | ||
|
17700A
|
17700A
94270-00600
Nut, Wing(For Air Cleaner)
[04.1969 - 05.1973] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
94270-00600 |
— | ||
| replacement | |||||
|
17700A
|
17700A
94271-00600 Nut, Wing(For Air Cleaner)[04.1969 - 05.1973] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
94271-00600 |
US $1.61 |
||
|
17700B
|
17700B
94711-90600 Washer, Seal(For Air Cleaner)[04.1969 - 01.1971] 2UC..UP3#; KB,2K,3K..KP3# |
94711-90600 |
US $2.48 |
||
|
17700F
|
17700F
90116-06099 Bolt, Stud(For Air Cleaner Setting)[04.1969 - 05.1970] KB..KP30 L=95,S=12&28 |
90116-06099 |
US $1.75 |
||
| replacement | |||||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[04.1969 - 05.1970] KB..KP30 L=95,S=12&28 |
90116-06142 |
US $2.53 |
||
|
17705
|
17705
17705-22050
Cap Sub-Assy, Air Cleaner
[04.1969 - 04.1970] KB..KP30 |
17705-22050 |
— | ||
|
17801
|
17801
17801-35010
Element Sub-Assy, Air Cleaner Filter
[04.1969 - 04.1970] KB..KP30 |
17801-35010 |
— | ||
|
17841
|
17841
17841-35010
Gasket, Filter Element
[04.1969 - 04.1970] KB..KP30 |
17841-35010 |
— | ||
|
17845
|
17845
17845-42010
Gasket, Air Cleaner Cap
[04.1969 - 04.1970] KB..KP30 |
17845-42010 |
— | ||
|
17848
|
17848
90430-64139
Gasket, Air Cleaner To Carburetor
[04.1969 - 08.1972] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
90430-64139 |
— | ||
| replacement | |||||
|
17848
|
17848
90430-63187
Gasket, Air Cleaner To Carburetor
[04.1969 - 08.1972] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
90430-63187 |
— | ||
