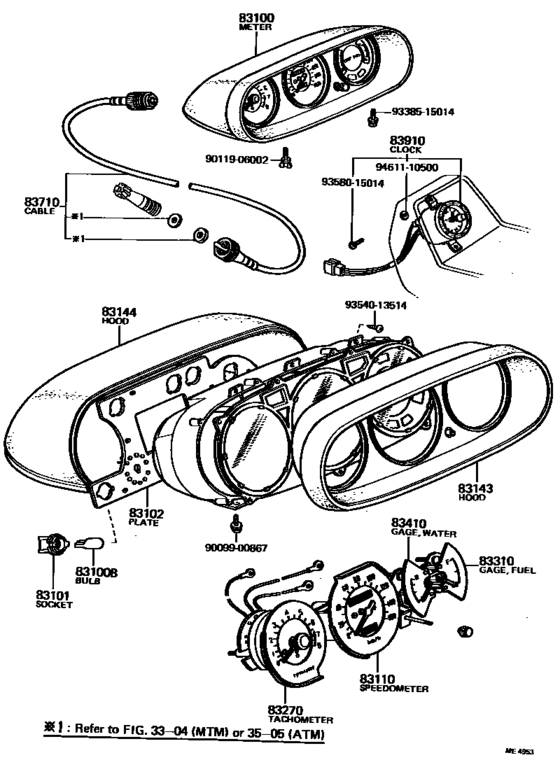

Meter ([04.1969 - 10.1970] (6904-7010)SL) Diagram Toyota PUBLICA
- Year
- 1969 - 1969
- Sales region
- Japan
- Frame
- KP30
- grade
- SL
- body
- SED
- ENGINE
- KB
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 08.1969
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83100-10170
Meter Assy, Combination
[04.1969 - 04.1970] KP30..SL |
83100-10170 |
— | ||
| replacement | |||||
|
83100
|
83100
83100-10171
Meter Assy, Combination
[04.1969 - 04.1970] KP30..SL |
83100-10171 |
— | ||
|
83100B
|
83100B
90981-11007 Bulb, Combination Meter, No.1SPEEDOMETER [04.1969 - 09.1969] KP3#,UP3# １２Ｖ ３Ｗ,12V 3W |
90981-11007 |
US $1.02 |
||
| replacement | |||||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[04.1969 - 09.1969] KP3#,UP3# １２Ｖ ３Ｗ,12V 3W |
99132-12034 |
from US $1.79 |
||
|
83101
|
83101
83101-12010
Socket, Ash Receptacle Lamp
[04.1969 - 12.1971] KP3#,UP3# |
83101-12010 |
— | ||
|
83102
|
83102
83102-10040
Plate Sub-Assy, Combination Meter Circuit, No.1
[04.1969 - 10.1970] KP30..SL |
83102-10040 |
— | ||
|
83110
|
83110
83110-10160
Speedometer Assy
[04.1969 - 10.1970] KP30..SL |
83110-10160 |
— | ||
|
83143
|
83143
83143-10170
Hood, Combination Meter, Front
[04.1969 - 04.1970] KP30..SL |
83143-10170 |
— | ||
|
83144
|
83144
83144-10170
Hood, Combination Meter, Rear
[04.1969 - 10.1970] KP30..SL |
83144-10170 |
— | ||
|
83270
|
83270
83270-10020
Tachometer Assy, Engine
[04.1969 - 10.1970] KP30..SL |
83270-10020 |
— | ||
|
83310
|
83310
83310-10060
Gage Assy, Fuel Receiver
[04.1969 - 10.1970] KP30..SL |
83310-10060 |
— | ||
|
83410
|
83410
83410-10020
Gage Assy, Water Temperature Receiver
[04.1969 - 10.1970] KP30..SL |
83410-10020 |
— | ||
|
83710
|
83710
83710-19085
Cable Assy, Speedometer Drive, No.1
[04.1969 - 10.1970] KP30..SL L=1600 |
83710-19085 |
— | ||
|
9009900867
|
9009900867
90099-00867
New Genuine Part
|
90099-00867 |
— | ||
|
9011906002
|
9011906002
90119-06002
New Genuine Part
|
90119-06002 |
— | ||
|
9338515014
|
9338515014
93385-15014 Screw(For Steering Tilt Lever) |
93385-15014 |
US $1.97 |
||
|
9354013514
|
9354013514
93540-13514 New Genuine Part |
93540-13514 |
US $1.46 |
||
|
9358015014
|
9358015014
93580-15014 New Genuine Part |
93580-15014 |
US $2.48 |
||
|
9461110500
|
9461110500
94611-10500 New Genuine Part |
94611-10500 |
US $2.06 |
||
