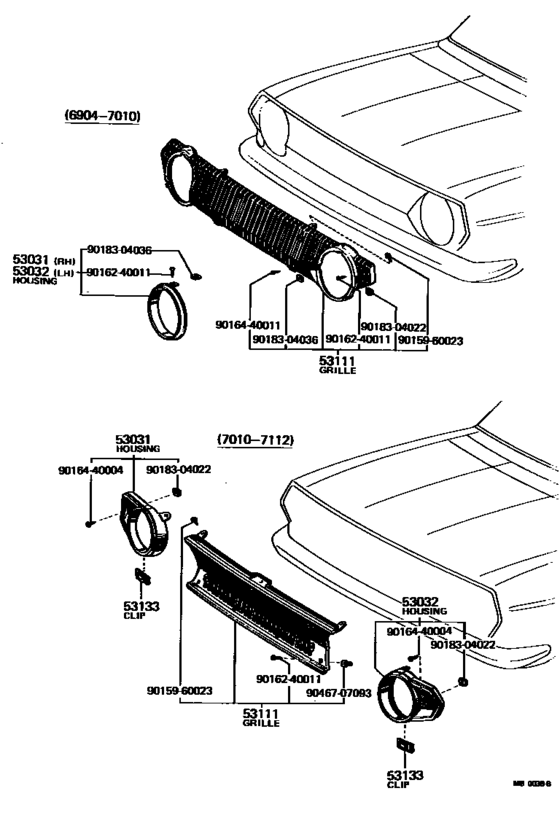

Radiator Grille ([04.1969 - 12.1971] (6904-7112)) Diagram Toyota PUBLICA
- Year
- 1969 - 1969
- Sales region
- Japan
- Frame
- KP30
- grade
- SL
- body
- SED
- ENGINE
- KB
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 08.1969
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53031
|
53031
53031-19015
Housing, Headlamp, Rh
[04.1969 - 10.1970] KP3#,UP3# |
53031-19015 |
— | ||
| replacements | |||||
|
53031
|
53031
93530-54010 SCREW[04.1969 - 10.1970] KP3#,UP3# |
93530-54010 |
from US $0.67 |
||
|
53031
|
53031
53031-10060
Housing, Headlamp, Rh
[04.1969 - 10.1970] KP3#,UP3# |
53031-10060 |
— | ||
|
53031
|
53031
90183-04036 New Genuine Part[04.1969 - 10.1970] KP3#,UP3# |
90183-04036 |
US $2.33 |
||
|
53032
|
53032
53031-19015
Housing, Headlamp, Rh
[04.1969 - 10.1970] KP3#,UP3# |
53031-19015 |
— | ||
| replacements | |||||
|
53032
|
53032
93530-54010 SCREW[04.1969 - 10.1970] KP3#,UP3# |
93530-54010 |
from US $0.67 |
||
|
53032
|
53032
53031-10060
Housing, Headlamp, Rh
[04.1969 - 10.1970] KP3#,UP3# |
53031-10060 |
— | ||
|
53032
|
53032
90183-04036 New Genuine Part[04.1969 - 10.1970] KP3#,UP3# |
90183-04036 |
US $2.33 |
||
|
53111
|
53111
53101-19105
Grille, Radiator
[04.1969 - 10.1970] KP30..SL |
53101-19105 |
— | ||
|
9015960023
|
9015960023
90159-60023
New Genuine Part
|
90159-60023 |
— | ||
|
9016240011
|
9016240011
90162-40011
New Genuine Part
|
90162-40011 |
— | ||
| replacement | |||||
|
9016240011
|
9016240011
93530-54010 SCREW |
93530-54010 |
from US $0.67 |
||
|
9016440004
|
9016440004
90164-40004 Screw, Headlamp |
90164-40004 |
US $1.75 |
||
| replacement | |||||
|
9016440004
|
9016440004
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.61 |
||
|
9016440011
|
9016440011
90164-40011 New Genuine Part |
90164-40011 |
US $2.33 |
||
| replacement | |||||
|
9016440011
|
9016440011
93540-54014 SCREW |
93540-54014 |
from US $0.95 |
||
|
9018304022
|
9018304022
90183-04022 Nut, Spring |
90183-04022 |
US $2.48 |
||
|
9018304036
|
9018304036
90183-04036 New Genuine Part |
90183-04036 |
US $2.33 |
||
|
9046707093
|
9046707093
90467-07093
New Genuine Part
|
90467-07093 |
— | ||
