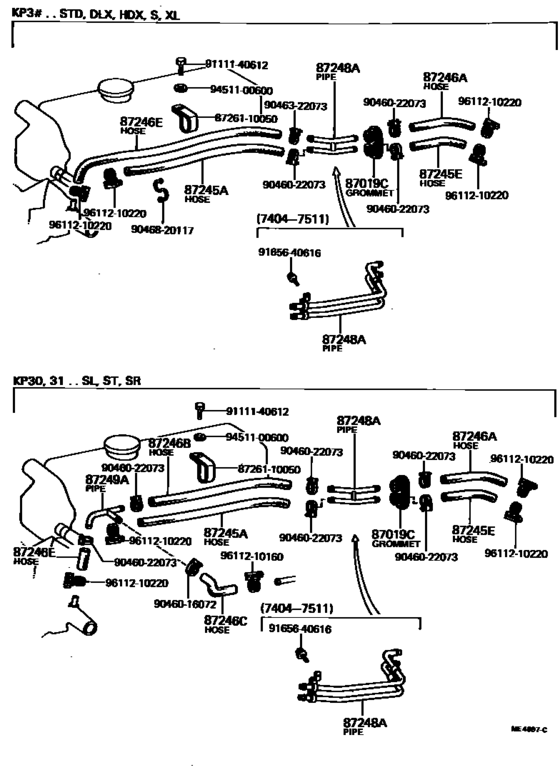

Heating & Air Conditioning - Water Piping ([04.1969 - 11.1975] (6904-7511)KP3#) Diagram Toyota PUBLICA
- Year
- 1972 - 1973
- Sales region
- Japan
- Frame
- KP31
- grade
- S
- body
- SED
- ENGINE
- 3K
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 01.1972
- To
- 10.1973
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01195
Grommet, Heater Hose
[04.1969 - 04.1974] KP3# |
90480-01195 |
— | ||
|
87245A
|
87245A
99551-20450 Hose, Heater Water, Inlet AHEATER WATER, INLET A [03.1971 - 03.1973] KP3# Ｌ＝４５０ |
99551-20450 |
US $3.35 |
||
| replacement | |||||
|
87245A
|
87245A
99556-20500
Hose, Rear Heater Water Inlet, B
[03.1971 - 03.1973] KP3# Ｌ＝４５０ |
99556-20500 |
— | ||
|
87245A
|
87245A
99552-20450
Hose, Heater Water, Inlet A
[03.1973 - 04.1974] KP3# 長さ＝４５０ |
99552-20450 |
— | ||
| replacement | |||||
|
87245A
|
87245A
99556-20500
Hose, Rear Heater Water Inlet, B
[03.1973 - 04.1974] KP3# 長さ＝４５０ |
99556-20500 |
— | ||
|
87245E
|
87245E
99551-20155 Hose, Heater Water, Inlet EHEATER WATER, INLET E [01.1972 - 03.1973] KP3# L=155 |
99551-20155 |
US $2.18 |
||
| replacement | |||||
|
87245E
|
87245E
99556-20200 Hose, Water(For Lpg Regulator Outlet)[01.1972 - 03.1973] KP3# L=155 |
99556-20200 |
from US $6.16 |
||
|
87245E
|
87245E
99551-20210 Hose, Heater Water, Inlet EHEATER WATER, INLET E [01.1972 - 03.1973] KP3# L=220,HEAVY DUTY HEATER |
99551-20210 |
US $2.18 |
||
| replacement | |||||
|
87245E
|
87245E
99556-20300 Hose, Water(For Lpg Regulator Inlet)[01.1972 - 03.1973] KP3# L=220,HEAVY DUTY HEATER |
99556-20300 |
US $7.17 |
||
|
87245E
|
87245E
99552-20155
Hose, Heater Water, Inlet E
[03.1973 - 11.1975] KP3# L=155 |
99552-20155 |
— | ||
| replacement | |||||
|
87245E
|
87245E
99556-20200 Hose, Water(For Lpg Regulator Outlet)[03.1973 - 11.1975] KP3# L=155 |
99556-20200 |
from US $6.16 |
||
|
87245E
|
87245E
99552-20210
Hose, Heater Water, Inlet A
[03.1973 - 11.1975] KP3# L=210,HEAVY DUTY HEATER |
99552-20210 |
— | ||
| replacement | |||||
|
87245E
|
87245E
99556-20300 Hose, Water(For Lpg Regulator Inlet)[03.1973 - 11.1975] KP3# L=210,HEAVY DUTY HEATER |
99556-20300 |
US $7.17 |
||
|
87246A
|
87246A
99551-20180 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [01.1972 - 03.1973] KP3# L=180 |
99551-20180 |
US $4.22 |
||
| replacement | |||||
|
87246A
|
87246A
99556-20200 Hose, Water(For Lpg Regulator Outlet)[01.1972 - 03.1973] KP3# L=180 |
99556-20200 |
from US $6.16 |
||
|
87246A
|
87246A
99551-20230 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [01.1972 - 03.1973] KP3# L=230,HEAVY DUTY HEATER |
99551-20230 |
US $2.18 |
||
| replacement | |||||
|
87246A
|
87246A
99556-20300 Hose, Water(For Lpg Regulator Inlet)[01.1972 - 03.1973] KP3# L=230,HEAVY DUTY HEATER |
99556-20300 |
US $7.17 |
||
|
87246A
|
87246A
99552-20180
Hose, Heater Water, Outlet A
[03.1973 - 04.1974] KP3# L=180 |
99552-20180 |
— | ||
| replacement | |||||
|
87246A
|
87246A
99556-20200 Hose, Water(For Lpg Regulator Outlet)[03.1973 - 04.1974] KP3# L=180 |
99556-20200 |
from US $6.16 |
||
|
87246A
|
87246A
99552-20230
Hose, Heater Water, Outlet A
[03.1973 - 04.1974] KP3# L=230,HEAVY DUTY HEATER |
99552-20230 |
— | ||
| replacement | |||||
|
87246A
|
87246A
99556-20300 Hose, Water(For Lpg Regulator Inlet)[03.1973 - 04.1974] KP3# L=230,HEAVY DUTY HEATER |
99556-20300 |
US $7.17 |
||
|
87246E
|
87246E
99551-20500 Hose, Heater Water, Outlet EHEATER WATER, OUTLET E [03.1971 - 03.1973] KP3#..DLX,HDX,S,STD,XL L=500 |
99551-20500 |
US $3.93 |
||
| replacement | |||||
|
87246E
|
87246E
99556-20500
Hose, Rear Heater Water Inlet, B
[03.1971 - 03.1973] KP3#..DLX,HDX,S,STD,XL L=500 |
99556-20500 |
— | ||
|
87246E
|
87246E
99552-20500 Hose, Sub Radiator, No.2[03.1973 - 04.1974] KP3#..DLX,HDX,S,STD,XL 長さ＝５００ |
99552-20500 |
US $10.05 |
||
| replacement | |||||
|
87246E
|
87246E
99556-20500
Hose, Rear Heater Water Inlet, B
[03.1973 - 04.1974] KP3#..DLX,HDX,S,STD,XL 長さ＝５００ |
99556-20500 |
— | ||
|
87248A
|
87248A
87248-10050
Pipe, Heater Water Inlet, A
[04.1969 - 04.1974] KP3# |
87248-10050 |
— | ||
|
8726110050
|
8726110050
87261-10050
Bracket, Heater Pump
|
87261-10050 |
— | ||
|
9046016072
|
9046016072
90460-16072
New Genuine Part
|
90460-16072 |
— | ||
|
9046022073
|
9046022073
90460-22073
Clip(For Ventilation Hose No.2)
|
90460-22073 |
— | ||
| replacement | |||||
|
9046022073
|
9046022073
90467-19022 Clip(For Ventilation Hose No.2) |
90467-19022 |
from US $2.15 |
||
|
9046322073
|
9046322073
90463-22073
New Genuine Part
|
90463-22073 |
— | ||
|
9046820117
|
9046820117
90468-20117 New Genuine Part |
90468-20117 |
US $2.48 |
||
|
9111140612
|
9111140612
91111-40612
New Genuine Part
|
91111-40612 |
— | ||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9611210160
|
9611210160
96112-10160 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96112-10160 |
US $4.22 |
||
|
9611210220
|
9611210220
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96112-10220 |
US $0.61 |
||
