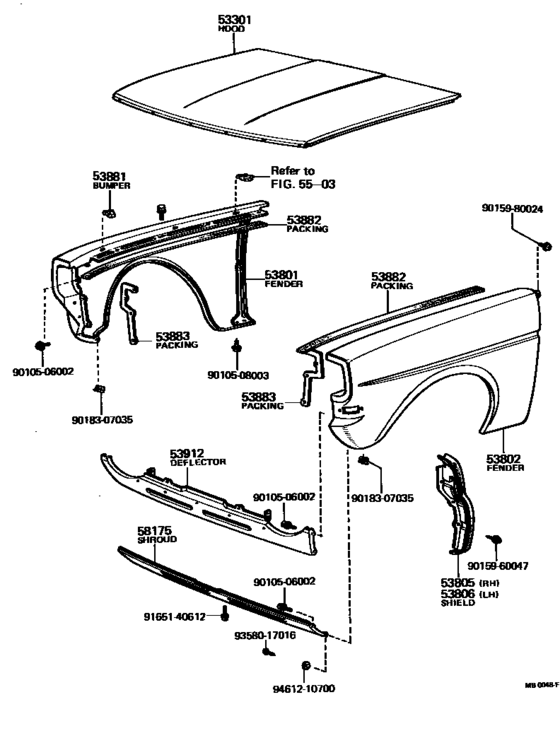

Hood & Front Fender ([04.1969 - 12.1971] (6904-7112)) Diagram Toyota PUBLICA
- Year
- 1970 - 1971
- Sales region
- Japan
- Frame
- KP31
- grade
- HDX
- body
- SED
- ENGINE
- 3K
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 10.1970
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-10110
Hood Sub-Assy
[04.1969 - 12.1971] KP3#,UP3# |
53301-10110 |
— | ||
|
53801
|
53801
53801-10140
Fender Sub-Assy, Front Rh
[04.1969 - 10.1970] KP3#,UP3# |
53801-10140 |
— | ||
| replacement | |||||
|
53801
|
53801
53801-10141
Fender Sub-Assy, Front Rh
[04.1969 - 10.1970] KP3#,UP3# |
53801-10141 |
— | ||
|
53801
|
53801
53801-10141
Fender Sub-Assy, Front Rh
[10.1970 - 12.1971] KP3#,UP3# |
53801-10141 |
— | ||
|
53802
|
53802
53802-10190
Fender Sub-Assy, Front Lh
[04.1969 - 10.1970] KP3#,UP3# |
53802-10190 |
— | ||
| replacement | |||||
|
53802
|
53802
53802-10191
Fender Sub-Assy, Front Lh
[04.1969 - 10.1970] KP3#,UP3# |
53802-10191 |
— | ||
|
53802
|
53802
53802-10191
Fender Sub-Assy, Front Lh
[10.1970 - 12.1971] KP3#,UP3# |
53802-10191 |
— | ||
|
53805
|
53805
53805-10020
Shield Sub-Assy, Front Fender Splash, Rh
[04.1969 - 08.1988] KP3#,50,UP3# |
53805-10020 |
— | ||
|
53806
|
53806
53806-10020
Shield Sub-Assy, Front Fender Splash, Lh
[04.1969 - 08.1988] KP3#,50,UP3# |
53806-10020 |
— | ||
|
53881
|
53881
53349-10030
Bumper, Fender To Hood
[04.1969 - 08.1988] KP3#,50,UP3# |
53349-10030 |
— | ||
|
53882
|
53882
53882-10020
Packing, Front Fender Main
[04.1969 - 08.1988] KP3#,50,UP3# |
53882-10020 |
— | ||
|
53883
|
53883
53883-10020
Packing, Front Fender, Front
[04.1969 - 12.1971] KP3#,UP3# |
53883-10020 |
— | ||
|
53912
|
53912
53203-10030
Deflector, Front Bumper Stone
[04.1969 - 10.1970] KP3#,UP3# |
53203-10030 |
— | ||
|
53912
|
53912
53203-10031
Deflector, Front Bumper Stone
[10.1970 - 12.1971] KP3#,UP3# |
53203-10031 |
— | ||
|
58175
|
58175
53206-10010
Shroud, Radiator, Lower
[04.1969 - 12.1971] KP3#,UP3# |
53206-10010 |
— | ||
|
9010506002
|
9010506002
90105-06002 New Genuine Part |
90105-06002 |
US $2.33 |
||
| replacement | |||||
|
9010506002
|
9010506002
91521-40614
New Genuine Part
|
91521-40614 |
— | ||
|
9010508003
|
9010508003
90105-08003
New Genuine Part
|
90105-08003 |
— | ||
| replacement | |||||
|
9010508003
|
9010508003
91511-B0816 BOLT |
91511-B0816 |
from US $0.82 |
||
|
9015960047
|
9015960047
90159-60047 SCREWWWASHER |
90159-60047 |
from US $1.08 |
||
|
9015980024
|
9015980024
90159-80024
New Genuine Part
|
90159-80024 |
— | ||
|
9018307035
|
9018307035
90183-07035 New Genuine Part |
90183-07035 |
US $2.91 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9358017016
|
9358017016
93580-17016
New Genuine Part
|
93580-17016 |
— | ||
|
9461210700
|
9461210700
94612-10700 New Genuine Part |
94612-10700 |
US $2.04 |
||
