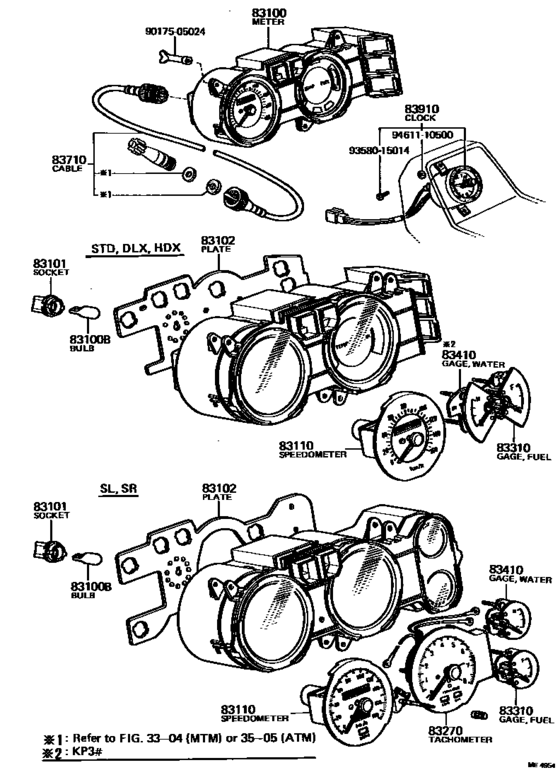

Meter ([10.1970 - 12.1971] (7010-7112)) Diagram Toyota PUBLICA
- Year
- 1970 - 1971
- Sales region
- Japan
- Frame
- KP31
- grade
- HDX
- body
- SED
- ENGINE
- 3K
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 10.1970
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83100-10131
Meter Assy, Combination
[10.1970 - 12.1971] KP3#..DLX,HDX,STD |
83100-10131 |
— | ||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1969 - 08.1988] KP3#,50,UP3# １２Ｖ ３．４Ｗ |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1969 - 08.1988] KP3#,50,UP3# １２Ｖ ３．４Ｗ |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-12010
Socket, Ash Receptacle Lamp
[04.1969 - 12.1971] KP3#,UP3# |
83101-12010 |
— | ||
|
83102
|
83102
83102-10021
Plate Sub-Assy, Combination Meter Circuit, No.1
[10.1970 - 12.1971] KP3#..DLX,HDX,STD |
83102-10021 |
— | ||
|
83110
|
83110
83110-10121 Speedometer Assy[10.1970 - 12.1971] KP3#,UP3#..DLX,HDX,STD |
83110-10121 |
US $251.89 |
||
| replacement | |||||
|
83110
|
83110
83110-10122
Speedometer Assy
[10.1970 - 12.1971] KP3#,UP3#..DLX,HDX,STD |
83110-10122 |
— | ||
|
83310
|
83310
83310-10051 Gage Assy, Fuel ReceiverFUEL RECEIVER [10.1970 - 11.1975] KP3#..DLX,HDX,STD,XL |
83310-10051 |
US $38.44 |
||
|
83410
|
83410
83410-10011
Gage Assy, Water Temperature Receiver
[10.1970 - 11.1975] KP3#..DLX,HDX,STD,XL |
83410-10011 |
— | ||
|
83710
|
83710
83710-39075
Cable Assy, Speedometer Drive, No.1
[10.1970 - 12.1971] KP3# L=1600 |
83710-39075 |
— | ||
|
83910
|
83910
83910-19015
Clock Assy
[04.1970 - 12.1971] KP31..4F |
83910-19015 |
— | ||
|
9017505024
|
9017505024
90175-05024 New Genuine Part |
90175-05024 |
US $4.37 |
||
|
9358015014
|
9358015014
93580-15014 New Genuine Part |
93580-15014 |
US $2.48 |
||
|
9461110500
|
9461110500
94611-10500 New Genuine Part |
94611-10500 |
US $2.06 |
||
