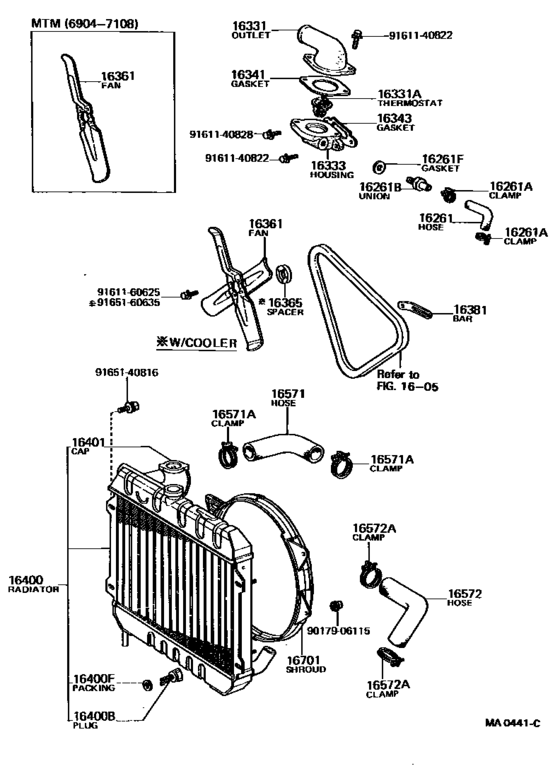

Radiator & Water Outlet ([04.1969 - 04.1973] (6904-7304)KB,2K,3K,3KB#) Diagram Toyota PUBLICA
- Year
- 1970 - 1971
- Sales region
- Japan
- Frame
- KP31
- grade
- HDX
- body
- SED
- ENGINE
- 3K
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 10.1970
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261B
|
16261B
90407-16039 Union(For Water By-Pass Hose)[05.1970 - 04.1974] 2K,3K,3KB#..KP3# W/HEATER |
90407-16039 |
US $7.28 |
||
|
16261F
|
16261F
90301-13105
Gasket(For Water By-Pass Hose)
[05.1970 - 04.1974] 2K,3K,3KB#..KP3# W/HEATER |
90301-13105 |
— | ||
|
16331
|
16331
16301-24010
Outlet, Water
[04.1969 - 04.1973] KB,2K,3K,3KB#..KP3# |
16301-24010 |
— | ||
|
16331A
|
16331A
90916-03020
Thermostat
[04.1969 - 11.1979] 2K,3K,3KB#,3KHJ,3KU..KP3#,50 *WAX 82-95,*(F) |
90916-03020 |
— | ||
|
16331A
|
16331A
90916-03021
Thermostat
[01.1970 - 05.1974] 2K,3K,3KB#..KP3# *WAX 82-95,KUZEH |
90916-03021 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03083 Thermostat[01.1970 - 05.1974] 2K,3K,3KB#..KP3# *WAX 82-95,KUZEH |
90916-03083 |
from US $17.14 |
||
|
16333
|
16333
16333-22020
Housing, Water Outlet
[04.1969 - 11.1975] KB,2K,3K,3KB#..KP3# |
16333-22020 |
— | ||
| replacement | |||||
|
16333
|
16333
16333-22021
Housing, Water Outlet
[04.1969 - 11.1975] KB,2K,3K,3KB#..KP3# |
16333-22021 |
— | ||
|
16341
|
16341
16341-22010
Gasket, Water Outlet
[04.1969 - 03.1978] KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
16341-22010 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-13040 Gasket, Water Outlet[04.1969 - 03.1978] KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
16341-13040 |
US $5.73 |
||
|
16343
|
16343
16343-22010
Gasket, Water Outlet Housing
[04.1969 - 01.1982] KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
16343-22010 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-13020 Gasket, Water Outlet Housing[04.1969 - 01.1982] KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
16343-13020 |
US $8.96 |
||
|
16361
|
16361
16361-22010
Fan
[04.1969 - 08.1971] KB,2K,3K,3KB#..KP3#..4F 2 BLADES |
16361-22010 |
— | ||
|
16361
|
16361
16361-24010
Fan
[08.1971 - 04.1974] 2K,3K,3KB#..KP3#..4F 4 BLADES |
16361-24010 |
— | ||
|
16361
|
16361
88453-12010
Fan
[04.1969 - 12.1971] KB,2K,3K,3KB#..KP3# W/COOLER |
88453-12010 |
— | ||
|
16365
|
16365
88457-10010
Spacer, Fan
[04.1969 - 12.1971] KB,2K,3K,3KB#..KP3# W/COOLER |
88457-10010 |
— | ||
|
16381
|
16381
16381-22010 Bar, Fan Belt AdjustingFAN BELT ADJUSTING [04.1969 - 12.1971] KB,2K,3K,3KB#..KP3# |
16381-22010 |
US $8.74 |
||
| replacement | |||||
|
16381
|
16381
16381-24011
Bar, Fan Belt Adjusting
[04.1969 - 12.1971] KB,2K,3K,3KB#..KP3# |
16381-24011 |
— | ||
|
16400
|
16400
16400-22010
Radiator Assy
[04.1969 - 12.1971] KB,2K,3K,3KB#..KP3#..4F |
16400-22010 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-24061
Radiator Assy
[04.1969 - 12.1971] KB,2K,3K,3KB#..KP3#..4F |
16400-24061 |
— | ||
|
16400B
|
16400B
90099-18501
Plug, Radiator Drain Cock
[04.1969 - 12.1970] KB,2K,3K..KP3# |
90099-18501 |
— | ||
|
16400B
|
16400B
90099-18502
Plug, Radiator Drain Cock
[12.1970 - 12.1971] 2K,3K,3KB#..KP3# |
90099-18502 |
— | ||
| replacement | |||||
|
16400B
|
16400B
90910-09052
Cock Sub-Assy, Water Drain(For Cylinder Block)
[12.1970 - 12.1971] 2K,3K,3KB#..KP3# |
90910-09052 |
— | ||
|
16400F
|
16400F
90099-06027
Packing(For Radiator Drain Cock)
[12.1970 - 12.1971] 2K,3K,3KB#..KP3# |
90099-06027 |
— | ||
|
16401
|
16401
16401-40120 Cap Sub-Assy, RadiatorRADIATOR [04.1969 - 12.1972] KB,2K,3K,3KB#..KP3# |
16401-40120 |
US $14.27 |
||
|
16571
|
16571
90916-01013 Hose, Radiator, InletRADIATOR, INLET [04.1969 - 11.1975] KB,2K,3K,3KB#..KP3# |
90916-01013 |
US $19.07 |
||
|
16571A
|
16571A
90460-43005
Clamp Or Clip, Hose(For Radiator Inlet)
[04.1969 - 04.1974] KB,2K,3K,3KB#..KP3# |
90460-43005 |
— | ||
| replacement | |||||
|
16571A
|
16571A
96111-10430 Clamp Or Clip, Hose(For Radiator Inlet)[04.1969 - 04.1974] KB,2K,3K,3KB#..KP3# |
96111-10430 |
from US $2.15 |
||
|
16572
|
16572
90916-01049 Hose, Radiator, OutletRADIATOR, OUTLET [04.1969 - 12.1971] KB,2K,3K,3KB#..KP3# |
90916-01049 |
US $24.17 |
||
|
16572A
|
16572A
90460-43005
Clamp Or Clip, Hose(For Radiator Inlet)
[04.1969 - 02.1973] KB,2K,3K,3KB#..KP3# |
90460-43005 |
— | ||
| replacement | |||||
|
16572A
|
16572A
96111-10430 Clamp Or Clip, Hose(For Radiator Inlet)[04.1969 - 02.1973] KB,2K,3K,3KB#..KP3# |
96111-10430 |
from US $2.15 |
||
|
16701
|
16701
88454-12010
Shroud Sub-Assy, Fan
[04.1969 - 12.1971] KB,2K,3K,3KB#..KP3# W/COOLER |
88454-12010 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9161140822
|
9161140822
91611-40822
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40822 |
— | ||
| replacement | |||||
|
9161140822
|
9161140822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9161140828
|
9161140828
91611-40828 Bolt(For Clutch Release Cylinder Setting) |
91611-40828 |
US $2.77 |
||
| replacement | |||||
|
9161140828
|
9161140828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9161160625
|
9161160625
91611-60625
Bolt, W/washer (For Parking Cove & Case)
|
91611-60625 |
— | ||
| replacement | |||||
|
9161160625
|
9161160625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165160635
|
9165160635
91651-60635 BOLT |
91651-60635 |
US $2.87 |
||
