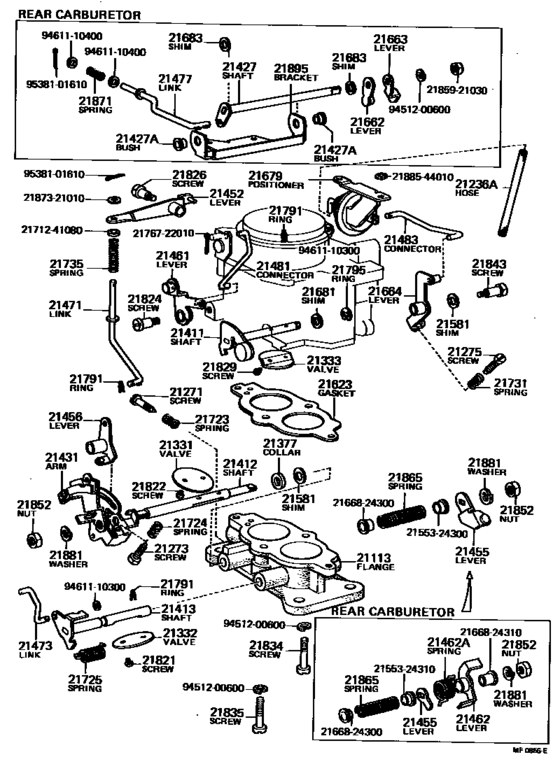

Carburetor ([04.1973 - 11.1975] (7304-7511)3KB#) Diagram Toyota PUBLICA
- Year
- 1972 - 1975
- Sales region
- Japan
- Frame
- KP31
- grade
- ST
- body
- SED
- ENGINE
- 3KB
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 01.1972
- To
- 01.1975
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21113
|
21113
21113-24060
Flange, Carburetor
[05.1970 - 04.1973] 3KB#..KP31 FR CARBURETOR |
21113-24060 |
— | ||
|
21113
|
21113
21113-24070
Flange, Carburetor
[05.1970 - 04.1973] 3KB#..KP31 RR CARBURETOR |
21113-24070 |
— | ||
|
21113
|
21113
21113-24120
Flange, Carburetor
[10.1970 - 04.1972] 3KB#..KP31 FR CARBURETOR,COLD SPEC |
21113-24120 |
— | ||
| replacement | |||||
|
21113
|
21113
21113-24121
Flange, Carburetor
[10.1970 - 04.1972] 3KB#..KP31 FR CARBURETOR,COLD SPEC |
21113-24121 |
— | ||
|
21113
|
21113
21113-24121
Flange, Carburetor
[04.1972 - 04.1973] 3KB#..KP31 FR CARBURETOR,COLD SPEC |
21113-24121 |
— | ||
|
21113
|
21113
21113-24130
Flange, Carburetor
[10.1970 - 04.1972] 3KB#..KP31 RR CARBURETOR,COLD SPEC |
21113-24130 |
— | ||
| replacement | |||||
|
21113
|
21113
21113-24131
Flange, Carburetor
[10.1970 - 04.1972] 3KB#..KP31 RR CARBURETOR,COLD SPEC |
21113-24131 |
— | ||
|
21113
|
21113
21113-24131
Flange, Carburetor
[04.1972 - 04.1973] 3KB#..KP31 RR CARBURETOR,COLD SPEC |
21113-24131 |
— | ||
|
21113
|
21113
21113-24260
Flange, Carburetor
[04.1973 - 10.1973] 3KB#..KP31 FR CARBURETOR |
21113-24260 |
— | ||
|
21113
|
21113
21113-24270
Flange, Carburetor
[04.1973 - 10.1973] 3KB#..KP31 RR CARBURETOR |
21113-24270 |
— | ||
|
21113
|
21113
21113-24280
Flange, Carburetor
[04.1973 - 05.1973] 3KB#..KP31 FR CARBURETOR,COLD SPEC |
21113-24280 |
— | ||
|
21113
|
21113
21113-24290
Flange, Carburetor
[04.1973 - 05.1973] 3KB#..KP31 RR CARBURETOR,COLD SPEC |
21113-24290 |
— | ||
|
21113
|
21113
21113-24300
Flange, Carburetor
[10.1973 - 11.1975] 3KB#..KP31 FR CARBURETOR |
21113-24300 |
— | ||
|
21113
|
21113
21113-24310
Flange, Carburetor
[10.1973 - 11.1975] 3KB#..KP31 RR CARBURETOR |
21113-24310 |
— | ||
|
21236A
|
21236A
21662-24230
Hose, No.1(For Opener)
[10.1973 - 11.1975] 3K,3KB#..KP31,37 |
21662-24230 |
— | ||
|
21271
|
21271
21271-22010
Screw, Idle Adjusting
[04.1969 - 02.1970] 2UC..UP3#; KB,2K..KP30 |
21271-22010 |
— | ||
|
21271
|
21271
21271-24100 Screw, Idle AdjustingIDLE ADJUSTING [10.1970 - 02.1971] 3K..KP31 |
21271-24100 |
US $10.63 |
||
|
21273
|
21273
21273-50010
Screw, Throttle Adjusting
[04.1969 - 10.1970] 2UC..UP3#; KB,2K..KP3# |
21273-50010 |
— | ||
|
21273
|
21273
21814-44010
Screw, Throttle Adjusting
[10.1970 - 11.1975] 3KB#..KP31 |
21814-44010 |
— | ||
|
21275
|
21275
21842-24230 Screw, Adjusting[10.1973 - 11.1975] 3KB#..KP31 |
21842-24230 |
US $4.51 |
||
|
21275
|
21275
21842-60191 Screw, AdjustingADJUSTING [04.1973 - 10.1973] 3K,3KB#..KP31,37 |
21842-60191 |
US $3.93 |
||
| replacement | |||||
|
21275
|
21275
21842-24230 Screw, Adjusting[04.1973 - 10.1973] 3K,3KB#..KP31,37 |
21842-24230 |
US $4.51 |
||
|
21331
|
21331
21331-21010 Valve, 1St Throttle1ST THROTTLE [01.1972 - 04.1973] 2K,3K,3KB#..KP3# |
21331-21010 |
US $3.93 |
||
|
21331
|
21331
21331-22010 Valve, 1St Throttle1ST THROTTLE [04.1969 - 12.1971] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
21331-22010 |
US $3.93 |
||
| replacement | |||||
|
21331
|
21331
21331-21010 Valve, 1St Throttle1ST THROTTLE [04.1969 - 12.1971] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
21331-21010 |
US $3.93 |
||
|
21332
|
21332
21332-21060 Valve, 2Nd Throttle2ND THROTTLE [04.1973 - 11.1975] 2K,3K,3KB#..KP3# |
21332-21060 |
US $5.53 |
||
|
21332
|
21332
21332-22010 Valve, 2Nd Throttle2ND THROTTLE [04.1969 - 12.1971] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
21332-22010 |
US $4.08 |
||
| replacement | |||||
|
21332
|
21332
21332-21060 Valve, 2Nd Throttle2ND THROTTLE [04.1969 - 12.1971] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
21332-21060 |
US $5.53 |
||
|
21333
|
21333
21333-22050
Valve, High Speed
[04.1969 - 11.1975] KB,3KB#..KP30,31 |
21333-22050 |
— | ||
|
21377
|
21377
21377-24230 Collar(For 2Nd Throttle Shaft)[04.1973 - 11.1975] 2K,3K,3KB#..KP3# |
21377-24230 |
US $4.37 |
||
|
21411
|
21411
21432-22050
Shaft, High Speed
[04.1969 - 04.1970] KB..KP30 |
21432-22050 |
— | ||
|
21411
|
21411
21432-24060
Shaft, High Speed
[04.1970 - 12.1971] 3KB#..KP31 |
21432-24060 |
— | ||
|
21411
|
21411
21432-24061
Shaft, High Speed
[01.1972 - 11.1975] 3KB#..KP31 |
21432-24061 |
— | ||
|
21412
|
21412
21412-22010
Shaft, 1St Throttle
[04.1969 - 04.1973] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
21412-22010 |
— | ||
|
21412
|
21412
21412-24230
Shaft, 1St Throttle
[04.1973 - 10.1973] 3K,3KB#..KP31,37 |
21412-24230 |
— | ||
|
21412
|
21412
21412-24250
Shaft, 1St Throttle
[04.1973 - 10.1973] 2K,3KB#..KP30,31,36 |
21412-24250 |
— | ||
|
21412
|
21412
21412-24300
Shaft, 1St Throttle
[10.1973 - 04.1974] 2K,3K,3KB#..KP3#..4F |
21412-24300 |
— | ||
|
21412
|
21412
21412-24310
Shaft, 1St Throttle
[10.1973 - 11.1975] 3KB#..KP31 RR CARBURETOR |
21412-24310 |
— | ||
|
21413
|
21413
21402-22010
Shaft, 2Nd Throttle
[04.1969 - 10.1970] 2UC..UP3#; KB,2K..KP3# |
21402-22010 |
— | ||
|
21413
|
21413
21413-24060
Shaft, 2Nd Throttle
[10.1970 - 12.1971] 3KB#..KP31 |
21413-24060 |
— | ||
|
21413
|
21413
21413-24061
Shaft, 2Nd Throttle
[01.1972 - 11.1975] 3KB#..KP31 |
21413-24061 |
— | ||
|
21427
|
21427
21427-22061
Shaft, Choke Connector
[04.1969 - 10.1970] KB..KP30 |
21427-22061 |
— | ||
|
21427
|
21427
21427-24070
Shaft, Choke Connector
[10.1970 - 10.1973] 3KB#..KP31 |
21427-24070 |
— | ||
|
21427
|
21427
21427-24310
Shaft, Choke Connector
[10.1973 - 11.1975] 3KB#..KP31 |
21427-24310 |
— | ||
|
21427A
|
21427A
21895-22060
Bush, Shaft Choke Connector
[04.1969 - 11.1975] KB,3KB#..KP30,31 |
21895-22060 |
— | ||
|
21431
|
21431
21431-24061 Arm, 1St Throttle Shaft[01.1972 - 04.1973] 3KB#..KP31 |
21431-24061 |
US $27.66 |
||
| replacement | |||||
|
21431
|
21431
21431-24062
Arm, 1St Throttle Shaft
[01.1972 - 04.1973] 3KB#..KP31 |
21431-24062 |
— | ||
|
21431
|
21431
21431-24080 Arm, 1St Throttle Shaft[03.1971 - 12.1971] 3KB#..KP31 |
21431-24080 |
US $28.68 |
||
| replacement | |||||
|
21431
|
21431
21431-24081
Arm, 1St Throttle Shaft
[03.1971 - 12.1971] 3KB#..KP31 |
21431-24081 |
— | ||
|
21431
|
21431
21431-24260
Arm, 1St Throttle Shaft
[04.1973 - 10.1973] 3KB#..KP31 |
21431-24260 |
— | ||
|
21431
|
21431
21431-24300
Arm, 1St Throttle Shaft
[10.1973 - 04.1974] 3KB#..KP31 |
21431-24300 |
— | ||
|
21431
|
21431
21431-24301
Arm, 1St Throttle Shaft
[04.1974 - 11.1975] 3KB#..KP31 |
21431-24301 |
— | ||
|
21452
|
21452
21407-22011
Lever, Pump
[04.1969 - 10.1973] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
21407-22011 |
— | ||
|
21452
|
21452
21452-24300
Lever, Pump
[10.1973 - 11.1975] 3KB#..KP31 |
21452-24300 |
— | ||
|
21455
|
21455
21444-24310
Lever, Throttle
[04.1973 - 11.1975] 3KB#..KP31 RR CARBURETOR |
21444-24310 |
— | ||
|
21455
|
21455
21455-24230
Lever, Throttle
[04.1973 - 11.1975] 3K,3KB#..KP31,37 |
21455-24230 |
— | ||
|
21456
|
21456
21456-22052 Lever, 1St Throttle Idle Adjusting, No.1[04.1969 - 10.1970] KB..KP30 |
21456-22052 |
US $15.29 |
||
| replacement | |||||
|
21456
|
21456
21456-22053
Lever, 1St Throttle Idle Adjusting, No.1
[04.1969 - 10.1970] KB..KP30 |
21456-22053 |
— | ||
|
21456
|
21456
21456-24060
Lever, 1St Throttle Idle Adjusting, No.1
[10.1970 - 04.1973] 3KB#..KP31 |
21456-24060 |
— | ||
|
21456
|
21456
21456-24260
Lever, 1St Throttle Idle Adjusting, No.1
[04.1973 - 11.1975] 3KB#..KP31 |
21456-24260 |
— | ||
|
21461
|
21461
21458-24060
Lever, 1St Idle
[09.1972 - 11.1975] 3KB#..KP31 |
21458-24060 |
— | ||
|
21461
|
21461
21461-24060 Lever, 1St Idle[10.1970 - 09.1972] 3KB#..KP31 |
21461-24060 |
US $10.77 |
||
| replacement | |||||
|
21461
|
21461
21458-24060
Lever, 1St Idle
[10.1970 - 09.1972] 3KB#..KP31 |
21458-24060 |
— | ||
|
21462
|
21462
21462-24310
Lever, Slow Adjusting
[04.1973 - 11.1975] 3KB#..KP31 |
21462-24310 |
— | ||
|
21462A
|
21462A
21866-24311
Screw, Slow Adjusting
[04.1973 - 11.1975] 3KB#..KP31 |
21866-24311 |
— | ||
|
21471
|
21471
21474-11060
Link, Pump Connecting
[10.1970 - 11.1975] 2UC..UP3#; 3KB#..KP31 |
21474-11060 |
— | ||
|
21471
|
21471
21474-22011
Link, Pump Connecting
[04.1969 - 10.1970] 2UC..UP3#; KB,2K..KP3# |
21474-22011 |
— | ||
|
21473
|
21473
21473-24060
Link, Throttle Shaft
[01.1972 - 11.1975] 3KB#..KP31 |
21473-24060 |
— | ||
|
21473
|
21473
21473-31010
Link, Throttle Shaft
[04.1969 - 10.1970] 2UC..UP3#; KB,2K..KP3# |
21473-31010 |
— | ||
|
21473
|
21473
21473-40010
Link, Throttle Shaft
[10.1970 - 12.1971] 3KB#..KP31 |
21473-40010 |
— | ||
|
21477
|
21477
21477-22061
Link, Choke Lever
[04.1969 - 10.1970] KB..KP30 |
21477-22061 |
— | ||
|
21477
|
21477
21477-24070
Link, Choke Lever
[10.1970 - 10.1973] 3KB#..KP31 |
21477-24070 |
— | ||
|
21477
|
21477
21477-24310
Link, Choke Lever
[10.1973 - 11.1975] 3KB#..KP31 |
21477-24310 |
— | ||
|
21481
|
21481
21481-22012 Connector, 1St Idle1ST IDLE [04.1969 - 02.1971] 2UC..UP3#; 2K,3K..KP3# |
21481-22012 |
US $5.39 |
||
|
21481
|
21481
21481-24060
Connector, 1St Idle
[02.1971 - 11.1975] 3KB#..KP31 |
21481-24060 |
— | ||
|
21483
|
21483
21483-24231
Connector, No.1
[04.1973 - 11.1975] 3K,3KB#..KP31,37 |
21483-24231 |
— | ||
|
21581
|
21581
21581-21010
Shim, 1St Throttle Shaft
[04.1969 - 04.1973] 2UC..UP3# T=0.2; KB,2K,3K,3KB#..KP3# T=0.2 |
21581-21010 |
— | ||
|
21581
|
21581
21581-32010 Shim, 1St Throttle ShaftCHOKE ROD BELLCRANK SHAFT [04.1973 - 11.1975] 2K,3K,3KB#..KP3# T=0.2 |
21581-32010 |
US $3.93 |
||
|
21581
|
21581
21581-41010 Shim, 1St Throttle ShaftCHOKE ROD BELLCRANK SHAFT [04.1973 - 11.1975] 2K,3K,3KB#..KP3# T=0.1 |
21581-41010 |
US $3.93 |
||
|
21581
|
21581
21582-21010
Shim, 1St Throttle Shaft
[04.1969 - 04.1973] 2UC..UP3# T=0.3; KB,2K,3K,3KB#..KP3# T=0.3 |
21582-21010 |
— | ||
| replacements | |||||
|
21581
|
21581
21581-21010
Shim, 1St Throttle Shaft
[04.1969 - 04.1973] 2UC..UP3# T=0.3; KB,2K,3K,3KB#..KP3# T=0.3 |
21581-21010 |
— | ||
|
21581
|
21581
21588-21010
Shim, 1St Throttle Shaft
[04.1969 - 04.1973] 2UC..UP3# T=0.3; KB,2K,3K,3KB#..KP3# T=0.3 |
21588-21010 |
— | ||
|
21581
|
21581
21583-21010
Shim, 1St Throttle Shaft
[04.1973 - 06.1973] 3K,3KB#..KP31,37 T=0.6 |
21583-21010 |
— | ||
|
21581
|
21581
21583-32010
Shim, 1St Throttle Shaft
[04.1973 - 10.1973] 3K,3KB#..KP31,37 T=0.6 |
21583-32010 |
— | ||
|
21581
|
21581
21583-41010 Shim, 1St Throttle ShaftCHOKE ROD BELLCRANK SHAFT [04.1973 - 11.1975] 2K,3K,3KB#..KP3# T=0.3 |
21583-41010 |
US $3.93 |
||
| replacements | |||||
|
21581
|
21581
21581-32010 Shim, 1St Throttle ShaftCHOKE ROD BELLCRANK SHAFT [04.1973 - 11.1975] 2K,3K,3KB#..KP3# T=0.3 |
21581-32010 |
US $3.93 |
||
|
21581
|
21581
21581-41010 Shim, 1St Throttle ShaftCHOKE ROD BELLCRANK SHAFT [04.1973 - 11.1975] 2K,3K,3KB#..KP3# T=0.3 |
21581-41010 |
US $3.93 |
||
|
21581
|
21581
21588-21010
Shim, 1St Throttle Shaft
[04.1969 - 04.1973] 2UC..UP3# T=0.1; KB,2K,3K,3KB#..KP3# T=0.1 |
21588-21010 |
— | ||
|
21581
|
21581
26228-31010
Shim, 1St Throttle Shaft
[06.1973 - 10.1973] 3K,3KB#..KP31,37 T=0.6 |
26228-31010 |
— | ||
|
21623
|
21623
21623-22011 Gasket, Body FlangeBODY FLANGE [04.1969 - 04.1970] 2UC..UP3#; KB,2K..KP3# |
21623-22011 |
US $3.49 |
||
| replacement | |||||
|
21623
|
21623
21623-22012
Gasket, Body Flange
[04.1969 - 04.1970] 2UC..UP3#; KB,2K..KP3# |
21623-22012 |
— | ||
|
21623
|
21623
21623-22012
Gasket, Body Flange
[04.1970 - 10.1973] 2UC..UP3#; 2K,3K,3KB#..KP3# |
21623-22012 |
— | ||
|
21623
|
21623
21623-24300 Gasket, Body FlangeBODY FLANGE [10.1973 - 04.1974] 2K,3K,3KB#..KP3#..4F |
21623-24300 |
US $4.51 |
||
|
21662
|
21662
21444-22062 Lever, Choke Connector Shaft, No.1[04.1969 - 04.1970] KB..KP30 RR CARBURETOR |
21444-22062 |
US $9.90 |
||
| replacement | |||||
|
21662
|
21662
21444-22063
Lever, Choke Connector Shaft, No.1
[04.1969 - 04.1970] KB..KP30 RR CARBURETOR |
21444-22063 |
— | ||
|
21662
|
21662
21454-24071
Lever, Choke Connector Shaft, No.1
[10.1970 - 10.1973] 3KB#..KP31 RR CARBURETOR |
21454-24071 |
— | ||
|
21662
|
21662
21454-24310
Lever, Choke Connector Shaft, No.1
[10.1973 - 11.1975] 3KB#..KP31 RR CARBURETOR |
21454-24310 |
— | ||
|
21663
|
21663
21454-22061
Lever, Choke Connector Shaft, No.2
[04.1969 - 10.1970] KB..KP30 FR CARBURETOR |
21454-22061 |
— | ||
|
21663
|
21663
21464-22060
Lever, Choke Connector Shaft, No.2
[04.1969 - 10.1970] KB..KP30 RR CARBURETOR |
21464-22060 |
— | ||
|
21663
|
21663
21464-24070
Lever, Choke Connector Shaft, No.2
[10.1970 - 10.1973] 3KB#..KP31 RR CARBURETOR |
21464-24070 |
— | ||
|
21663
|
21663
21464-24310
Lever, Choke Connector Shaft, No.2
[10.1973 - 11.1975] 3KB#..KP31 RR CARBURETOR |
21464-24310 |
— | ||
|
21664
|
21664
21444-24230
Lever(For Dash Pot Or Positioner)
[04.1973 - 11.1975] 3K,3KB#..KP31,37 |
21444-24230 |
— | ||
|
21679
|
21679
21679-24230
Positioner
[04.1973 - 10.1973] 3K,3KB#..KP31,37 |
21679-24230 |
— | ||
|
21679
|
21679
21679-24350
Positioner
[10.1973 - 11.1975] 3K,3KB#..KP31,37 |
21679-24350 |
— | ||
|
21681
|
21681
21681-21060 Shim(For High Speed Shaft)CHOKE CONNECTOR SHAFT [04.1969 - 11.1975] 2UC..UP3# T=0.1; KB,2K,3K,3KB#..KP3# T=0.1 |
21681-21060 |
US $3.06 |
||
|
21681
|
21681
21682-21060
Shim(For High Speed Shaft)
[04.1969 - 11.1975] 2UC..UP3# T=0.2; KB,2K,3K,3KB#..KP3# T=0.2 |
21682-21060 |
— | ||
|
21683
|
21683
21681-21060 Shim(For High Speed Shaft)CHOKE CONNECTOR SHAFT [10.1970 - 11.1975] 3KB#..KP31 T=0.1 |
21681-21060 |
US $3.06 |
||
|
21683
|
21683
21682-21060
Shim(For High Speed Shaft)
[10.1970 - 11.1975] 3KB#..KP31 T=0.2 |
21682-21060 |
— | ||
|
21723
|
21723
21723-21030 Spring, Idle Adjusting[04.1969 - 10.1970] 2UC..UP3#; KB,2K..KP3# |
21723-21030 |
US $3.72 |
||
|
21724
|
21724
21726-40010 Spring, Throttle Adjusting[04.1969 - 11.1975] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
21726-40010 |
US $4.66 |
||
|
21725
|
21725
21725-22010
Spring, 2Nd Throttle Back
[04.1969 - 12.1971] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
21725-22010 |
— | ||
|
21725
|
21725
21725-24030 Spring, 2Nd Throttle Back2ND THROTTLE BACK [01.1972 - 11.1975] 2K,3K,3KB#..KP3# |
21725-24030 |
US $4.08 |
||
|
21731
|
21731
21723-21030 Spring, Idle Adjusting[04.1973 - 11.1975] 3K,3KB#..KP31,37 |
21723-21030 |
US $3.72 |
||
|
21735
|
21735
21735-22010
Spring, Pump Arm
[04.1969 - 04.1970] 2UC..UP3#; KB,2K..KP3# |
21735-22010 |
— | ||
|
21735
|
21735
21735-24030 Spring, Pump ArmPUMP ARM [04.1970 - 10.1973] 3K,3KB#..KP31,37 |
21735-24030 |
US $4.37 |
||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[04.1969 - 08.1988] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[04.1969 - 08.1988] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
21791-13010 |
US $3.32 |
||
|
21795
|
21795
21795-30010 Ring, Retainer, No.2(For High Speed Shaft)[04.1969 - 11.1975] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
21795-30010 |
US $2.48 |
||
|
21821
|
21821
21821-60010 Screw, 2Nd Throttle Valve Set1ST THROTTLE VALVE SET [04.1969 - 02.1970] 2UC..UP3#; KB,2K..KP3# |
21821-60010 |
US $2.91 |
||
| replacement | |||||
|
21821
|
21821
21821-60011
Screw, 2Nd Throttle Valve Set
[04.1969 - 02.1970] 2UC..UP3#; KB,2K..KP3# |
21821-60011 |
— | ||
|
21821
|
21821
21821-60011
Screw, 2Nd Throttle Valve Set
[02.1970 - 11.1975] 2UC..UP3#; 2K,3K,3KB#..KP3# |
21821-60011 |
— | ||
|
21822
|
21822
21822-10010 Screw, 1St Throttle Valve Set1ST THROTTLE VALVE SET [04.1969 - 02.1970] 2UC..UP3#; KB,2K..KP3# |
21822-10010 |
US $2.91 |
||
| replacement | |||||
|
21822
|
21822
21822-10011 Screw, 1St Throttle Valve SetCHOKE, VALVE SET [04.1969 - 02.1970] 2UC..UP3#; KB,2K..KP3# |
21822-10011 |
US $3.49 |
||
|
21822
|
21822
21822-10011 Screw, 1St Throttle Valve SetCHOKE, VALVE SET [02.1970 - 04.1973] 2UC..UP3#; 2K,3K,3KB#..KP3# |
21822-10011 |
US $3.49 |
||
|
21822
|
21822
21822-44100 Screw, 1St Throttle Valve Set1ST THROTTLE VALVE SET [04.1973 - 11.1975] 2K,3K,3KB#..KP3# |
21822-44100 |
US $2.18 |
||
| replacement | |||||
|
21822
|
21822
21822-44101
Screw, 1St Throttle Valve Set
[04.1973 - 11.1975] 2K,3K,3KB#..KP3# |
21822-44101 |
— | ||
|
21824
|
21824
21824-24060
Screw, Set(For 1St Idle Cam Follower Set)
[10.1970 - 11.1975] 3KB#..KP31 |
21824-24060 |
— | ||
|
21826
|
21826
21826-31010 Screw, Pump Arm Set1ST THROTTLE LEVER SET [04.1969 - 02.1971] 2UC..UP3#; KB,2K,3K..KP3# |
21826-31010 |
US $3.49 |
||
| replacement | |||||
|
21826
|
21826
21826-31012
Screw, Pump Arm Set
[04.1969 - 02.1971] 2UC..UP3#; KB,2K,3K..KP3# |
21826-31012 |
— | ||
|
21826
|
21826
21826-31011 Screw, Pump Arm SetPUMP ARM SET [03.1971 - 04.1973] 2UC..UP3#; 2K,3K,3KB#..KP3# |
21826-31011 |
US $3.49 |
||
| replacement | |||||
|
21826
|
21826
21826-31012
Screw, Pump Arm Set
[03.1971 - 04.1973] 2UC..UP3#; 2K,3K,3KB#..KP3# |
21826-31012 |
— | ||
|
21826
|
21826
21826-31012
Screw, Pump Arm Set
[04.1973 - 07.1977] 2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
21826-31012 |
— | ||
|
21829
|
21829
21823-60010
Screw, Choke, Valve Set
[04.1969 - 02.1970] 2UC..UP3#; KB,2K..KP3# |
21823-60010 |
— | ||
| replacement | |||||
|
21829
|
21829
21823-60011
Screw, High Speed Valve Set
[04.1969 - 02.1970] 2UC..UP3#; KB,2K..KP3# |
21823-60011 |
— | ||
|
21829
|
21829
21823-60011
Screw, High Speed Valve Set
[02.1970 - 11.1975] 2UC..UP3#; 2K,3K,3KB#..KP3# |
21823-60011 |
— | ||
|
21834
|
21834
21834-31010 Screw, Set, No.1(For Carburetor Body Set)[04.1969 - 08.1988] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
21834-31010 |
US $3.93 |
||
|
21835
|
21835
21835-40010
Screw, Set, No.1(For Carburetor Body Set)
[04.1969 - 08.1988] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
21835-40010 |
— | ||
|
21843
|
21843
21842-34064
Screw Or Pin (For Dash Pot Or Positioner Lever)
[04.1973 - 11.1975] 3K,3KB#..KP31,37 |
21842-34064 |
— | ||
|
21852
|
21852
21852-30010 Nut, Throttle Lever Set[04.1969 - 08.1988] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
21852-30010 |
US $4.22 |
||
|
21865
|
21865
21756-24300
Spring
[10.1973 - 08.1978] 2K,3K,3KB#,3KHJ,3KU..KP3#,50..MTM FR CARBURETOR |
21756-24300 |
— | ||
|
21865
|
21865
21756-24310
Spring
[10.1973 - 11.1975] 3KB#..KP31 RR CARBURETOR |
21756-24310 |
— | ||
|
21865
|
21865
21865-44100
Spring
[04.1973 - 10.1973] 3K,3KB#..KP31,37 |
21865-44100 |
— | ||
|
21871
|
21871
21864-22060
Spring, Choke Connecting Link
[04.1969 - 10.1970] KB..KP30 |
21864-22060 |
— | ||
|
21871
|
21871
21864-24070
Spring, Choke Connecting Link
[10.1970 - 11.1975] 3KB#..KP31 |
21864-24070 |
— | ||
|
21881
|
21881
21881-60010 Washer, Lock(For Throttle Shaft)[04.1969 - 01.1982] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ,3KU..KP3#,50 |
21881-60010 |
US $3.79 |
||
|
21895
|
21895
21896-22061
Bracket, Choke Connector Shaft
[04.1969 - 04.1970] KB..KP30 RR CARBURETOR |
21896-22061 |
— | ||
|
21895
|
21895
21896-24071
Bracket, Choke Connector Shaft
[10.1970 - 10.1973] 3KB#..KP31 RR CARBURETOR |
21896-24071 |
— | ||
|
21895
|
21895
21896-24310
Bracket, Choke Connector Shaft
[10.1973 - 11.1975] 3KB#..KP31 RR CARBURETOR |
21896-24310 |
— | ||
|
2155324300
|
2155324300
21553-24300 Guide |
21553-24300 |
US $5.53 |
||
|
2155324310
|
2155324310
21553-24310 Guide |
21553-24310 |
US $5.39 |
||
|
2166824300
|
2166824300
21668-24300 Collar |
21668-24300 |
US $4.37 |
||
|
2166824310
|
2166824310
21668-24310 Collar |
21668-24310 |
US $9.46 |
||
|
2171241080
|
2171241080
21712-41080 Bush, Sliding RodSLIDING ROD |
21712-41080 |
US $4.51 |
||
|
2176722010
|
2176722010
21767-22010 Pin, Diaphragm Rod |
21767-22010 |
US $3.93 |
||
|
2185921030
|
2185921030
21859-21030
Nut, Choke Shaft Set
|
21859-21030 |
— | ||
|
2187321010
|
2187321010
21873-21010
Washer, Plunger
|
21873-21010 |
— | ||
|
2188544010
|
2188544010
21885-44010 Washer(For Diaphragm Cap Set) |
21885-44010 |
US $3.67 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
|
9538101610
|
9538101610
95381-01610 New Genuine Part |
95381-01610 |
US $1.75 |
||
