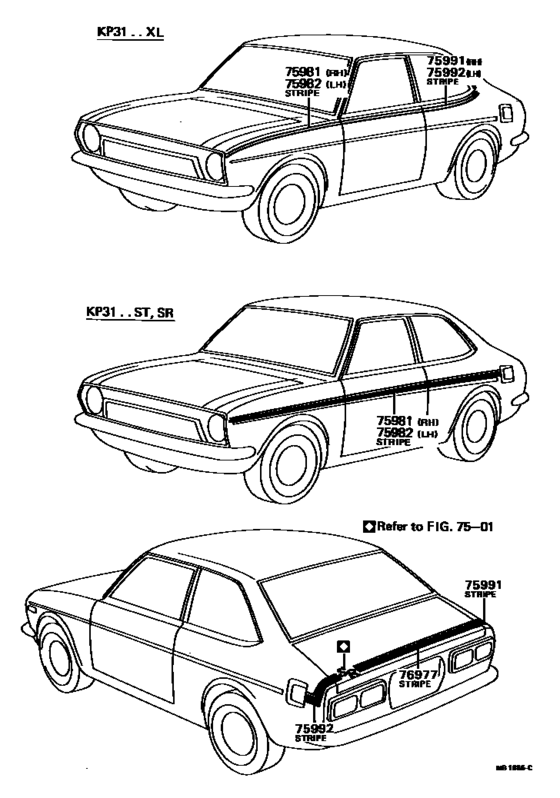

Body Stripe ([01.1972 - 11.1975] (7201-7511)KP30,31) Diagram Toyota PUBLICA
- Year
- 1971 - 1975
- Sales region
- Japan
- Frame
- KP31
- grade
- SR
- body
- SED
- ENGINE
- 3KBR
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 03.1971
- To
- 11.1975
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75981
|
75981
75981-10031-01
Stripe, Front Fender, Rh No.1
[01.1972 - 11.1975] KP31..SR,ST BLACK,BLACK |
75981-10031-01 |
— | ||
|
75981
|
75981
75981-10031-04 Stripe, Front Fender, Rh No.1[01.1972 - 10.1973] KP31..SR,ST BLUE,BLUE |
75981-10031-04 |
US $39.89 |
||
| replacement | |||||
|
75981
|
75981
75981-10031-14
Stripe, Front Fender, Rh No.1
[01.1972 - 10.1973] KP31..SR,ST BLUE,BLUE |
75981-10031-14 |
— | ||
|
75981
|
75981
75981-10031-08
Stripe, Front Fender, Rh No.1
[01.1972 - 11.1975] KP31..SR,ST WHITE,IVORY |
75981-10031-08 |
— | ||
|
75981
|
75981
75981-10031-09
Stripe, Front Fender, Rh No.1
[10.1973 - 11.1975] KP31..SR,ST YELLOW,YELLOW |
75981-10031-09 |
— | ||
|
75981
|
75981
75981-10031-14
Stripe, Front Fender, Rh No.1
[10.1973 - 11.1975] KP31..SR,ST BLUE,BLUE |
75981-10031-14 |
— | ||
|
75981
|
75981
75991-10020
Stripe, Front Fender, Rh No.1
[03.1971 - 12.1971] KP31..SR BLACK |
75991-10020 |
— | ||
|
75981
|
75981
75991-10904
Stripe, Front Fender, Rh No.1
[03.1971 - 12.1971] KP31..SR DARK BLUE |
75991-10904 |
— | ||
|
75982
|
75982
75982-10011-01
Stripe, Front Fender, Lh No.1
[01.1972 - 11.1975] KP31..SR,ST BLACK,BLACK |
75982-10011-01 |
— | ||
|
75982
|
75982
75982-10011-04 Stripe, Front Fender, Lh No.1[01.1972 - 10.1973] KP31..SR,ST BLUE,BLUE |
75982-10011-04 |
US $39.89 |
||
| replacement | |||||
|
75982
|
75982
75982-10011-14
Stripe, Front Fender, Lh No.1
[01.1972 - 10.1973] KP31..SR,ST BLUE,BLUE |
75982-10011-14 |
— | ||
|
75982
|
75982
75982-10011-08
Stripe, Front Fender, Lh No.1
[01.1972 - 11.1975] KP31..SR,ST WHITE,IVORY |
75982-10011-08 |
— | ||
|
75982
|
75982
75982-10011-09
Stripe, Front Fender, Lh No.1
[10.1973 - 11.1975] KP31..SR,ST YELLOW,YELLOW |
75982-10011-09 |
— | ||
|
75982
|
75982
75982-10011-14
Stripe, Front Fender, Lh No.1
[10.1973 - 11.1975] KP31..SR,ST BLUE,BLUE |
75982-10011-14 |
— | ||
|
75982
|
75982
75992-10020
Stripe, Front Fender, Lh No.1
[03.1971 - 12.1971] KP31..SR BLACK |
75992-10020 |
— | ||
|
75982
|
75982
75992-10905
Stripe, Front Fender, Lh No.1
[03.1971 - 12.1971] KP31..SR DARK BLUE |
75992-10905 |
— | ||
|
75991
|
75991
75998-10010-01
Stripe, Quarter, Rh No.1
[01.1972 - 10.1974] KP31..SR,ST BLACK,BLACK |
75998-10010-01 |
— | ||
|
75991
|
75991
75998-10010-04 Stripe, Quarter, Rh No.1[01.1972 - 10.1973] KP31..SR,ST BLUE,BLUE |
75998-10010-04 |
US $40.48 |
||
| replacement | |||||
|
75991
|
75991
75998-10010-14
Stripe, Quarter, Rh No.1
[01.1972 - 10.1973] KP31..SR,ST BLUE,BLUE |
75998-10010-14 |
— | ||
|
75991
|
75991
75998-10010-08
Stripe, Quarter, Rh No.1
[01.1972 - 10.1974] KP31..SR,ST WHITE,IVORY |
75998-10010-08 |
— | ||
|
75991
|
75991
75998-10010-09
Stripe, Quarter, Rh No.1
[10.1973 - 10.1974] KP31..SR,ST YELLOW,YELLOW |
75998-10010-09 |
— | ||
|
75991
|
75991
75998-10010-14
Stripe, Quarter, Rh No.1
[10.1973 - 10.1974] KP31..SR,ST BLUE,BLUE |
75998-10010-14 |
— | ||
|
75992
|
75992
75999-10010-01
Stripe, Quarter, Lh No.1
[01.1972 - 10.1974] KP31..SR,ST BLACK,BLACK |
75999-10010-01 |
— | ||
|
75992
|
75992
75999-10010-04 Stripe, Quarter, Lh No.1[01.1972 - 10.1973] KP31..SR,ST BLUE,BLUE |
75999-10010-04 |
US $24.02 |
||
| replacement | |||||
|
75992
|
75992
75999-10010-14
Stripe, Quarter, Lh No.1
[01.1972 - 10.1973] KP31..SR,ST BLUE,BLUE |
75999-10010-14 |
— | ||
|
75992
|
75992
75999-10010-08
Stripe, Quarter, Lh No.1
[01.1972 - 10.1974] KP31..SR,ST WHITE,IVORY |
75999-10010-08 |
— | ||
|
75992
|
75992
75999-10010-09
Stripe, Quarter, Lh No.1
[10.1973 - 10.1974] KP31..SR,ST YELLOW,YELLOW |
75999-10010-09 |
— | ||
|
75992
|
75992
75999-10010-14
Stripe, Quarter, Lh No.1
[10.1973 - 10.1974] KP31..SR,ST BLUE,BLUE |
75999-10010-14 |
— | ||
|
76977
|
76977
75997-10010-01
Stripe, Rear Body Back
[01.1972 - 10.1974] KP31..SR,ST BLACK,BLACK |
75997-10010-01 |
— | ||
|
76977
|
76977
75997-10010-04 Stripe, Rear Body Back[01.1972 - 10.1973] KP31..SR,ST BLUE,BLUE |
75997-10010-04 |
US $57.95 |
||
| replacement | |||||
|
76977
|
76977
75997-10010-14
Stripe, Rear Body Back
[01.1972 - 10.1973] KP31..SR,ST BLUE,BLUE |
75997-10010-14 |
— | ||
|
76977
|
76977
75997-10010-08
Stripe, Rear Body Back
[01.1972 - 10.1974] KP31..SR,ST WHITE,IVORY |
75997-10010-08 |
— | ||
|
76977
|
76977
75997-10010-09
Stripe, Rear Body Back
[10.1973 - 10.1974] KP31..SR,ST YELLOW,YELLOW |
75997-10010-09 |
— | ||
|
76977
|
76977
75997-10010-14
Stripe, Rear Body Back
[10.1973 - 10.1974] KP31..SR,ST BLUE,BLUE |
75997-10010-14 |
— | ||
