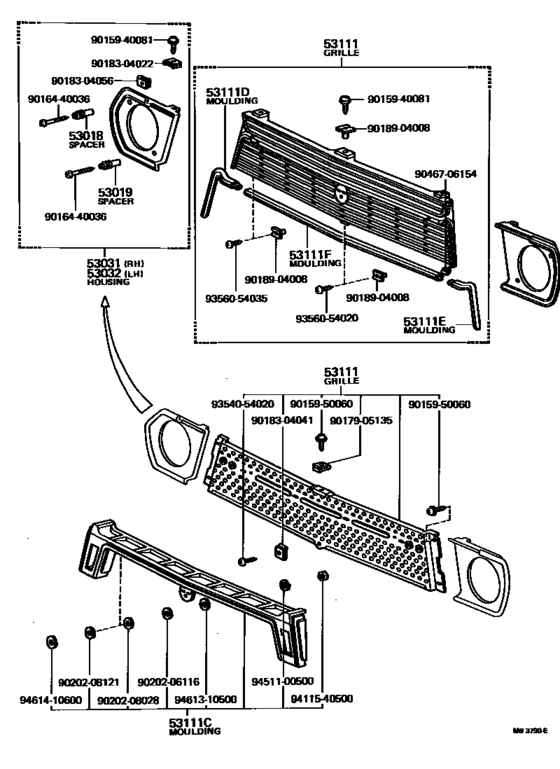

Radiator Grille ([10.1973 - 11.1975] (7310-7511)) Diagram Toyota PUBLICA
- Year
- 1971 - 1975
- Sales region
- Japan
- Frame
- KP31
- grade
- SR
- body
- SED
- ENGINE
- 3KBR
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 03.1971
- To
- 11.1975
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53018
|
53018
53018-10010
Spacer Sub-Assy, Headlamp Housing, No.1
[01.1972 - 08.1988] KP3#,50 L=46.5 |
53018-10010 |
— | ||
|
53019
|
53019
53019-10010
Spacer Sub-Assy, Headlamp Housing, No.2
[01.1972 - 08.1988] KP3#,50 L=36 |
53019-10010 |
— | ||
|
53031
|
53031
53131-19105
Housing, Headlamp, Rh
[03.1971 - 12.1971] KP31..SR |
53131-19105 |
— | ||
|
53031
|
53031
53131-19155
Housing, Headlamp, Rh
[01.1972 - 10.1973] KP31..S,SR,ST |
53131-19155 |
— | ||
|
53031
|
53031
53131-19156
Housing, Headlamp, Rh
[10.1973 - 11.1975] KP31..SR,ST |
53131-19156 |
— | ||
|
53032
|
53032
53132-19105
Housing, Headlamp, Lh
[03.1971 - 12.1971] KP31..SR |
53132-19105 |
— | ||
|
53032
|
53032
53132-19155
Housing, Headlamp, Lh
[01.1972 - 10.1973] KP31..S,SR,ST |
53132-19155 |
— | ||
|
53032
|
53032
53132-19156
Housing, Headlamp, Lh
[10.1973 - 11.1975] KP31..SR,ST |
53132-19156 |
— | ||
|
53111
|
53111
53101-19185
Grille, Radiator
[03.1971 - 12.1971] KP31..SR |
53101-19185 |
— | ||
|
53111
|
53111
53101-19205 Grille, Radiator[01.1972 - 10.1973] KP31..S,SR |
53101-19205 |
US $101.92 |
||
| replacement | |||||
|
53111
|
53111
53101-19216 Grille, Radiator[01.1972 - 10.1973] KP31..S,SR |
53101-19216 |
US $101.92 |
||
|
53111
|
53111
53101-19206 Grille, Radiator[10.1973 - 11.1975] KP31..SR |
53101-19206 |
US $101.92 |
||
| replacement | |||||
|
53111
|
53111
53101-19216 Grille, Radiator[10.1973 - 11.1975] KP31..SR |
53101-19216 |
US $101.92 |
||
|
53111
|
53111
53101-19215 Grille, Radiator[01.1972 - 10.1973] KP31..S,SR,ST W/FOGLAMP |
53101-19215 |
US $101.92 |
||
| replacement | |||||
|
53111
|
53111
53101-19216 Grille, Radiator[01.1972 - 10.1973] KP31..S,SR,ST W/FOGLAMP |
53101-19216 |
US $101.92 |
||
|
53111
|
53111
53101-19216 Grille, Radiator[10.1973 - 11.1975] KP31..SR,ST W/FOGLAMP |
53101-19216 |
US $101.92 |
||
|
53111C
|
53111C
53102-19015
Moulding, Radiator Grille, Upper
[01.1972 - 10.1973] KP31..S,SR,ST |
53102-19015 |
— | ||
|
53111C
|
53111C
53121-19015
Moulding, Radiator Grille, Upper
[10.1973 - 11.1975] KP31..SR,ST |
53121-19015 |
— | ||
|
53111D
|
53111D
53122-19025
Moulding, Radiator Grille, Rh
[01.1972 - 10.1973] KP31..SR,ST |
53122-19025 |
— | ||
|
53111E
|
53111E
53123-19025
Moulding, Radiator Grille, Lh
[01.1972 - 10.1973] KP31..SR,ST |
53123-19025 |
— | ||
|
9015940081
|
9015940081
90159-40081 New Genuine Part |
90159-40081 |
US $1.89 |
||
|
9015950060
|
9015950060
90159-50060
New Genuine Part
|
90159-50060 |
— | ||
| replacement | |||||
|
9015950060
|
9015950060
93315-55014 SCREW,W/WASHER |
93315-55014 |
US $3.58 |
||
|
9016440036
|
9016440036
90164-40036 New Genuine Part |
90164-40036 |
US $1.89 |
||
|
9017905135
|
9017905135
90179-05135 New Genuine Part |
90179-05135 |
US $2.48 |
||
|
9018304022
|
9018304022
90183-04022 Nut, Spring |
90183-04022 |
US $2.48 |
||
|
9018304041
|
9018304041
90183-04041 New Genuine Part |
90183-04041 |
US $2.18 |
||
|
9018304056
|
9018304056
90183-04056 Nut, Spring |
90183-04056 |
from US $1.10 |
||
|
9018904008
|
9018904008
90189-04008 Screw Grommet |
90189-04008 |
US $2.33 |
||
|
9020206116
|
9020206116
90202-06116
New Genuine Part
|
90202-06116 |
— | ||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9020208121
|
9020208121
90202-08121
New Genuine Part
|
90202-08121 |
— | ||
|
9046706154
|
9046706154
90467-06154 New Genuine Part |
90467-06154 |
US $3.35 |
||
|
9354054020
|
9354054020
93540-54020 New Genuine Part |
93540-54020 |
US $1.25 |
||
|
9356054020
|
9356054020
93560-54020 New Genuine Part |
93560-54020 |
US $1.97 |
||
|
9356054035
|
9356054035
93560-54035 New Genuine Part |
93560-54035 |
US $0.73 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.97 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9461310500
|
9461310500
94613-10500 New Genuine Part |
94613-10500 |
US $3.05 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
