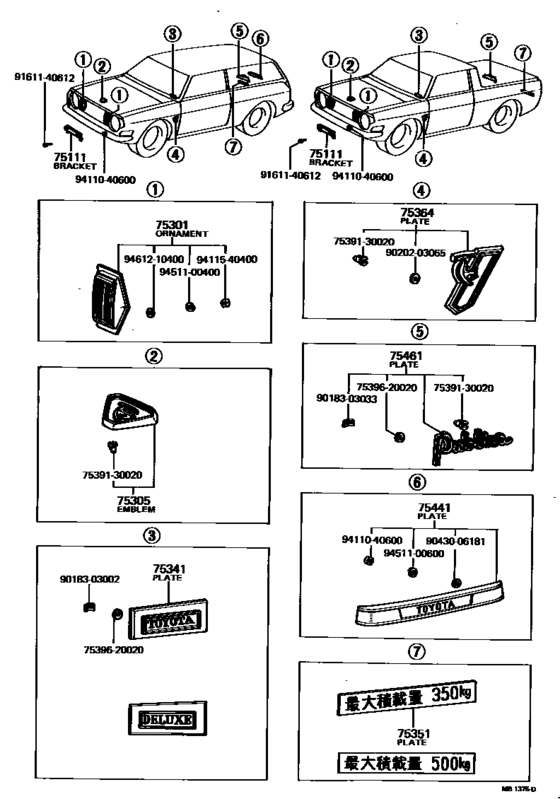

Emblem & Name Plate (Exterior & Interior) ([10.1970 - 12.1971] (7010-7112)KP36,UP36) Diagram Toyota PUBLICA
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- KP36
- grade
- STD
- body
- V
- ENGINE
- 2K
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 11.1975
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75111
|
75111
75111-20010
Bracket, Front License Plate
[04.1969 - 08.1988] KP3#,50,UP3# |
75111-20010 |
— | ||
|
75301
|
75301
75315-19025
Ornament, Radiator Grille (Or Front Panel)
[10.1970 - 12.1971] KP3#,UP3#..DLX,HDX,STD RH |
75315-19025 |
— | ||
|
75301
|
75301
75316-19025
Ornament, Radiator Grille (Or Front Panel)
[10.1970 - 12.1971] KP3#,UP3#..DLX,HDX,STD LH |
75316-19025 |
— | ||
|
75305
|
75305
75330-10030
Emblem, Hood
[10.1970 - 12.1971] KP3#,UP3# |
75330-10030 |
— | ||
|
75341
|
75341
55435-10030
Plate, Instrument Panel Name, No.1
[10.1970 - 11.1975] KP30,31,36,UP3#..S,SR,STD |
55435-10030 |
— | ||
|
75351
|
75351
75471-11030
Plate, Rear Name, No.6 (Maximum Load)
[04.1969 - 10.1970] KP36,UP36..V |
75471-11030 |
— | ||
|
75351
|
75351
75471-11031 Plate, Rear Name, No.6 (Maximum Load)[10.1970 - 09.1978] KP36,37,UP36..V |
75471-11031 |
US $3.20 |
||
| replacement | |||||
|
75351
|
75351
75471-60050 Mark, Maximum Load (350kg)[10.1970 - 09.1978] KP36,37,UP36..V |
75471-60050 |
US $12.19 |
||
|
75441
|
75441
75403-19015
Plate, Rear Name, No.1
[04.1969 - 10.1970] KP36..V |
75403-19015 |
— | ||
|
75441
|
75441
75403-19016
Plate, Rear Name, No.1
[10.1970 - 12.1971] KP36,UP36..V |
75403-19016 |
— | ||
|
75441
|
75441
75403-19017
Plate, Rear Name, No.1
[01.1972 - 09.1978] KP36,37..V |
75403-19017 |
— | ||
|
75461
|
75461
75442-19095
Plate, Rear Name, No.2 (Model Mark)
[04.1969 - 10.1970] KP3#,UP3# |
75442-19095 |
— | ||
|
75461
|
75461
75442-19115
Plate, Rear Name, No.2 (Model Mark)
[10.1970 - 12.1971] KP36,UP36 |
75442-19115 |
— | ||
|
7539130020
|
7539130020
75391-30020 New Genuine Part |
75391-30020 |
US $2.77 |
||
| replacement | |||||
|
7539130020
|
7539130020
90468-03095
New Genuine Part
|
90468-03095 |
— | ||
|
7539620020
|
7539620020
75396-20020
Seal(For Heater Switch Hole Cover)
|
75396-20020 |
— | ||
|
9018303002
|
9018303002
90183-03002
New Genuine Part
|
90183-03002 |
— | ||
|
9018303033
|
9018303033
90183-03033 New Genuine Part |
90183-03033 |
US $2.48 |
||
|
9020203065
|
9020203065
90202-03065 New Genuine Part |
90202-03065 |
US $2.62 |
||
|
9043006181
|
9043006181
90430-06181
New Genuine Part
|
90430-06181 |
— | ||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.65 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9461210400
|
9461210400
94612-10400 New Genuine Part |
94612-10400 |
US $2.18 |
||
