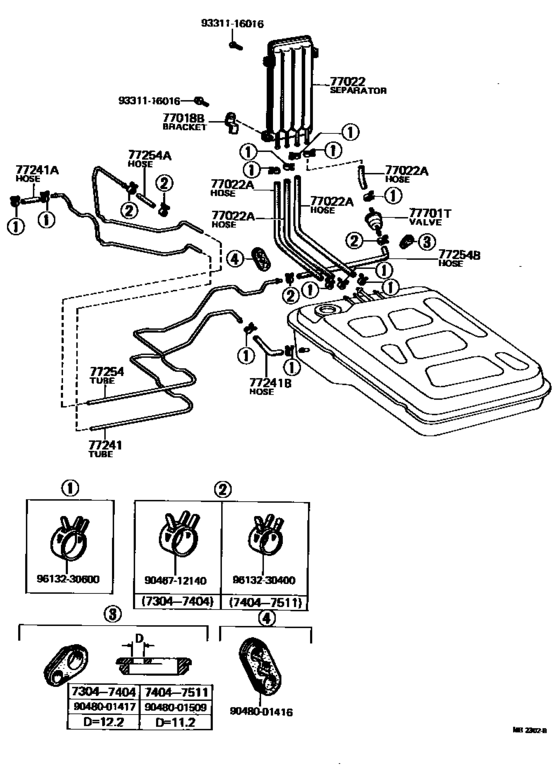

Fuel Tank & Tube ([04.1973 - 11.1975] (7304-7511)V) Diagram Toyota PUBLICA
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- KP36
- grade
- STD
- body
- V
- ENGINE
- 2K
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 11.1975
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77018B
|
77018B
61785-11010
Bracket, Vapour Separator
[04.1969 - 05.1972] KP36,37,UP36..V |
61785-11010 |
— | ||
|
77018B
|
77018B
61785-11020
Bracket, Vapour Separator
[05.1972 - 09.1978] KP36,37..V |
61785-11020 |
— | ||
|
77022
|
77022
77267-11020
Separator Sub-Assy, Fuel Evaporative
[05.1972 - 04.1973] KP36,37..V |
77267-11020 |
— | ||
|
77022
|
77022
77267-11021
Separator Sub-Assy, Fuel Evaporative
[04.1973 - 09.1978] KP36,37..V |
77267-11021 |
— | ||
|
77022A
|
77022A
95331-06008 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.3 (FOR BREATHER TUBE) [04.1973 - 11.1975] KP36,37..V ＊Ｈ，Ｌ＝８０ |
95331-06008 |
US $2.33 |
||
| replacement | |||||
|
77022A
|
77022A
95333-06010 Hose, Fuel[04.1973 - 11.1975] KP36,37..V ＊Ｈ，Ｌ＝８０ |
95333-06010 |
US $5.38 |
||
|
77022A
|
77022A
95331-08008 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.3 (FOR BREATHER TUBE) [05.1972 - 04.1973] KP36,37..V ＊Ｈ，Ｌ＝８０ |
95331-08008 |
US $2.48 |
||
| replacement | |||||
|
77022A
|
77022A
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[05.1972 - 04.1973] KP36,37..V ＊Ｈ，Ｌ＝８０ |
95333-08010 |
— | ||
|
77022A
|
77022A
95331-08055
Hose, Fuel(For Fuel Evaporative Separator)
[05.1972 - 04.1973] KP36,37..V ＊Ｈ，Ｌ＝５５０ |
95331-08055 |
— | ||
| replacement | |||||
|
77022A
|
77022A
95333-08060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[05.1972 - 04.1973] KP36,37..V ＊Ｈ，Ｌ＝５５０ |
95333-08060 |
— | ||
|
77022A
|
77022A
95332-06055
Hose, Fuel(For Fuel Evaporative Separator)
[04.1973 - 11.1977] KP36,37..V ＊Ｈ，Ｌ＝５５０ |
95332-06055 |
— | ||
|
77241
|
77241
77241-11060
Tube, Fuel Main, No.1
[04.1969 - 04.1970] KP36,UP36..V |
77241-11060 |
— | ||
|
77241
|
77241
77241-11061
Tube, Fuel Main, No.1
[04.1970 - 10.1971] KP36,UP36..V |
77241-11061 |
— | ||
|
77241
|
77241
77241-11062
Tube, Fuel Main, No.1
[10.1971 - 04.1973] KP36,37,UP36..V |
77241-11062 |
— | ||
|
77241
|
77241
77241-11063
Tube, Fuel Main, No.1
[04.1973 - 10.1973] KP36,37..V |
77241-11063 |
— | ||
|
77241
|
77241
77241-11064
Tube, Fuel Main, No.1
[10.1973 - 11.1975] KP36,37..V |
77241-11064 |
— | ||
|
77241A
|
77241A
90445-12414 Hose, Fuel, No.1 (For Main Tube, No.1)FUEL, NO.1 (FOR MAIN TUBE, NO.1) [04.1969 - 11.1970] KP3#,UP3# L=80 |
90445-12414 |
US $2.91 |
||
| replacement | |||||
|
77241A
|
77241A
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[04.1969 - 11.1970] KP3#,UP3# L=80 |
95333-08010 |
— | ||
|
77241A
|
77241A
90445-12695 Hose, Fuel, No.1 (For Main Tube, No.1)FUEL, NO.1 (FOR MAIN TUBE, NO.1) [11.1970 - 12.1971] KP3#,UP3# L=80 |
90445-12695 |
US $2.91 |
||
| replacement | |||||
|
77241A
|
77241A
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1970 - 12.1971] KP3#,UP3# L=80 |
95333-08010 |
— | ||
|
77241A
|
77241A
95331-06007
Hose, Fuel Pipe, No.1
[04.1973 - 11.1975] KP3# ＊Ｈ，Ｌ＝７０ |
95331-06007 |
— | ||
|
77241A
|
77241A
95331-08008 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.3 (FOR BREATHER TUBE) [01.1972 - 04.1973] KP3# ＊Ｈ，Ｌ＝８０ |
95331-08008 |
US $2.48 |
||
| replacement | |||||
|
77241A
|
77241A
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[01.1972 - 04.1973] KP3# ＊Ｈ，Ｌ＝８０ |
95333-08010 |
— | ||
|
77241B
|
77241B
90445-12181 Hose, Fuel, No.2 (For Main Tube, No.1)FUEL, NO.2 (FOR MAIN TUBE, NO.1) [04.1969 - 11.1969] KP36,UP36 L=90 |
90445-12181 |
US $2.91 |
||
| replacement | |||||
|
77241B
|
77241B
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[04.1969 - 11.1969] KP36,UP36 L=90 |
95333-08010 |
— | ||
|
77241B
|
77241B
90445-12467 Hose, Fuel, No.2 (For Main Tube, No.1)FUEL, NO.2 (FOR MAIN TUBE, NO.1) [11.1969 - 11.1970] KP36,UP36 L=90 |
90445-12467 |
US $2.91 |
||
| replacement | |||||
|
77241B
|
77241B
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1969 - 11.1970] KP36,UP36 L=90 |
95333-08010 |
— | ||
|
77241B
|
77241B
90445-12678 Hose, Fuel, No.2 (For Main Tube, No.1)FUEL, NO.2 (FOR MAIN TUBE, NO.1) [11.1970 - 12.1971] KP36,UP36 L=90 |
90445-12678 |
US $2.91 |
||
| replacement | |||||
|
77241B
|
77241B
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1970 - 12.1971] KP36,UP36 L=90 |
95333-08010 |
— | ||
|
77241B
|
77241B
95331-06015
Hose, Fuel, No.2 (For Main Tube, No.1)
[04.1973 - 11.1977] KP36,37..V ＊Ｈ，Ｌ＝１５０ |
95331-06015 |
— | ||
|
77241B
|
77241B
95331-08009 Hose, Fuel, No.1(For Fuel Expansion Tank)FUEL, NO.1(FOR FUEL EXPANSION TANK) [01.1972 - 04.1973] KP36,37 ＊Ｈ，Ｌ＝９０ |
95331-08009 |
US $2.91 |
||
| replacement | |||||
|
77241B
|
77241B
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[01.1972 - 04.1973] KP36,37 ＊Ｈ，Ｌ＝９０ |
95333-08010 |
— | ||
|
77254
|
77254
77254-11010
Tube, Fuel Emission, No.1
[04.1973 - 10.1973] KP36,37..V |
77254-11010 |
— | ||
|
77254
|
77254
77254-11011
Tube, Fuel Emission, No.1
[10.1973 - 04.1974] KP36,37..V |
77254-11011 |
— | ||
|
77254
|
77254
77254-11012
Tube, Fuel Emission, No.1
[04.1974 - 11.1975] KP36,37..V |
77254-11012 |
— | ||
|
77254A
|
77254A
95331-04022 Hose, Fuel, No.1 (For Emission Tube, No.1)FUEL, NO.1(FOR RETURN TUBE, NO.1) [04.1974 - 11.1975] KP3# ＊Ｈ，Ｌ＝２２０ |
95331-04022 |
US $5.39 |
||
| replacement | |||||
|
77254A
|
77254A
95333-04030 Hose, No.2(For Lpg Regulator To Lpg Carburetor)[04.1974 - 11.1975] KP3# ＊Ｈ，Ｌ＝２２０ |
95333-04030 |
US $8.56 |
||
|
77254A
|
77254A
95331-06022 Hose, Fuel, No.2 (For Main Tube, No.2)[04.1973 - 04.1974] KP3# ＊Ｈ，Ｌ＝２２０ |
95331-06022 |
US $4.22 |
||
| replacement | |||||
|
77254A
|
77254A
95333-06030
Hose, Fuel
[04.1973 - 04.1974] KP3# ＊Ｈ，Ｌ＝２２０ |
95333-06030 |
— | ||
|
77254B
|
77254B
95332-04048
Hose, Fuel, No.2 (For Emission Tube, No.1)
[04.1974 - 11.1975] KP36,37..V ＊Ｈ，Ｌ＝４８０ |
95332-04048 |
— | ||
|
77254B
|
77254B
95332-06048 Hose, Fuel, No.2 (For Emission Tube, No.1)FUEL, NO.1(FOR RETURN TUBE, NO.1) [04.1973 - 04.1974] KP36,37..V ＊Ｈ，Ｌ＝４８０ |
95332-06048 |
US $9.17 |
||
| replacement | |||||
|
77254B
|
77254B
95333-06060 Hose, Fuel[04.1973 - 04.1974] KP36,37..V ＊Ｈ，Ｌ＝４８０ |
95333-06060 |
from US $17.08 |
||
|
77701T
|
77701T
90917-10004
Valve, Check (For Main Fuel Tank)
[05.1972 - 06.1972] KP36,37 |
90917-10004 |
— | ||
| replacement | |||||
|
77701T
|
77701T
90917-10012
Valve, Check (For Main Fuel Tank)
[05.1972 - 06.1972] KP36,37 |
90917-10012 |
— | ||
|
77701T
|
77701T
90917-10012
Valve, Check (For Main Fuel Tank)
[06.1972 - 04.1973] KP36,37 |
90917-10012 |
— | ||
|
77701T
|
77701T
90917-10020 Valve, Check (For Main Fuel Tank)[04.1973 - 04.1974] KP3# |
90917-10020 |
from US $26.54 |
||
|
77701T
|
77701T
90917-10029 Valve, Check (For Main Fuel Tank)CHECK (FOR MAIN FUEL TANK) [04.1974 - 11.1975] KP3# |
90917-10029 |
US $30.43 |
||
|
9046712140
|
9046712140
90467-12140 Clip(For Fuel Hose) |
90467-12140 |
US $2.18 |
||
| replacement | |||||
|
9046712140
|
9046712140
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9048001416
|
9048001416
90480-01416 New Genuine Part |
90480-01416 |
US $7.28 |
||
|
9048001417
|
9048001417
90480-01417 New Genuine Part |
90480-01417 |
US $7.28 |
||
|
9048001509
|
9048001509
90480-01509 New Genuine Part |
90480-01509 |
US $7.28 |
||
|
9331116016
|
9331116016
93311-16016 SCREW |
93311-16016 |
US $2.15 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
