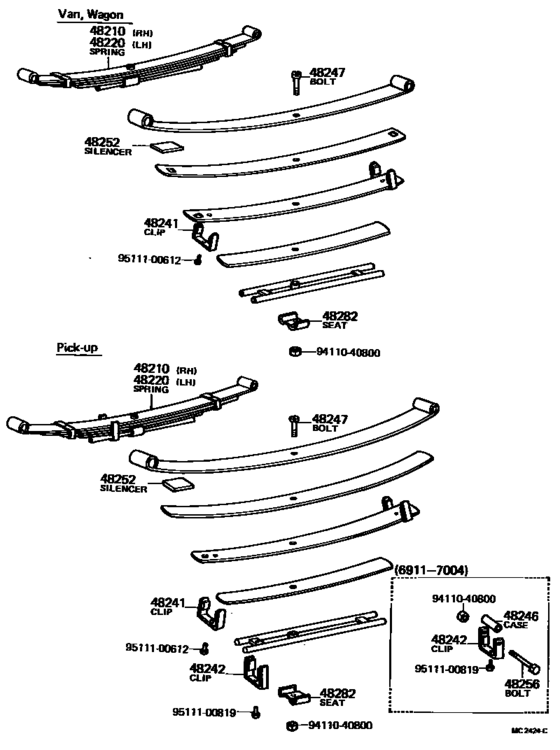

Rear Spring & Shock Absorber ([04.1969 - 10.1973] (6904-7310)KP36,37,UP36) Diagram Toyota PUBLICA
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- KP36
- grade
- DLX
- body
- V
- ENGINE
- 2K
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 11.1975
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-11050 Spring Assy, Rear RhREAR RH [04.1969 - 08.1969] KP36 |
48210-11050 |
US $346.53 |
||
| replacement | |||||
|
48210
|
48210
48210-11052
Spring Assy, Rear Rh
[04.1969 - 08.1969] KP36 |
48210-11052 |
— | ||
|
48210
|
48210
48210-11051 Spring Assy, Rear RhREAR RH [08.1969 - 02.1971] KP36..V |
48210-11051 |
US $346.53 |
||
| replacement | |||||
|
48210
|
48210
48210-11052
Spring Assy, Rear Rh
[08.1969 - 02.1971] KP36..V |
48210-11052 |
— | ||
|
48210
|
48210
48210-11052
Spring Assy, Rear Rh
[03.1971 - 10.1973] KP36,37..V |
48210-11052 |
— | ||
|
48210
|
48210
48210-11053
Spring Assy, Rear Rh
[10.1973 - 09.1978] KP36,37..V |
48210-11053 |
— | ||
|
48220
|
48220
48210-11050 Spring Assy, Rear RhREAR RH [04.1969 - 08.1969] KP36 |
48210-11050 |
US $346.53 |
||
| replacement | |||||
|
48220
|
48220
48210-11052
Spring Assy, Rear Rh
[04.1969 - 08.1969] KP36 |
48210-11052 |
— | ||
|
48220
|
48220
48210-11051 Spring Assy, Rear RhREAR RH [08.1969 - 02.1971] KP36..V |
48210-11051 |
US $346.53 |
||
| replacement | |||||
|
48220
|
48220
48210-11052
Spring Assy, Rear Rh
[08.1969 - 02.1971] KP36..V |
48210-11052 |
— | ||
|
48220
|
48220
48210-11052
Spring Assy, Rear Rh
[03.1971 - 10.1973] KP36,37..V |
48210-11052 |
— | ||
|
48220
|
48220
48210-11053
Spring Assy, Rear Rh
[10.1973 - 09.1978] KP36,37..V |
48210-11053 |
— | ||
|
48241
|
48241
48241-10070 Clip, Rear Spring, No.1REAR SPRING, NO.1 [03.1971 - 09.1978] KP36,37..V |
48241-10070 |
US $7.86 |
||
| replacement | |||||
|
48241
|
48241
48242-10060 Clip, Rear Spring, No.1REAR SPRING, NO.1 [03.1971 - 09.1978] KP36,37..V |
48242-10060 |
US $6.55 |
||
|
48241
|
48241
48241-11050 Clip, Rear Spring, No.1REAR SPRING, NO.1 [04.1969 - 02.1971] KP36,UP36..V |
48241-11050 |
US $7.86 |
||
| replacement | |||||
|
48241
|
48241
48242-10060 Clip, Rear Spring, No.1REAR SPRING, NO.1 [04.1969 - 02.1971] KP36,UP36..V |
48242-10060 |
US $6.55 |
||
|
48242
|
48242
48241-11053
Clip, Rear Spring, No.2
[10.1973 - 04.1974] KP36,37..V |
48241-11053 |
— | ||
|
48242
|
48242
48242-11071
Clip, Rear Spring, No.2
[04.1974 - 08.1988] KP36,37,38,39 |
48242-11071 |
— | ||
|
48247
|
48247
48247-11050
Bolt, Rear Spring, Center
[04.1969 - 09.1978] KP36,37..V |
48247-11050 |
— | ||
|
48252
|
48252
48252-10012 Silencer, Rear SpringREAR SPRING [04.1969 - 10.1970] KP3#,UP3# |
48252-10012 |
US $3.20 |
||
|
48252
|
48252
48252-30010 Silencer, Rear Spring[10.1970 - 12.1971] KP30,36,UP36..SED,V |
48252-30010 |
US $2.18 |
||
|
48282
|
48282
48282-11010
Seat, Rear Helper Spring
[04.1969 - 04.1974] KP36,37 |
48282-11010 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9511100612
|
9511100612
95111-00612
New Genuine Part
|
95111-00612 |
— | ||
|
9511100819
|
9511100819
95111-00819 New Genuine Part |
95111-00819 |
US $1.60 |
||
