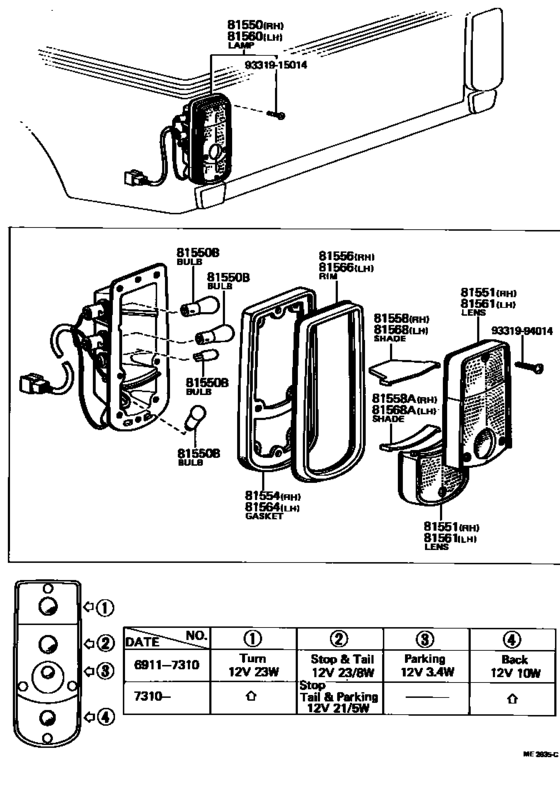

Rear Combination Lamp ([11.1969 - ] (6911- )PIC) Diagram Toyota PUBLICA
- Year
- 1975 - 1979
- Sales region
- Japan
- Frame
- KP37
- grade
- STD
- body
- PIC
- ENGINE
- 3KHJ
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 11.1975
- To
- 07.1979
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-19176
Lamp Assy, Rear Combination, Rh
[10.1973 - 08.1988] KP36,37,38,39..PIC |
81550-19176 |
— | ||
|
81550B
|
81550B
99132-11100 Bulb, Room Lamp, No.1[11.1969 - 08.1988] KP36,37,38,39..PIC １２Ｖ １０Ｗ,12V 10W |
99132-11100 |
from US $2.69 |
||
|
81550B
|
81550B
99132-11230 Bulb, Fog Lamp[01.1972 - 08.1988] KP3#,50 １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
US $3.05 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[10.1973 - 08.1988] KP3#,50 １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $2.74 |
||
|
81551
|
81551
81551-11071
Lens, Rear Combination Lamp, Rh
[10.1973 - 08.1988] KP36,37,38,39..PIC UPR |
81551-11071 |
— | ||
|
81551
|
81551
81559-11070
Lens, Rear Combination Lamp, Rh
[11.1969 - 08.1988] KP36,37,38,39..PIC LWR |
81559-11070 |
— | ||
|
81554
|
81554
81554-11070
Gasket, Rear Combination Lamp Body, Rh
[11.1969 - 08.1988] KP36,37,38,39..PIC |
81554-11070 |
— | ||
|
81556
|
81556
81556-11070
Rim, Rear Combination Lamp, Rh
[11.1969 - 08.1988] KP36,37,38,39..PIC |
81556-11070 |
— | ||
|
81558
|
81558
81557-11070 Shade, Rear Combination Lamp, No.1 RhREAR COMBINATION LAMP, NO.1 RH [11.1969 - 08.1988] KP36,37,38,39..PIC |
81557-11070 |
US $1.60 |
||
|
81558A
|
81558A
81558-11070 Shade, Rear Combination Lamp, No.2 RhREAR COMBINATION LAMP, NO.2 RH [11.1969 - 08.1988] KP36,37,38,39..PIC |
81558-11070 |
US $2.77 |
||
|
81560
|
81560
81560-19166
Lamp Assy, Rear Combination, Lh
[10.1973 - 08.1988] KP36,37,38,39..PIC |
81560-19166 |
— | ||
|
81561
|
81561
81551-11071
Lens, Rear Combination Lamp, Rh
[10.1973 - 08.1988] KP36,37,38,39..PIC UPR |
81551-11071 |
— | ||
|
81561
|
81561
81559-11070
Lens, Rear Combination Lamp, Rh
[11.1969 - 08.1988] KP36,37,38,39..PIC LWR |
81559-11070 |
— | ||
|
81564
|
81564
81554-11070
Gasket, Rear Combination Lamp Body, Rh
[11.1969 - 08.1988] KP36,37,38,39..PIC |
81554-11070 |
— | ||
|
81566
|
81566
81556-11070
Rim, Rear Combination Lamp, Rh
[11.1969 - 08.1988] KP36,37,38,39..PIC |
81556-11070 |
— | ||
|
81568
|
81568
81557-11070 Shade, Rear Combination Lamp, No.1 RhREAR COMBINATION LAMP, NO.1 RH [11.1969 - 08.1988] KP36,37,38,39..PIC |
81557-11070 |
US $1.60 |
||
|
81568A
|
81568A
81558-11070 Shade, Rear Combination Lamp, No.2 RhREAR COMBINATION LAMP, NO.2 RH [11.1969 - 08.1988] KP36,37,38,39..PIC |
81558-11070 |
US $2.77 |
||
|
9331915014
|
9331915014
93319-15014 Screw, Cover Set, No.1 |
93319-15014 |
US $2.51 |
||
|
9331994014
|
9331994014
93319-94014 New Genuine Part |
93319-94014 |
US $2.18 |
||
| replacement | |||||
|
9331994014
|
9331994014
93219-64014 New Genuine Part |
93219-64014 |
US $0.61 |
||
