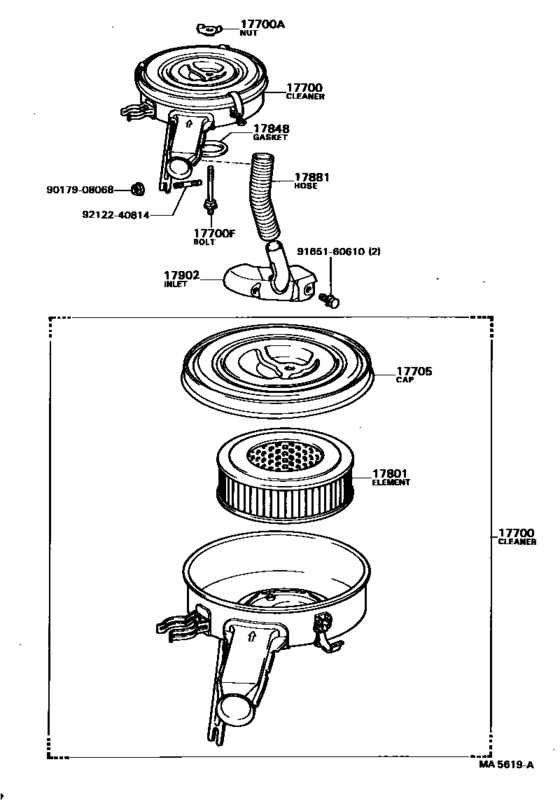

Air Cleaner ([01.1982 - ] (8201- )) Diagram Toyota PUBLICA
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- KP39
- grade
- DLX
- body
- PIC
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 01.1982
- To
- 08.1985
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-13350 Cleaner Assy, AirAIR [01.1982 - 08.1988] 4KJ..KP39 |
17700-13350 |
US $228.59 |
||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[01.1982 - 08.1988] 4KJ..KP39 |
90175-06003 |
from US $1.18 |
||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[01.1982 - 08.1988] 4KJ..KP39 |
90116-06142 |
US $2.53 |
||
|
17705
|
17705
17705-13011
Cap Sub-Assy, Air Cleaner
[01.1982 - 08.1988] 4KJ..KP39 |
17705-13011 |
— | ||
|
17801
|
17801
17801-13010 Element Sub-Assy, Air Cleaner Filter[01.1982 - 08.1988] 4KJ..KP39 |
17801-13010 |
US $19.49 |
||
|
17848
|
17848
17848-13010
Gasket, Air Cleaner To Carburetor
[01.1982 - 08.1988] 4KJ..KP39 |
17848-13010 |
— | ||
| replacement | |||||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[01.1982 - 08.1988] 4KJ..KP39 |
17848-10021 |
US $5.24 |
||
|
17881
|
17881
17881-34040
Hose, Air Cleaner, No.1
[01.1982 - 10.1987] 4KJ..KP39 |
17881-34040 |
— | ||
|
17902
|
17902
17895-13010 Inlet Sub-Assy, Air Cleaner, No.2[01.1982 - 08.1988] 4KJ..KP39 |
17895-13010 |
US $90.27 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.78 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
|
9212240814
|
9212240814
92122-40814 Bolt, Stud(For Oil Pan) |
92122-40814 |
US $2.04 |
||
