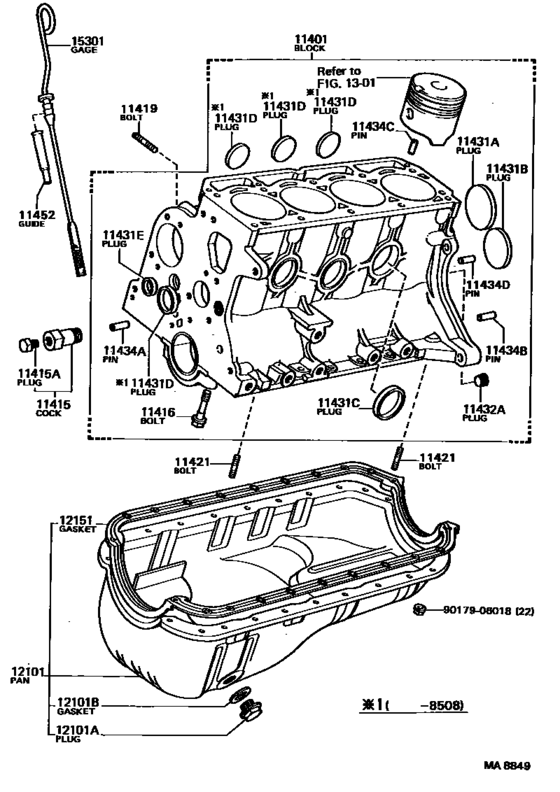

Cylinder Block ([06.1982 - ] (8206- )) Diagram Toyota PUBLICA
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- KP39
- grade
- DLX
- body
- PIC
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 01.1982
- To
- 08.1985
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-19036 Block Sub-Assy, CylinderCYLINDER [01.1982 - 06.1982] 4KJ..KP39 |
11401-19036 |
US $2,358.72 |
||
| replacement | |||||
|
11401
|
11401
11401-19038 Block Sub-Assy, Cylinder[01.1982 - 06.1982] 4KJ..KP39 |
11401-19038 |
US $2,256.80 |
||
|
11401
|
11401
11401-19037 Block Sub-Assy, Cylinder[06.1982 - 11.1984] 4KJ..KP39 |
11401-19037 |
US $2,329.60 |
||
| replacement | |||||
|
11401
|
11401
11401-19038 Block Sub-Assy, Cylinder[06.1982 - 11.1984] 4KJ..KP39 |
11401-19038 |
US $2,256.80 |
||
|
11401
|
11401
11401-19038 Block Sub-Assy, Cylinder[11.1984 - 08.1988] 4KJ..KP39 |
11401-19038 |
US $2,256.80 |
||
|
11415
|
11415
96431-03850
Cock Sub-Assy, Water Drain(For Cylinder Block)
[05.1979 - 04.1985] 3KHJ,4KJ..KP3# |
96431-03850 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53850 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.1979 - 04.1985] 3KHJ,4KJ..KP3# |
96431-53850 |
US $5.42 |
||
|
11415
|
11415
96431-53850 Cock Sub-Assy, Water Drain(For Cylinder Block)[04.1985 - 05.1986] 4KJ..KP39 |
96431-53850 |
US $5.42 |
||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[04.1969 - 04.1985] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 L=28 |
96431-23814 |
from US $6.76 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[04.1985 - 08.1988] 4KJ..KP39 L=24 |
96432-23814 |
— | ||
|
11416
|
11416
90910-02019 Bolt(For Crankshaft Bearing Cap Set)[04.1969 - 08.1988] KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 *10-1.25PX55-18 |
90910-02019 |
US $3.03 |
||
|
11419
|
11419
90116-08102 Bolt, Stud(For Fuel Pump)[11.1979 - 08.1988] 3KHJ,4KJ..KP3# L=37,S=10&21 |
90116-08102 |
US $2.91 |
||
|
11421
|
11421
90116-06006 Bolt, Stud(For Timing Gear Cover)[02.1978 - 08.1983] 3KHJ,4KJ..KP3# L=26.4,S=12&12 |
90116-06006 |
US $2.62 |
||
|
11421
|
11421
90116-06012 Bolt, Stud(For Timing Gear Cover)[07.1978 - 08.1983] 3KHJ,4KJ..KP3# L=26,S=12&12 |
90116-06012 |
US $2.62 |
||
|
11431A
|
11431A
90331-47025 Plug, Tight, No.1(For Cylinder Block)[04.1969 - 08.1988] KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 OD=46.5 |
90331-47025 |
US $2.89 |
||
|
11431B
|
11431B
96411-44500 Plug, Tight, No.4[12.1973 - 08.1988] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 OD=45 |
96411-44500 |
from US $3.30 |
||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[12.1973 - 08.1988] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 OD=35 |
96411-43500 |
from US $3.48 |
||
|
11431D
|
11431D
96411-42500 Plug, Tight, No.1[12.1973 - 08.1985] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 OD=25 |
96411-42500 |
from US $2.95 |
||
|
11431E
|
11431E
96412-01800 Plug, Tight, No.5(For Cylinder Block)[04.1969 - 08.1988] KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 OD=18 |
96412-01800 |
US $1.05 |
||
|
11432A
|
11432A
90344-53011 Plug, W/head Taper Screw, No.1[04.1969 - 08.1988] KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
90344-53011 |
US $4.30 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[04.1969 - 08.1988] KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 長さ＝１８，外径＝８,L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[04.1969 - 08.1988] KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 長さ＝２２，外径＝１０,L=22,OD=10 |
90250-10113 |
from US $0.97 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[11.1977 - 08.1988] 3K#,4KJ..KP3#,50 長さ＝１８，外径＝８,L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11434D
|
11434D
90250-08120 Pin, Straight, No.1[04.1969 - 08.1988] KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 長さ＝１８，外径＝８,L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11452
|
11452
11452-13010 Guide, Oil Level Gage[07.1977 - 08.1988] 3K#,4KJ..KP3#,50 |
11452-13010 |
US $6.12 |
||
|
12101
|
12101
12101-19015 Pan Sub-Assy, OilOIL [01.1982 - 08.1983] 4KJ..KP39 |
12101-19015 |
US $183.46 |
||
| replacement | |||||
|
12101
|
12101
12101-19066 Pan Sub-assy, Oil[01.1982 - 08.1983] 4KJ..KP39 |
12101-19066 |
US $182 |
||
|
12101
|
12101
12101-19016 Pan Sub-Assy, Oil[08.1983 - 01.1985] 4KJ..KP39 |
12101-19016 |
US $182 |
||
| replacement | |||||
|
12101
|
12101
12101-19018 Pan Sub-Assy, Oil[08.1983 - 01.1985] 4KJ..KP39 |
12101-19018 |
US $183.46 |
||
|
12101
|
12101
12101-19017 Pan Sub-Assy, Oil[01.1985 - 08.1988] 4KJ..KP39 |
12101-19017 |
US $183.46 |
||
| replacement | |||||
|
12101
|
12101
12101-19018 Pan Sub-Assy, Oil[01.1985 - 08.1988] 4KJ..KP39 |
12101-19018 |
US $183.46 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[01.1985 - 08.1988] 4KJ..KP39 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[01.1985 - 08.1988] 4KJ..KP39 |
90341-T0004 |
US $3.50 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[04.1974 - 01.1985] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[04.1974 - 01.1985] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
90033-41020 |
from US $2.13 |
||
|
12101B
|
12101B
90430-12011
Gasket(For Oil Pan Drain Plug)
[01.1985 - 03.1988] 4KJ..KP39 |
90430-12011 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[01.1985 - 03.1988] 4KJ..KP39 |
90430-12028 |
from US $1.08 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[04.1974 - 01.1985] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[04.1974 - 01.1985] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
90430-18023 |
from US $1.01 |
||
|
12151
|
12151
12151-13010 Gasket, Oil Pan[01.1982 - 08.1983] 4KJ..KP39 |
12151-13010 |
US $29.85 |
||
|
12151
|
12151
12151-13011 Gasket, Oil Pan[08.1983 - 08.1988] 4KJ..KP39 |
12151-13011 |
from US $23.24 |
||
|
15301
|
15301
15301-13010 Gage Sub-Assy, Oil Level[07.1977 - 08.1988] 3K#,4KJ..KP3#,50 |
15301-13010 |
US $13.69 |
||
| replacement | |||||
|
15301
|
15301
15301-13011
Gage Sub-Assy, Oil Level
[07.1977 - 08.1988] 3K#,4KJ..KP3#,50 |
15301-13011 |
— | ||
|
9017906018
|
9017906018
90179-06018 New Genuine Part |
90179-06018 |
US $0.83 |
||
