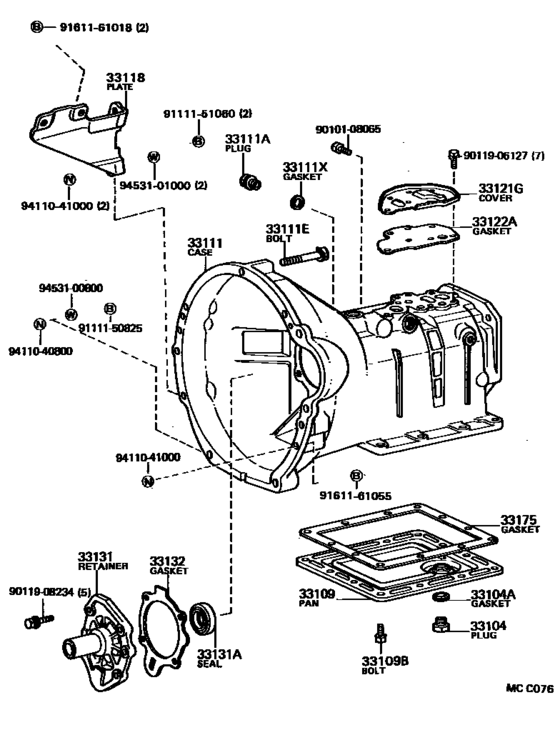

Clutch Housing & Transmission Case (Mtm) ([08.1985 - ] (8508- )) Diagram Toyota PUBLICA
- Year
- 1985 - 1988
- Sales region
- Japan
- Frame
- KP39
- grade
- DLX
- body
- PIC
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 08.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[08.1969 - 08.1988] KP3#,50 |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.1984 - 08.1988] KP39 |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1984 - 08.1988] KP39 |
90430-T0021 |
US $0.99 |
||
|
33109
|
33109
33109-12012
Pan Sub-Assy, Transmission Oil(Mtm)
[05.1984 - 08.1988] KP39 |
33109-12012 |
— | ||
|
33109B
|
33109B
90119-08247 Bolt(For Manual Transmission Oil Pan Setting)[04.1980 - 08.1988] KP3# |
90119-08247 |
US $1.75 |
||
|
33111
|
33111
33101-12111
Case, Manual Transmission
[10.1981 - 08.1985] KP3# |
33101-12111 |
— | ||
|
33111
|
33111
33111-10050 Case, Manual TransmissionMANUAL TRANSMISSION [08.1985 - 08.1988] KP39 |
33111-10050 |
US $528.53 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[09.1982 - 08.1988] KP39 |
90341-18006 |
from US $3.23 |
||
|
33111X
|
33111X
90430-18008 Gasket[08.1984 - 08.1988] KP39 |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1984 - 08.1988] KP39 |
90430-T0021 |
US $0.99 |
||
|
33118
|
33118
33118-10010 Plate, Stiffener, Rh(Mtm)[04.1974 - 08.1988] KP3#,50..MTM |
33118-10010 |
US $25.77 |
||
|
33121G
|
33121G
33121-12020
Cover, Manual Transmission Case
[01.1979 - 08.1985] KP3# |
33121-12020 |
— | ||
|
33121G
|
33121G
33121-12031 Cover, Manual Transmission CaseMANUAL TRANSMISSION CASE [08.1985 - 08.1988] KP39 |
33121-12031 |
US $14.41 |
||
|
33122A
|
33122A
33122-12020 Gasket, Manual Transmission Case CoverMANUAL TRANSMISSION CASE COVER [01.1979 - 08.1985] KP3# |
33122-12020 |
US $2.48 |
||
|
33122A
|
33122A
33122-12031 Gasket, Manual Transmission Case CoverMANUAL TRANSMISSION CASE COVER [08.1985 - 08.1988] KP39 |
33122-12031 |
US $3.06 |
||
|
33131
|
33131
33131-12031 Retainer, Bearing, Front(Mtm)BEARING, FRONT(MTM) [12.1979 - 08.1985] KP3# |
33131-12031 |
US $49.07 |
||
|
33131
|
33131
33131-12050 Retainer, Bearing, Front(Mtm)BEARING, FRONT(MTM) [08.1985 - 08.1988] KP39 |
33131-12050 |
US $65.67 |
||
|
33131A
|
33131A
90311-25003 Seal, Oil(For Transmission Front Bearing Retainer)[03.1978 - 08.1988] KP3# |
90311-25003 |
US $3.76 |
||
|
33132
|
33132
33132-12050
Gasket, Front Bearing Retainer(Mtm)
[08.1985 - 08.1988] KP39 T=0.5 |
33132-12050 |
— | ||
|
33175
|
33175
33175-12010
Gasket, Manual Transmission Oil Pan
[04.1969 - 08.1988] KP3#,50..MTM |
33175-12010 |
— | ||
|
9010108065
|
9010108065
90101-08065 New Genuine Part |
90101-08065 |
US $1.89 |
||
|
9011906127
|
9011906127
90119-06127 New Genuine Part |
90119-06127 |
US $2.04 |
||
|
9011908234
|
9011908234
90119-08234 New Genuine Part |
90119-08234 |
US $2.48 |
||
|
9111150825
|
9111150825
91111-50825 Bolt(For Clutch Master Cylinder Setting) |
91111-50825 |
US $3.40 |
||
|
9111151060
|
9111151060
91111-51060 Shaft, Clutch Pedal |
91111-51060 |
US $2.77 |
||
| replacement | |||||
|
9111151060
|
9111151060
91112-61060 Shaft, Clutch Pedal |
91112-61060 |
US $3.06 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9161161055
|
9161161055
91611-61055 Bolt(For Clutch Release Cylinder Setting) |
91611-61055 |
US $3.05 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
