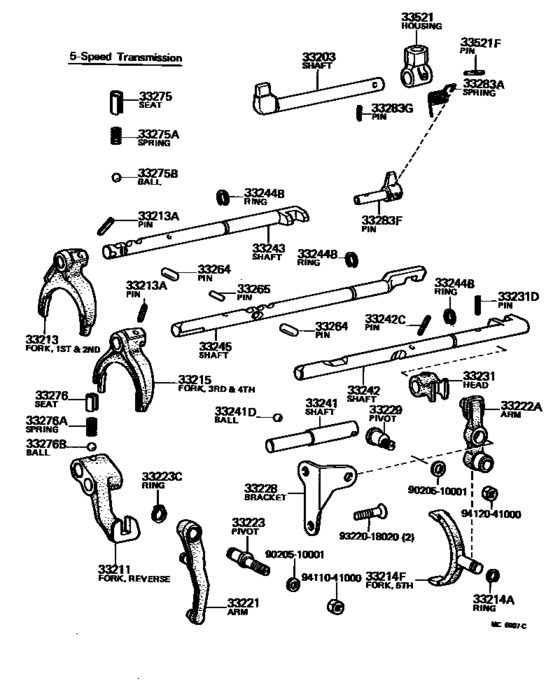

Gear Shift Fork & Lever Shaft (Mtm) ([08.1985 - ] (8508- )) Diagram Toyota PUBLICA
- Year
- 1985 - 1988
- Sales region
- Japan
- Frame
- KP39
- grade
- DLX
- body
- PIC
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 08.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33203
|
33203
33251-10041 Shaft Sub-Assy, Shift Lever, No.1SHIFT LEVER, NO.1 [08.1985 - 08.1988] KP39 |
33251-10041 |
US $34.22 |
||
|
33211
|
33211
33211-10020 Fork, Reverse ShiftREVERSE SHIFT [08.1985 - 08.1988] KP39 |
33211-10020 |
US $41.35 |
||
|
33213
|
33213
33213-12010
Fork, 1St & 2Nd Shift
[04.1969 - 08.1988] KP3#,50..MTM |
33213-12010 |
— | ||
|
33213A
|
33213A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1985 - 08.1988] KP39 |
90254-05001 |
from US $0.95 |
||
|
33214A
|
33214A
90520-12001
Ring, Shaft Snap(For 5Th Shift Fork)
[08.1985 - 08.1988] KP39 |
90520-12001 |
— | ||
|
33214F
|
33214F
33214-10011
Fork, 5Th Shift
[08.1985 - 08.1988] KP39 |
33214-10011 |
— | ||
|
33215
|
33215
33215-12011
Fork, 3Rd & 4Th Shift
[10.1969 - 08.1988] KP3#,50..MTM |
33215-12011 |
— | ||
|
33221
|
33221
33221-12010 Arm, Reverse ShiftREVERSE SHIFT [04.1969 - 08.1988] KP3#,50..MTM |
33221-12010 |
US $18.35 |
||
|
33222A
|
33222A
33222-10011 Arm, 5Th Shift5TH SHIFT [08.1985 - 08.1988] KP39 |
33222-10011 |
US $32.18 |
||
|
33223
|
33223
33223-12060 Pivot, Shift ArmSHIFT ARM [11.1982 - 08.1988] KP39 |
33223-12060 |
US $13.40 |
||
|
33223C
|
33223C
96150-01300 Ring, Shaft Snap(For Shift Arm Pivot)SHAFT SNAP(FOR SHIFT ARM PIVOT) [08.1969 - 08.1988] KP3#,50..MTM |
96150-01300 |
US $2.18 |
||
|
33228
|
33228
33228-12010 Bracket, Reverse Shift ArmREVERSE SHIFT ARM [08.1985 - 08.1988] KP39 |
33228-12010 |
US $25.33 |
||
|
33229
|
33229
33229-10011 Pivot, 5Th Shift Arm5TH SHIFT ARM [08.1985 - 08.1988] KP39 |
33229-10011 |
US $6.26 |
||
|
33231
|
33231
33232-10011 Head, Reverse ShiftREVERSE SHIFT [08.1985 - 08.1988] KP39 |
33232-10011 |
US $22.57 |
||
|
33231D
|
33231D
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1985 - 08.1988] KP39 |
90254-05001 |
from US $0.95 |
||
|
33241
|
33241
33241-10020 Shaft, Reverse Shift ForkREVERSE SHIFT FORK [08.1985 - 08.1988] KP39 |
33241-10020 |
US $20.82 |
||
|
33241D
|
33241D
90360-10003 Ball(For Transmission Oil Pump Cover)[08.1985 - 08.1988] KP39 |
90360-10003 |
from US $1.16 |
||
|
33242
|
33242
33244-10010
Shaft, Gear Shift Fork, No.1
[08.1985 - 08.1988] KP39 |
33244-10010 |
— | ||
|
33242C
|
33242C
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1985 - 08.1988] KP39 |
90254-05001 |
from US $0.95 |
||
|
33243
|
33243
33242-10012
Shaft, 1St & 2Nd Shift Fork
[08.1985 - 08.1988] KP39 |
33242-10012 |
— | ||
|
33243
|
33243
33243-12031
Shaft, 1St & 2Nd Shift Fork
[04.1980 - 08.1985] KP3# |
33243-12031 |
— | ||
|
33244B
|
33244B
90520-12001
Ring, Shaft Snap(For 5Th Shift Fork)
[08.1985 - 08.1988] KP39 |
90520-12001 |
— | ||
|
33245
|
33245
33243-10021 Shaft, 3Rd & 4Th Shift Fork3RD & 4TH SHIFT FORK [08.1985 - 08.1988] KP39 |
33243-10021 |
US $62.61 |
||
|
33245
|
33245
33245-12031
Shaft, 3Rd & 4Th Shift Fork
[10.1981 - 08.1985] KP3# |
33245-12031 |
— | ||
|
33264
|
33264
90250-05197
Pin, Or Ball, Shift Inter Lock, No.1
[07.1970 - 08.1988] KP3#,50..MTM 長さ＝９．９，外径＝５ |
90250-05197 |
— | ||
|
33265
|
33265
90250-05197
Pin, Or Ball, Shift Inter Lock, No.1
[07.1970 - 08.1988] KP3#,50..MTM 長さ＝９．９，外径＝５ |
90250-05197 |
— | ||
|
33275
|
33275
33275-12010
Seat, Shift Detent Ball Spring, No.1
[04.1969 - 08.1988] KP3#,50..MTM |
33275-12010 |
— | ||
|
33275A
|
33275A
90501-14237 Spring, Compression (For Shift Detent Ball Low Side)[04.1980 - 08.1988] KP3# 長さ＝１６．１ |
90501-14237 |
US $3.40 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[04.1969 - 08.1988] KP3#,50..MTM |
90360-10003 |
from US $1.16 |
||
|
33276
|
33276
33275-10021 Seat, Shift Detent Ball Spring, No.2SHIFT DETENT BALL SPRING, NO.2 [08.1985 - 08.1988] KP39 |
33275-10021 |
US $3.06 |
||
|
33276A
|
33276A
90501-14237 Spring, Compression (For Shift Detent Ball Low Side)[08.1985 - 08.1988] KP39 |
90501-14237 |
US $3.40 |
||
|
33276B
|
33276B
90360-10003 Ball(For Transmission Oil Pump Cover)[08.1985 - 08.1988] KP39 |
90360-10003 |
from US $1.16 |
||
|
33283A
|
33283A
90504-08001
Spring, Compression (For Reverse Restrict Pin)
[08.1985 - 08.1988] KP39 |
90504-08001 |
— | ||
|
33283F
|
33283F
33280-10012 Pin, Reverse RestrictREVERSE RESTRICT [08.1985 - 08.1988] KP39 |
33280-10012 |
US $32.47 |
||
|
33283G
|
33283G
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1985 - 08.1988] KP39 |
90254-05001 |
from US $0.95 |
||
|
33521
|
33521
33521-10140
Housing, Shift Lever
[08.1985 - 08.1988] KP39 |
33521-10140 |
— | ||
|
33521F
|
33521F
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[04.1970 - 08.1988] KP3#,50..MTM |
90254-05001 |
from US $0.95 |
||
|
9020510001
|
9020510001
90205-10001 New Genuine Part |
90205-10001 |
US $2.18 |
||
|
9322018020
|
9322018020
93220-18020
New Genuine Part
|
93220-18020 |
— | ||
| replacement | |||||
|
9322018020
|
9322018020
93230-18020 New Genuine Part |
93230-18020 |
US $1.97 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
