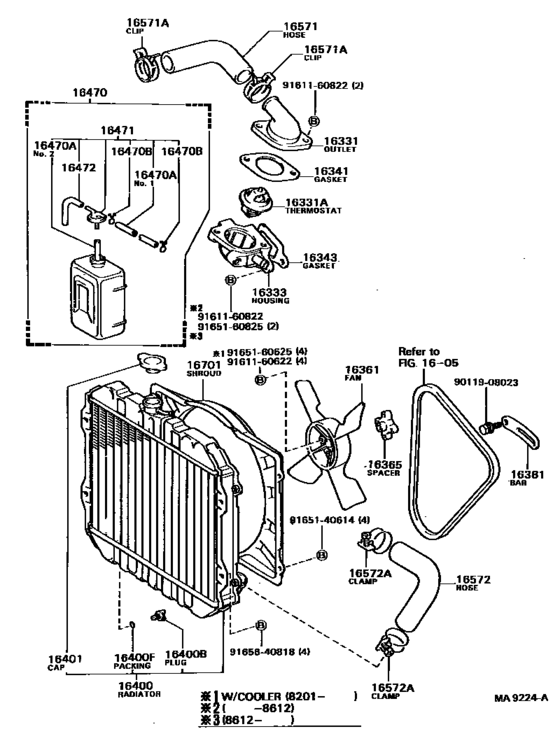

Radiator & Water Outlet ([01.1986 - ] (8601- )) Diagram Toyota PUBLICA
- Year
- 1985 - 1988
- Sales region
- Japan
- Frame
- KP39
- grade
- DLX
- body
- PIC
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 08.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16331
|
16331
16331-22031
Outlet, Water
[09.1977 - 08.1988] 3K#,4KJ..KP3#,50 |
16331-22031 |
— | ||
|
16331A
|
16331A
90916-03054
Thermostat
[11.1982 - 08.1988] 4KJ..KP39 ＊ＷＡＸ ８２−９５ |
90916-03054 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03083 Thermostat[11.1982 - 08.1988] 4KJ..KP39 ＊ＷＡＸ ８２−９５ |
90916-03083 |
from US $17.14 |
||
|
16331A
|
16331A
90916-03055
Thermostat
[11.1982 - 08.1988] 4KJ..KP39 ＊ＷＡＸ ８８−１００,ｶﾝﾚｲﾁ ｼﾖｳ |
90916-03055 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03078 Thermostat[11.1982 - 08.1988] 4KJ..KP39 ＊ＷＡＸ ８８−１００,ｶﾝﾚｲﾁ ｼﾖｳ |
90916-03078 |
from US $17.14 |
||
|
16333
|
16333
16333-13050 Housing, Water OutletWATER OUTLET [01.1982 - 08.1988] 4KJ..KP39 |
16333-13050 |
US $60.28 |
||
|
16341
|
16341
16341-13011
Gasket, Water Outlet
[12.1978 - 08.1988] 3KHJ,4KJ..KP3# |
16341-13011 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-13040 Gasket, Water Outlet[12.1978 - 08.1988] 3KHJ,4KJ..KP3# |
16341-13040 |
US $5.73 |
||
|
16343
|
16343
16343-22011
Gasket, Water Outlet Housing
[01.1982 - 08.1988] 4KJ..KP39 |
16343-22011 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-13020 Gasket, Water Outlet Housing[01.1982 - 08.1988] 4KJ..KP39 |
16343-13020 |
US $8.96 |
||
|
16361
|
16361
16361-24031
Fan
[01.1982 - 08.1988] 4KJ..KP39 4 BLADES |
16361-24031 |
— | ||
|
16361
|
16361
16361-24070 Fan[07.1976 - 08.1988] 3K#,4KJ..KP3#,50 4 BLADES W/COOLER |
16361-24070 |
US $49.94 |
||
|
16381
|
16381
16381-24011
Bar, Fan Belt Adjusting
[02.1973 - 08.1988] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
16381-24011 |
— | ||
|
16400
|
16400
16400-24180 Radiator Assy[11.1975 - 08.1988] 3KHJ,4KJ..KP3# |
16400-24180 |
US $682.86 |
||
|
16400B
|
16400B
90910-09054
Plug, Radiator Drain Cock
[11.1975 - 08.1988] 3K#,4KJ..KP3#,50 |
90910-09054 |
— | ||
| replacement | |||||
|
16400B
|
16400B
90910090541
Drain Plug
[11.1975 - 08.1988] 3K#,4KJ..KP3#,50 |
90910090541 |
— | ||
|
16400F
|
16400F
96711-19007 Packing(For Radiator Drain Cock)[10.1981 - 08.1988] 3KHJ,4KJ..KP3# |
96711-19007 |
from US $2.09 |
||
|
16401
|
16401
16401-36011 Cap Sub-Assy, Radiator[08.1978 - 08.1988] 3KHJ,4KJ..KP3# |
16401-36011 |
from US $19.66 |
||
|
16470
|
16470
16470-24012
Tank Assy, Radiator Reserve
[11.1975 - 02.1987] 3K#,4KJ..KP3#,50 |
16470-24012 |
— | ||
|
16470
|
16470
16480-45030
Tank Assy, Radiator Reserve
[02.1987 - 08.1988] 4KJ..KP39 |
16480-45030 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-24012
Tank Assy, Radiator Reserve
[02.1987 - 08.1988] 4KJ..KP39 |
16470-24012 |
— | ||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[01.1986 - 08.1988] 4KJ..KP39 ＊Ｈ，Ｌ＝１７０,ＮＯ．２,ＮＯ．１ |
90445-12078 |
from US $6.57 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[01.1986 - 08.1988] 4KJ..KP39 |
90467-11085 |
from US $0.70 |
||
|
16471
|
16471
16405-95700 Cap Sub-Assy, Reserve TankRESERVE TANK [02.1987 - 08.1988] 4KJ..KP39 |
16405-95700 |
US $29.27 |
||
|
16471
|
16471
16471-24012
Cap Sub-Assy, Reserve Tank
[11.1975 - 02.1987] 3K#,4KJ..KP3#,50 |
16471-24012 |
— | ||
| replacement | |||||
|
16471
|
16471
16405-95700 Cap Sub-Assy, Reserve TankRESERVE TANK [11.1975 - 02.1987] 3K#,4KJ..KP3#,50 |
16405-95700 |
US $29.27 |
||
|
16472
|
16472
85338-30010
Hose(For Radiator Drain Cock)
[01.1986 - 08.1988] 4KJ..KP39 |
85338-30010 |
— | ||
|
16571
|
16571
90916-01158 Hose, Radiator, InletRADIATOR, INLET [09.1977 - 08.1988] 3K#,4KJ..KP3#,50 |
90916-01158 |
US $21.99 |
||
|
16571A
|
16571A
90467-37001
Clip(For Water Inlet Hose)
[05.1980 - 08.1988] 3KHJ,4KJ..KP3# |
90467-37001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[05.1980 - 08.1988] 3KHJ,4KJ..KP3# |
90467-37003 |
from US $4.45 |
||
|
16572
|
16572
90916-01124 Hose, Radiator, OutletRADIATOR, OUTLET [02.1973 - 08.1988] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
90916-01124 |
US $24.46 |
||
|
16572A
|
16572A
90460-47036 Clamp Or Clip, Hose(For Radiator Inlet)[02.1973 - 08.1988] 2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
90460-47036 |
US $3.94 |
||
|
16701
|
16701
16711-12010 Shroud Sub-Assy, FanFAN [11.1975 - 08.1988] 3K#,4KJ..KP3#,50 |
16711-12010 |
US $71.34 |
||
|
16701
|
16701
16711-12020 Shroud Sub-Assy, FanFAN [11.1975 - 08.1988] 3K#,4KJ..KP3#,50 W/COOLER |
16711-12020 |
US $71.34 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9161160622
|
9161160622
91611-60622 Bolt, W/washer (For Transmission Oil Pump Cover) |
91611-60622 |
US $2.62 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165160625
|
9165160625
91651-60625 New Genuine Part |
91651-60625 |
US $2.87 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
