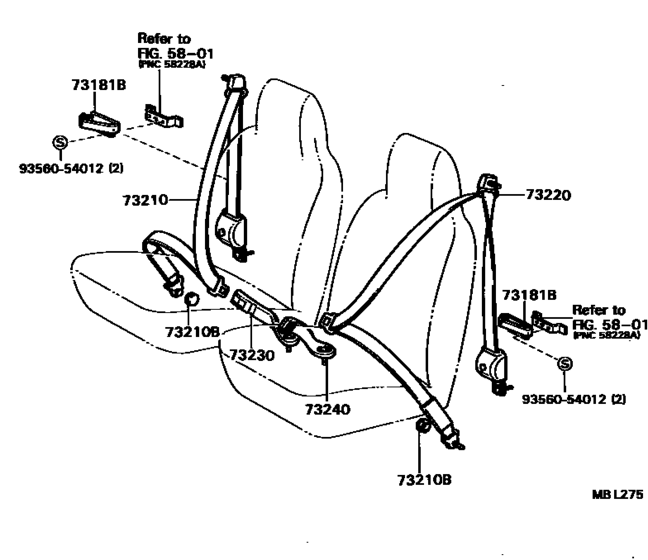

Seat Belt & Child Restraint Seat ([08.1986 - ] (8608- )) Diagram Toyota PUBLICA
- Year
- 1985 - 1988
- Sales region
- Japan
- Frame
- KP39
- grade
- DLX
- body
- PIC
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 08.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73181B
|
73181B
73181-22030-01
Guide, Front Seat Lap Belt, Outer
[08.1986 - 08.1988] KP39 BLACK,BLACK |
73181-22030-01 |
— | ||
|
73210
|
73210
73210-10010-01
Belt Assy, Front Seat Outer, Rh
[11.1975 - 08.1985] KP3#,50 BLACK,BLACK,TRIM2#,4# |
73210-10010-01 |
— | ||
| replacement | |||||
|
73210
|
73210
73210-10011-01
Belt Assy, Front Seat Outer, Rh
[11.1975 - 08.1985] KP3#,50 BLACK,BLACK,TRIM2#,4# |
73210-10011-01 |
— | ||
|
73210
|
73210
73210-10011-01
Belt Assy, Front Seat Outer, Rh
[08.1985 - 08.1986] KP39 BLACK,BLACK,TRIM2# |
73210-10011-01 |
— | ||
|
73210
|
73210
73210-10320 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [08.1986 - 08.1988] KP39 |
73210-10320 |
US $334.88 |
||
|
73210B
|
73210B
73178-12010
Cap (For Front Seat Outer Belt)
[08.1986 - 08.1988] KP39 |
73178-12010 |
— | ||
| replacements | |||||
|
73210B
|
73210B
73178-12010-11
Cap, Seat Belt Anchor Cover
[08.1986 - 08.1988] KP39 |
73178-12010-11 |
— | ||
|
73210B
|
73210B
73178-12010-06
Cap (For Front Seat Outer Belt)
[08.1986 - 08.1988] KP39 |
73178-12010-06 |
— | ||
|
73210B
|
73210B
73178-12010-11
Cap, Seat Belt Anchor Cover
[01.1977 - 08.1986] KP3#,50 BLACK,BLACK,TRIM2#,4# |
73178-12010-11 |
— | ||
|
73220
|
73220
73210-10010-01
Belt Assy, Front Seat Outer, Rh
[11.1975 - 08.1985] KP3#,50 BLACK,BLACK,TRIM2#,4# |
73210-10010-01 |
— | ||
| replacement | |||||
|
73220
|
73220
73210-10011-01
Belt Assy, Front Seat Outer, Rh
[11.1975 - 08.1985] KP3#,50 BLACK,BLACK,TRIM2#,4# |
73210-10011-01 |
— | ||
|
73220
|
73220
73210-10011-01
Belt Assy, Front Seat Outer, Rh
[08.1985 - 08.1986] KP39 BLACK,BLACK,TRIM2# |
73210-10011-01 |
— | ||
|
73220
|
73220
73220-10280
Belt Assy, Front Seat Outer, Lh
[08.1986 - 08.1988] KP39 |
73220-10280 |
— | ||
|
73230
|
73230
73230-10010-01
Belt Assy, Front Seat Inner, Rh
[01.1977 - 08.1985] KP3#,50 BLACK,BLACK,TRIM2#,4# |
73230-10010-01 |
— | ||
|
73230
|
73230
73230-10011
Belt Assy, Front Seat Inner, Rh
[08.1986 - 08.1988] KP39 |
73230-10011 |
— | ||
|
73230
|
73230
73230-10011-01 Belt Assy, Front Seat Inner, RhFRONT SEAT INNER, RH [08.1985 - 08.1986] KP39 BLACK,BLACK,TRIM2# |
73230-10011-01 |
US $74.26 |
||
|
73240
|
73240
73240-10010-01
Belt Assy, Front Seat Inner, Lh
[01.1977 - 08.1985] KP3#,50 BLACK,BLACK,TRIM2#,4# |
73240-10010-01 |
— | ||
|
73240
|
73240
73240-10011
Belt Assy, Front Seat Inner, Lh
[08.1986 - 08.1988] KP39 |
73240-10011 |
— | ||
|
73240
|
73240
73240-10011-01 Belt Assy, Front Seat Inner, LhFRONT SEAT INNER, LH [08.1985 - 08.1986] KP39 BLACK,BLACK,TRIM2# |
73240-10011-01 |
US $74.26 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.65 |
||
