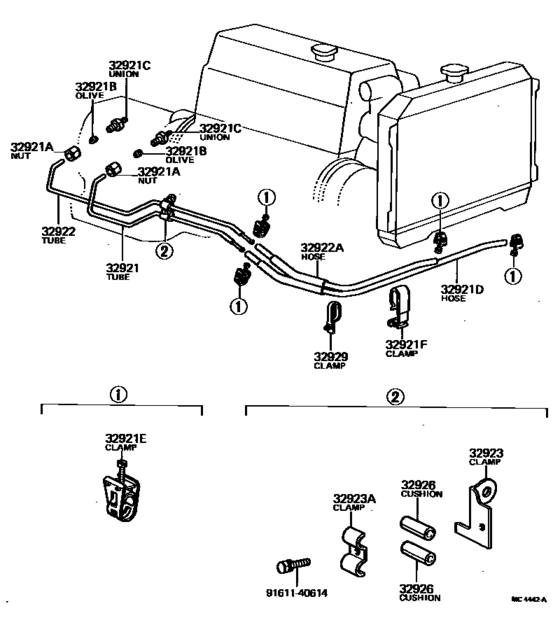

Oil Cooler & Tube (Atm) ([10.1976 - 02.1978] (7610-7802)2FC) Diagram Toyota PUBLICA
- Year
- 1976 - 1978
- Sales region
- Japan
- Frame
- KP50
- grade
- HDX
- body
- SED
- ENGINE
- 3KU
- TRANSMISSION
- ATM
- Model
- PUBLICA
- From
- 10.1976
- To
- 02.1978
- Gear Shift Type
- 2FC
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-10010 Tube, Oil Cooler Inlet, No.1[10.1976 - 11.1976] KP50..2FC |
32921-10010 |
US $12.38 |
||
| replacement | |||||
|
32921
|
32921
32921-10011
Tube, Oil Cooler Inlet, No.1
[10.1976 - 11.1976] KP50..2FC |
32921-10011 |
— | ||
|
32921
|
32921
32921-10011
Tube, Oil Cooler Inlet, No.1
[11.1976 - 02.1978] KP50..2FC |
32921-10011 |
— | ||
|
32921A
|
32921A
90402-13041 Nut, Union(For Fuel Pipe)[10.1976 - 02.1978] KP50..2FC |
90402-13041 |
US $3.76 |
||
|
32921B
|
32921B
96395-71400 Olive(For Fuel Pipe)[10.1976 - 02.1978] KP50..2FC |
96395-71400 |
US $3.76 |
||
|
32921C
|
32921C
90404-13105
Bolt, Union(For Oil Filter Inlet Pipe)
[10.1976 - 02.1978] KP50..2FC |
90404-13105 |
— | ||
|
32921D
|
32921D
32941-10010
Hose(For Oil Cooler Inlet)
[10.1976 - 02.1978] KP50..2FC |
32941-10010 |
— | ||
|
32921E
|
32921E
90460-01075 Clamp, Hose(For Oil Cooler)HOSE(FOR OIL COOLER) [10.1976 - 02.1978] KP50..2FC |
90460-01075 |
US $7.28 |
||
| replacement | |||||
|
32921E
|
32921E
90460-20004 Clamp, Hose(For Oil Cooler)[10.1976 - 02.1978] KP50..2FC |
90460-20004 |
US $3.14 |
||
|
32921F
|
32921F
90463-06205
Clamp(For Oil Cooler Tube)
[10.1976 - 02.1978] KP50..2FC |
90463-06205 |
— | ||
|
32922
|
32922
32922-10010 Tube, Oil Cooler Outlet, No.1[10.1976 - 11.1976] KP50..2FC |
32922-10010 |
US $14.41 |
||
| replacement | |||||
|
32922
|
32922
32922-10011
Tube, Oil Cooler Outlet, No.1
[10.1976 - 11.1976] KP50..2FC |
32922-10011 |
— | ||
|
32922
|
32922
32922-10011
Tube, Oil Cooler Outlet, No.1
[11.1976 - 02.1978] KP50..2FC |
32922-10011 |
— | ||
|
32922A
|
32922A
32942-10010
Hose(For Oil Cooler Outlet)
[10.1976 - 02.1978] KP50..2FC |
32942-10010 |
— | ||
|
32923
|
32923
32923-12021
Clamp, Automatic Transmission Oil Cooler Tube
[10.1976 - 02.1978] KP50..2FC |
32923-12021 |
— | ||
|
32923A
|
32923A
90462-12085 Clamp, Automatic Transmission Oil Cooler Tube[10.1976 - 02.1978] KP50..2FC |
90462-12085 |
US $2.91 |
||
|
32926
|
32926
32926-30011 Cushion, Oil Cooler Tube(Atm)[10.1976 - 02.1978] KP50..2FC 長さ＝２５，内径＝８ |
32926-30011 |
US $1.89 |
||
|
32929
|
32929
90463-15565 Clamp, Flexible Hose, No.2[10.1976 - 02.1978] KP50..2FC |
90463-15565 |
US $7.43 |
||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
