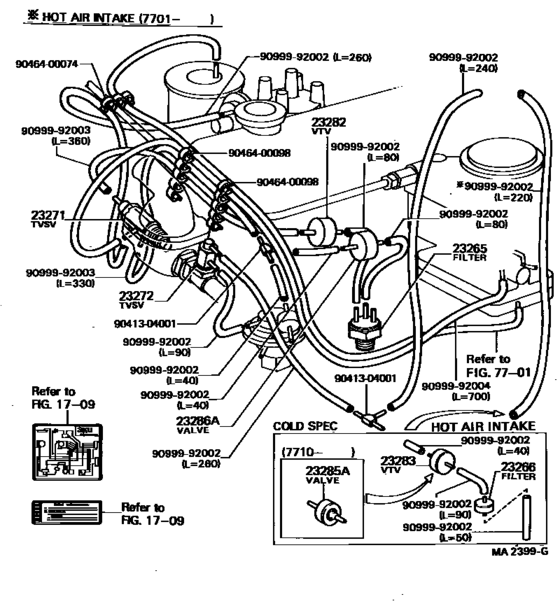

Vacuum Piping ([10.1976 - 02.1978] (7610-7802)3KU..2FC) Diagram Toyota PUBLICA
- Year
- 1976 - 1978
- Sales region
- Japan
- Frame
- KP50
- grade
- HDX
- body
- SED
- ENGINE
- 3KU
- TRANSMISSION
- ATM
- Model
- PUBLICA
- From
- 10.1976
- To
- 02.1978
- Gear Shift Type
- 2FC
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23265
|
23265
90917-11003
Filter, Gas, No.1
[01.1976 - 02.1978] 3KU..KP50 |
90917-11003 |
— | ||
| replacements | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[01.1976 - 02.1978] 3KU..KP50 |
90917-11027 |
from US $26.03 |
||
|
23265
|
23265
90917-11013
Filter, Gas, No.1
[01.1976 - 02.1978] 3KU..KP50 |
90917-11013 |
— | ||
|
23266
|
23266
90917-11009
Filter, Gas, No.1
[01.1976 - 02.1978] 3KU..KP50 |
90917-11009 |
— | ||
|
23266
|
23266
90917-11021
Filter, Gas, No.1
[05.1977 - 02.1978] 3KU..KP50 HOT AIR INTAKE,COLD SPEC |
90917-11021 |
— | ||
| replacement | |||||
|
23266
|
23266
90917-11030 Filter, Gas, No.1[05.1977 - 02.1978] 3KU..KP50 HOT AIR INTAKE,COLD SPEC |
90917-11030 |
from US $8.56 |
||
|
23271
|
23271
90925-02041
Valve, Thermostatic Vacuum Switching, No.1
[10.1976 - 02.1978] 3KU..KP50..2FC |
90925-02041 |
— | ||
|
23272
|
23272
90925-02042
Valve, Thermostatic Vacuum Switching, No.2
[10.1976 - 02.1978] 3KU..KP50..2FC |
90925-02042 |
— | ||
|
23282
|
23282
90925-01021 Valve, Vacuum Transmitting, No.1[10.1976 - 02.1978] 3KU..KP50..2FC |
90925-01021 |
from US $18.35 |
||
|
23283
|
23283
90925-01027
Valve, Vacuum Transmitting, No.1
[05.1977 - 10.1977] 3KU..KP50 HOT AIR INTAKE,COLD SPEC |
90925-01027 |
— | ||
| replacement | |||||
|
23283
|
23283
90925-01084
Valve, Vacuum Transmitting, No.1
[05.1977 - 10.1977] 3KU..KP50 HOT AIR INTAKE,COLD SPEC |
90925-01084 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[10.1977 - 02.1978] 3KU..KP50 HOT AIR INTAKE |
90917-10049 |
from US $5.87 |
||
|
23286A
|
23286A
90917-10038
Valve, Check, No.2
[01.1976 - 02.1978] 3KU..KP50 |
90917-10038 |
— | ||
|
9041304001
|
9041304001
90413-04001 Way, 3(For Transfer Breather Hose) |
90413-04001 |
US $5.56 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400098
|
9046400098
90464-00098 New Genuine Part |
90464-00098 |
US $4.37 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9099992004
|
9099992004
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $8.76 |
||
