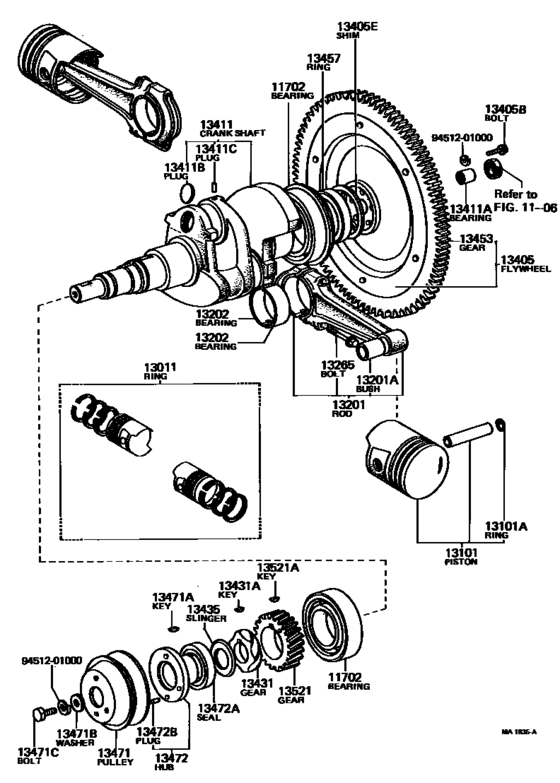

Crankshaft & Piston ([04.1969 - 12.1971] (6904-7112)2UC) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP30
- grade
- DLX
- body
- SED
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
90363-50024
Bearing Set, Crankshaft
[04.1969 - 12.1971] 2UC..UP3# RR,6310NR |
90363-50024 |
— | ||
|
11702
|
11702
97540-00210
Bearing Set, Crankshaft
[04.1969 - 12.1971] 2UC..UP3# FR,NF210W |
97540-00210 |
— | ||
|
13011
|
13011
13011-11021
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# STD |
13011-11021 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-11010
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# STD |
13011-11010 |
— | ||
|
13011
|
13011
13012-11010
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# O/S 0.25 3 PCS |
13012-11010 |
— | ||
|
13011
|
13011
13012-11021
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# O/S 0.25 |
13012-11021 |
— | ||
| replacement | |||||
|
13011
|
13011
13012-11010
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# O/S 0.25 |
13012-11010 |
— | ||
|
13011
|
13011
13013-11010
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# O/S 0.50 3 PCS |
13013-11010 |
— | ||
|
13011
|
13011
13013-11021
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# O/S 0.50 |
13013-11021 |
— | ||
| replacement | |||||
|
13011
|
13011
13013-11010
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# O/S 0.50 |
13013-11010 |
— | ||
|
13011
|
13011
13014-11010
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# O/S 0.75 3 PCS |
13014-11010 |
— | ||
|
13011
|
13011
13014-11021
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# O/S 0.75 |
13014-11021 |
— | ||
| replacement | |||||
|
13011
|
13011
13014-11010
Ring Set, Piston
[04.1969 - 12.1971] 2UC..UP3# O/S 0.75 |
13014-11010 |
— | ||
|
13011
|
13011
13015-11010 Ring Set, Piston[04.1969 - 12.1971] 2UC..UP3# O/S 1.00 3 PCS |
13015-11010 |
US $128.13 |
||
|
13011
|
13011
13015-11021 Ring Set, Piston[04.1969 - 12.1971] 2UC..UP3# O/S 1.00 |
13015-11021 |
US $82.99 |
||
| replacement | |||||
|
13011
|
13011
13015-11010 Ring Set, Piston[04.1969 - 12.1971] 2UC..UP3# O/S 1.00 |
13015-11010 |
US $128.13 |
||
|
13101
|
13101
13101-11021
Piston Sub-Assy, W/pin
[04.1969 - 12.1971] 2UC..UP3# STD |
13101-11021 |
— | ||
|
13101
|
13101
13102-11021
Piston Sub-Assy, W/pin
[04.1969 - 12.1971] 2UC..UP3# O/S 0.25 |
13102-11021 |
— | ||
|
13101
|
13101
13103-11021
Piston Sub-Assy, W/pin
[04.1969 - 12.1971] 2UC..UP3# O/S 0.50 |
13103-11021 |
— | ||
|
13101
|
13101
13104-11021
Piston Sub-Assy, W/pin
[04.1969 - 12.1971] 2UC..UP3# O/S 0.75 |
13104-11021 |
— | ||
|
13101
|
13101
13105-11021
Piston Sub-Assy, W/pin
[04.1969 - 12.1971] 2UC..UP3# O/S 1.00 |
13105-11021 |
— | ||
|
13101A
|
13101A
90521-25081
Ring, Hole Snap(For Piston Pin)
[04.1969 - 12.1971] 2UC..UP3# |
90521-25081 |
— | ||
|
13201
|
13201
13201-10010
Rod Sub-Assy, Connecting
[04.1969 - 12.1971] 2UC..UP3# |
13201-10010 |
— | ||
|
13201A
|
13201A
90999-73004
Bush(For Connecting Rod Small End)
[04.1969 - 12.1971] 2UC..UP3# |
90999-73004 |
— | ||
| replacement | |||||
|
13201A
|
13201A
90999-70052
Bush(For Connecting Rod Small End)
[04.1969 - 12.1971] 2UC..UP3# |
90999-70052 |
— | ||
|
13202
|
13202
13281-11010
Bearing Set, Connecting Rod
[04.1969 - 12.1971] 2UC..UP3# STD |
13281-11010 |
— | ||
| replacement | |||||
|
13202
|
13202
13282-11010 Bearing, Connecting Rod[04.1969 - 12.1971] 2UC..UP3# STD |
13282-11010 |
US $12.54 |
||
|
13202
|
13202
13283-11010
Bearing Set, Connecting Rod
[04.1969 - 12.1971] 2UC..UP3# U/S 0.05 |
13283-11010 |
— | ||
|
13202
|
13202
13284-11010
Bearing Set, Connecting Rod
[04.1969 - 12.1971] 2UC..UP3# U/S 0.25 |
13284-11010 |
— | ||
|
13202
|
13202
13285-11010
Bearing Set, Connecting Rod
[04.1969 - 12.1971] 2UC..UP3# U/S 0.50 |
13285-11010 |
— | ||
|
13265
|
13265
90101-09310
Bolt, Connecting Rod
[04.1969 - 12.1971] 2UC..UP3# |
90101-09310 |
— | ||
|
13405
|
13405
13405-10011
Flywheel Sub-Assy
[04.1969 - 12.1971] 2UC..UP3# N=106 |
13405-10011 |
— | ||
| replacement | |||||
|
13405
|
13405
13405-11010
Flywheel Sub-Assy
[04.1969 - 12.1971] 2UC..UP3# N=106 |
13405-11010 |
— | ||
|
13405B
|
13405B
90913-01004
Bolt, Flywheel Setting
[04.1969 - 12.1971] 2UC..UP3# |
90913-01004 |
— | ||
|
13405E
|
13405E
90564-49056
Shim(For Flywheel)
[04.1969 - 12.1971] 2UC..UP3# T=0.1 |
90564-49056 |
— | ||
|
13405E
|
13405E
90564-49057
Shim(For Flywheel)
[04.1969 - 12.1971] 2UC..UP3# T=0.03 |
90564-49057 |
— | ||
|
13411
|
13411
13401-11012
Crankshaft
[04.1969 - 12.1971] 2UC..UP3# |
13401-11012 |
— | ||
|
13411B
|
13411B
90330-17029
Plug, Taper Screw(For Crankshaft)
[04.1969 - 12.1971] 2UC..UP3# OD=17,T=2.0 |
90330-17029 |
— | ||
|
13411C
|
13411C
90334-07011
Pin, Straight(For Crankshaft)
[04.1969 - 12.1971] 2UC..UP3# L=12,OD=6.5 |
90334-07011 |
— | ||
|
13431
|
13431
13431-10010
Gear, Distributor Drive
[04.1969 - 12.1971] 2UC..UP3# N=7 |
13431-10010 |
— | ||
| replacement | |||||
|
13431
|
13431
13431-10011
Gear, Distributor Drive
[04.1969 - 12.1971] 2UC..UP3# N=7 |
13431-10011 |
— | ||
|
13431A
|
13431A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[04.1969 - 12.1971] 2UC..UP3# |
90280-05008 |
US $3.94 |
||
|
13435
|
13435
13435-10010
Slinger, Crankshaft Oil
[04.1969 - 12.1971] 2UC..UP3# |
13435-10010 |
— | ||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[04.1969 - 08.1988] 2UC..UP3# N=106; KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50..MTM N=106 |
13453-10010 |
US $57.26 |
||
|
13457
|
13457
13457-11010
Ring, Flywheel Spacer
[04.1969 - 12.1971] 2UC..UP3# |
13457-11010 |
— | ||
|
13471
|
13471
13471-10010
Pulley, Crankshaft
[04.1969 - 12.1971] 2UC..UP3# |
13471-10010 |
— | ||
|
13471A
|
13471A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[04.1969 - 12.1971] 2UC..UP3# |
90280-05008 |
US $3.94 |
||
|
13471B
|
13471B
90201-10189
Washer, Plate(For Crankshaft Pulley Set)
[04.1969 - 12.1971] 2UC..UP3# |
90201-10189 |
— | ||
|
13471C
|
13471C
91111-41025
Bolt(For Crankshaft Pulley Set)
[03.1971 - 12.1971] 2UC..UP3# |
91111-41025 |
— | ||
| replacement | |||||
|
13471C
|
13471C
91112-61025 Bolt(For Clutch Pedal Stopper)[03.1971 - 12.1971] 2UC..UP3# |
91112-61025 |
from US $0.84 |
||
|
13472
|
13472
13472-19015
Hub, Crankshaft Pulley
[04.1969 - 12.1971] 2UC..UP3# |
13472-19015 |
— | ||
|
13472A
|
13472A
90311-35036
Seal, Oil(For Crankshaft Pulley Hub)
[04.1969 - 12.1971] 2UC..UP3# TB3 35 52 10 |
90311-35036 |
— | ||
|
13472B
|
13472B
90334-08006
Plug, Straigh(For Crankcase)
[04.1969 - 12.1971] 2UC..UP3# |
90334-08006 |
— | ||
|
13521
|
13521
13521-10010
Gear Or Sprocket, Crankshaft Timing
[04.1969 - 12.1971] 2UC..UP3# N=22 |
13521-10010 |
— | ||
|
13521A
|
13521A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[04.1969 - 12.1971] 2UC..UP3# |
90280-05008 |
US $3.94 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
