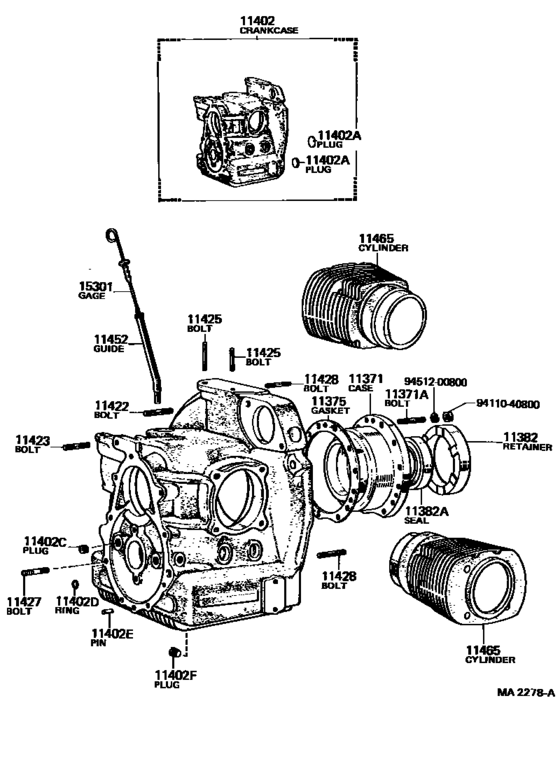

Cylinder Block ([04.1969 - 12.1971] (6904-7112)2UC) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP30
- grade
- DLX
- body
- SED
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11371
|
11371
11371-11010
Case, Bearing, Rear
[04.1969 - 12.1971] 2UC..UP3# |
11371-11010 |
— | ||
|
11371A
|
11371A
90116-08059
Bolt, Stud(For Bearing Case Set)
[04.1969 - 02.1971] 2UC..UP3# L=34,S=14 |
90116-08059 |
— | ||
| replacement | |||||
|
11371A
|
11371A
92132-40818 Bolt, Stud(For Manifold To Cylinder Head)[04.1969 - 02.1971] 2UC..UP3# L=34,S=14 |
92132-40818 |
US $3.16 |
||
|
11371A
|
11371A
92131-40818 Bolt, Stud(For Bearing Case Set)[03.1971 - 06.1971] 2UC..UP3# L=34,S=16 |
92131-40818 |
US $1.75 |
||
| replacement | |||||
|
11371A
|
11371A
92132-40818 Bolt, Stud(For Manifold To Cylinder Head)[03.1971 - 06.1971] 2UC..UP3# L=34,S=16 |
92132-40818 |
US $3.16 |
||
|
11375
|
11375
11375-10010
Gasket, Bearing Case, Rear
[04.1969 - 12.1971] 2UC..UP3# |
11375-10010 |
— | ||
|
11382
|
11382
11382-11011
Retainer, Engine Oil Seal, Rear
[04.1969 - 12.1971] 2UC..UP3# ISO |
11382-11011 |
— | ||
|
11382A
|
11382A
90311-60037
Seal, Oil(For Oil Seal Retainer)
[04.1969 - 12.1971] 2UC..UP3# TB3 60 82 12 |
90311-60037 |
— | ||
|
11402
|
11402
11402-11040
Crankcase Sub-Assy
[04.1969 - 12.1971] 2UC..UP3# |
11402-11040 |
— | ||
|
11402A
|
11402A
90330-35015
Plug, Expansion(For Crankcase)
[04.1969 - 12.1971] 2UC..UP3# LOW |
90330-35015 |
— | ||
|
11402A
|
11402A
90330-45017
Plug, Expansion(For Crankcase)
[04.1969 - 12.1971] 2UC..UP3# UPR |
90330-45017 |
— | ||
|
11402C
|
11402C
90344-52001
Plug, Transmission Case Cover (For Crankcase)
[04.1969 - 12.1971] 2UC..UP3# |
90344-52001 |
— | ||
|
11402D
|
11402D
90301-11053
Ring, O(For Crankcase)
[04.1969 - 12.1971] 2UC..UP3# |
90301-11053 |
— | ||
|
11402E
|
11402E
90334-08006
Plug, Straigh(For Crankcase)
[04.1969 - 02.1971] 2UC..UP3# |
90334-08006 |
— | ||
|
11402F
|
11402F
90345-51010
Plug, Taper Screw(For Crankcase)
[04.1969 - 08.1969] 2UC..UP3# |
90345-51010 |
— | ||
|
11402F
|
11402F
90345-51025 Plug, W/head Taper Screw, No.2[08.1969 - 02.1971] 2UC..UP3# |
90345-51025 |
US $3.76 |
||
|
11422
|
11422
90116-08144 Bolt, Stud(For Starter)[04.1969 - 02.1971] 2UC..UP3# L=38,S=14 |
90116-08144 |
US $1.46 |
||
| replacement | |||||
|
11422
|
11422
92131-40822 Bolt, Stud(For Starter)[04.1969 - 02.1971] 2UC..UP3# L=38,S=14 |
92131-40822 |
US $2.04 |
||
|
11422
|
11422
92131-40822 Bolt, Stud(For Starter)[03.1971 - 06.1971] 2UC..UP3# L=38,S=16 |
92131-40822 |
US $2.04 |
||
|
11422
|
11422
92132-40822
Bolt, Stud(For Starter)
[06.1971 - 12.1971] 2UC..UP3# L=38,S=16 |
92132-40822 |
— | ||
|
11423
|
11423
90116-08060 Bolt, Stud(For Adjusting Bar)[04.1969 - 02.1971] 2UC..UP3# L=36,S=14 |
90116-08060 |
US $1.60 |
||
| replacement | |||||
|
11423
|
11423
92131-40820 Bolt, Stud(For Adjusting Bar)[04.1969 - 02.1971] 2UC..UP3# L=36,S=14 |
92131-40820 |
US $1.46 |
||
|
11423
|
11423
92131-40820 Bolt, Stud(For Adjusting Bar)[03.1971 - 06.1971] 2UC..UP3# L=34,S=16 |
92131-40820 |
US $1.46 |
||
|
11423
|
11423
92132-40820 Bolt, Stud(For Adjusting Bar)STUD(FOR ADJUSTING BAR) [06.1971 - 12.1971] 2UC..UP3# L=34,S=16 |
92132-40820 |
US $2.18 |
||
|
11425
|
11425
90116-08015 Bolt, Stud(For Timing Gear Cover)[04.1969 - 12.1971] 2UC..UP3# L=37,S=13.5&13.5 |
90116-08015 |
US $3.76 |
||
|
11425
|
11425
90116-08113 Bolt, Stud(For Oil Filter)STUD(FOR HEAD TO CAMSHAFT BEARING CAP) [04.1969 - 02.1971] 2UC..UP3# L=45,S=14.5&14.5 |
90116-08113 |
US $2.33 |
||
|
11425
|
11425
92132-40836
Bolt, Stud(For Oil Filter)
[03.1971 - 12.1971] 2UC..UP3# L=52,S=16&16 |
92132-40836 |
— | ||
|
11427
|
11427
92132-40836
Bolt, Stud(For Oil Filter)
[04.1969 - 12.1971] 2UC..UP3# L=52,S=16 |
92132-40836 |
— | ||
|
11428
|
11428
90116-10066
Bolt, Stud(For Transmission Case)
[04.1969 - 12.1971] 2UC..UP3# L=55,S=20&20 |
90116-10066 |
— | ||
| replacement | |||||
|
11428
|
11428
92132-41035
Bolt, Stud(For Transmission Case)
[04.1969 - 12.1971] 2UC..UP3# L=55,S=20&20 |
92132-41035 |
— | ||
|
11428
|
11428
92132-41028
Bolt, Stud(For Transmission Case)
[04.1969 - 12.1971] 2UC..UP3# L=48,S=20&20 |
92132-41028 |
— | ||
|
11452
|
11452
11452-11022
Guide, Oil Level Gage
[02.1971 - 12.1971] 2UC..UP3# |
11452-11022 |
— | ||
|
11465
|
11465
11465-11020
Cylinder
[04.1969 - 12.1971] 2UC..UP3# |
11465-11020 |
— | ||
|
15301
|
15301
15360-10011
Gage Sub-Assy, Oil Level
[04.1969 - 02.1971] 2UC..UP3# |
15360-10011 |
— | ||
|
15301
|
15301
15360-11023
Gage Sub-Assy, Oil Level
[03.1971 - 12.1971] 2UC..UP3# |
15360-11023 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
