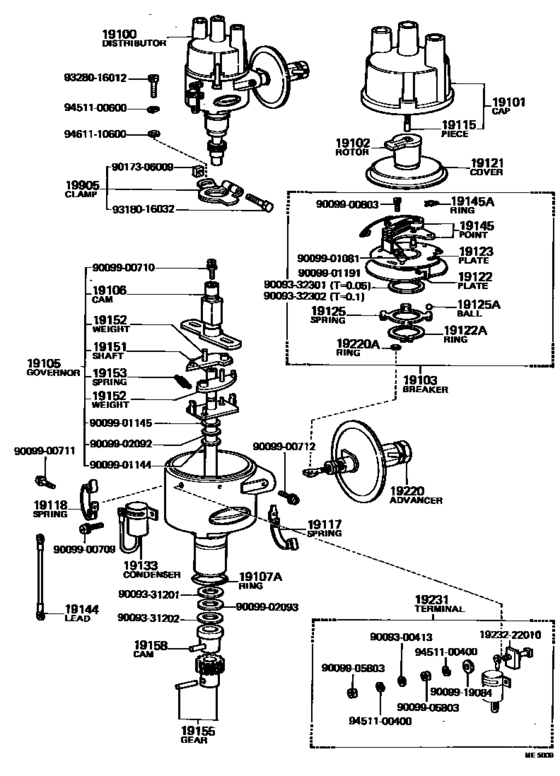

Distributor ([04.1969 - 12.1971] (6904-7112)2UC) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP30
- grade
- DLX
- body
- SED
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-10012
Distributor Assy
[04.1969 - 12.1971] 2UC..UP3# |
19100-10012 |
— | ||
| replacement | |||||
|
19100
|
19100
19100-10013
Distributor Assy
[04.1969 - 12.1971] 2UC..UP3# |
19100-10013 |
— | ||
|
19101
|
19101
19101-10010 Cap Sub-Assy, DistributorDISTRIBUTOR [04.1969 - 12.1971] 2UC..UP3# |
19101-10010 |
US $35.62 |
||
|
19102
|
19102
19102-22010 Rotor Sub-Assy, Distributor[04.1969 - 05.1972] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
19102-22010 |
US $9.17 |
||
| replacement | |||||
|
19102
|
19102
19102-24121 Rotor Sub-Assy, DistributorDISTRIBUTOR [04.1969 - 05.1972] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
19102-24121 |
US $15.29 |
||
|
19103
|
19103
19103-10011
Breaker Sub-Assy, Distributor
[04.1969 - 12.1971] 2UC..UP3# |
19103-10011 |
— | ||
|
19105
|
19105
19105-10012
Governor Sub-Assy
[04.1969 - 12.1971] 2UC..UP3# |
19105-10012 |
— | ||
|
19106
|
19106
19106-10013
Cam Sub-Assy, Distributor
[04.1969 - 12.1971] 2UC..UP3# |
19106-10013 |
— | ||
|
19107A
|
19107A
90099-14007
Ring, O, Distributor Housing
[04.1969 - 12.1971] 2UC..UP3# |
90099-14007 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[04.1969 - 08.1988] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
19115-50010 |
— | ||
|
19117
|
19117
19117-30030
Spring, Distributor Cap, A
[04.1969 - 01.1982] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ..KP3# |
19117-30030 |
— | ||
|
19118
|
19118
19118-30030
Spring, Distributor Cap, B
[04.1969 - 01.1982] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ..KP3# |
19118-30030 |
— | ||
|
19121
|
19121
19121-10010
Cover, Dust Proof
[04.1969 - 01.1982] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ..KP3# |
19121-10010 |
— | ||
|
19122
|
19122
19122-29021
Plate, Stationary, Distributor
[04.1969 - 01.1982] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ..KP3# |
19122-29021 |
— | ||
|
19122A
|
19122A
90099-07081
Ring, Snap(For Distributor Stationary Plate)
[04.1969 - 01.1982] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ..KP3# |
90099-07081 |
— | ||
|
19123
|
19123
19123-10011
Plate, Distributor Breaker
[04.1969 - 12.1971] 2UC..UP3# |
19123-10011 |
— | ||
|
19125
|
19125
19125-30010
Spring(For Distributor Stationary Plate)
[04.1969 - 01.1982] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ..KP3# |
19125-30010 |
— | ||
|
19125A
|
19125A
90099-12003
Ball, Distributor Stationary Plate
[04.1969 - 01.1982] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ..KP3# |
90099-12003 |
— | ||
|
19133
|
19133
19133-10010
Condenser, Distributor
[04.1969 - 11.1975] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
19133-10010 |
— | ||
| replacement | |||||
|
19133
|
19133
90099-52060
Condenser, Distributor
[04.1969 - 11.1975] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
90099-52060 |
— | ||
|
19144
|
19144
19144-10010
Lead, Distributor Breaker
[04.1969 - 12.1971] 2UC..UP3# |
19144-10010 |
— | ||
|
19145
|
19145
04191-40010 Point, DistributorDISTRIBUTOR [04.1969 - 12.1971] 2UC..UP3# |
04191-40010 |
US $17.47 |
||
|
19145A
|
19145A
90099-07042
Ring, Snap(For Distributor Kit)
[04.1969 - 12.1971] 2UC..UP3# |
90099-07042 |
— | ||
|
19151
|
19151
19151-10013
Shaft, Governor
[04.1969 - 12.1971] 2UC..UP3# |
19151-10013 |
— | ||
|
19152
|
19152
19152-30010 Weight, Governor[04.1969 - 12.1971] 2UC..UP3# |
19152-30010 |
US $13.54 |
||
| replacement | |||||
|
19152
|
19152
19152-87104
Weight, Governor
[04.1969 - 12.1971] 2UC..UP3# |
19152-87104 |
— | ||
|
19153
|
19153
19153-10013
Spring, Governor, A
[04.1969 - 12.1971] 2UC..UP3# |
19153-10013 |
— | ||
|
19155
|
19155
19195-10010
Gear, Spiral, Distributor
[04.1969 - 12.1971] 2UC..UP3# |
19195-10010 |
— | ||
|
19158
|
19158
19158-10010
Cam, Fuel Pump
[04.1969 - 12.1971] 2UC..UP3# |
19158-10010 |
— | ||
|
19220
|
19220
19220-10014
Advancer Assy, Vacuum, Distributor
[04.1969 - 12.1971] 2UC..UP3# |
19220-10014 |
— | ||
|
19220A
|
19220A
90099-07011
Ring, Snap(For Governor Weight)
[04.1969 - 12.1971] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
90099-07011 |
— | ||
|
19231
|
19231
19231-10010
Terminal, Distributor
[04.1969 - 12.1971] 2UC..UP3# |
19231-10010 |
— | ||
|
19905
|
19905
19905-10010
Clamp Sub-Assy, Distributor
[04.1969 - 12.1971] 2UC..UP3# |
19905-10010 |
— | ||
|
1923222010
|
1923222010
19232-22010
Terminal, Distributor, No.2
|
19232-22010 |
— | ||
|
9009300413
|
9009300413
90093-00413
New Genuine Part
|
90093-00413 |
— | ||
|
9009331201
|
9009331201
90093-31201
New Genuine Part
|
90093-31201 |
— | ||
|
9009331202
|
9009331202
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009332301
|
9009332301
90093-32301
New Genuine Part
|
90093-32301 |
— | ||
|
9009332302
|
9009332302
90093-32302
New Genuine Part
|
90093-32302 |
— | ||
|
9009900709
|
9009900709
90099-00709
New Genuine Part
|
90099-00709 |
— | ||
| replacement | |||||
|
9009900709
|
9009900709
90099-00711
New Genuine Part
|
90099-00711 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900711
|
9009900711
90099-00711
New Genuine Part
|
90099-00711 |
— | ||
|
9009900712
|
9009900712
90099-00712
New Genuine Part
|
90099-00712 |
— | ||
|
9009900803
|
9009900803
90099-00803
New Genuine Part
|
90099-00803 |
— | ||
|
9009901081
|
9009901081
90099-01081
New Genuine Part
|
90099-01081 |
— | ||
|
9009901144
|
9009901144
90099-01144
Washer, No.2(For Governor Shaft Thrust)
|
90099-01144 |
— | ||
| replacement | |||||
|
9009901144
|
9009901144
90093-31204
Washer, No.2(For Governor Shaft Thrust)
|
90093-31204 |
— | ||
|
9009901145
|
9009901145
90099-01145
Washer, No.2(For Governor Shaft Thrust)
|
90099-01145 |
— | ||
| replacement | |||||
|
9009901145
|
9009901145
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009901191
|
9009901191
90099-01191
New Genuine Part
|
90099-01191 |
— | ||
|
9009902092
|
9009902092
90099-02092
Washer(For Governor Shaft Thrust)
|
90099-02092 |
— | ||
| replacement | |||||
|
9009902092
|
9009902092
90099-02093
Washer(For Governor Shaft Thrust)
|
90099-02093 |
— | ||
|
9009902093
|
9009902093
90099-02093
Washer(For Governor Shaft Thrust)
|
90099-02093 |
— | ||
|
9009905803
|
9009905803
90099-05803
New Genuine Part
|
90099-05803 |
— | ||
|
9009919084
|
9009919084
90099-19084
New Genuine Part
|
90099-19084 |
— | ||
|
9017306009
|
9017306009
90173-06009
Nut, Square(For Radiator Pipe Clamp)
|
90173-06009 |
— | ||
|
9318016032
|
9318016032
93180-16032
New Genuine Part
|
93180-16032 |
— | ||
|
9328016012
|
9328016012
93280-16012 New Genuine Part |
93280-16012 |
US $2.18 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.61 |
||
