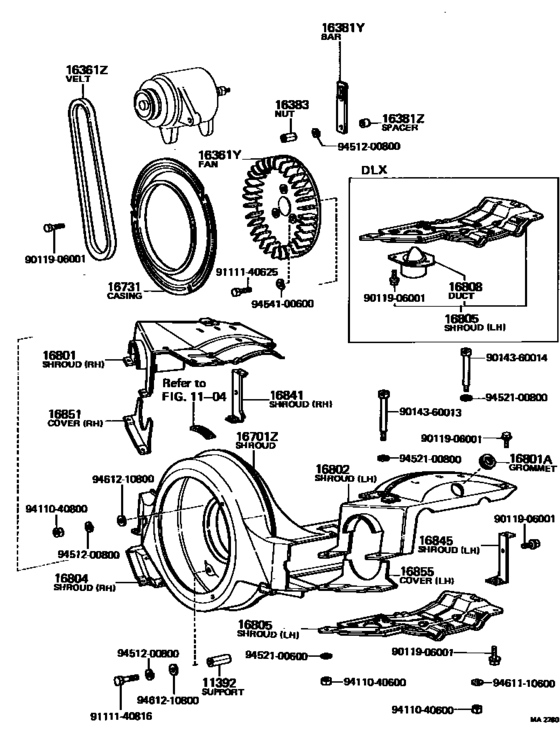

Fan Casing ([04.1969 - 12.1971] (6904-7112)2UC) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP30
- grade
- DLX
- body
- SED
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11392
|
11392
11392-10011
Support, Fan Casing
[04.1969 - 12.1971] 2UC..UP3# |
11392-10011 |
— | ||
|
16361Y
|
16361Y
16361-10012
Fan
[04.1969 - 12.1971] 2UC..UP3# |
16361-10012 |
— | ||
|
16361Z
|
16361Z
99511-10662 Belt, VV [04.1969 - 12.1971] 2UC..UP3# L=662 |
99511-10662 |
US $10.04 |
||
|
16381Y
|
16381Y
16381-10030
Bar, Fan Belt Adjusting
[04.1969 - 12.1971] 2UC..UP3# |
16381-10030 |
— | ||
|
16381Z
|
16381Z
90560-08219
Spacer, Fan Belt Adjusting Bar
[04.1969 - 12.1971] 2UC..UP3# |
90560-08219 |
— | ||
|
16383
|
16383
16383-10010
Nut, Belt Adjusting Bar
[04.1969 - 12.1971] 2UC..UP3# |
16383-10010 |
— | ||
|
16701Z
|
16701Z
16701-11030
Shroud, Fan
[04.1969 - 12.1971] 2UC..UP30..DLX |
16701-11030 |
— | ||
|
16731
|
16731
16731-11020
Casing, Fan, Inlet
[04.1969 - 12.1971] 2UC..UP3# |
16731-11020 |
— | ||
|
16801
|
16801
16801-11060
Shroud Sub-Assy, Upper, Rh
[04.1969 - 10.1970] 2UC..UP3# |
16801-11060 |
— | ||
| replacement | |||||
|
16801
|
16801
16801-11061
Shroud Sub-Assy, Upper, Rh
[04.1969 - 10.1970] 2UC..UP3# |
16801-11061 |
— | ||
|
16801
|
16801
16801-11061
Shroud Sub-Assy, Upper, Rh
[10.1970 - 12.1971] 2UC..UP3# |
16801-11061 |
— | ||
|
16801A
|
16801A
90480-36068 Grommet(For Shroud)[04.1969 - 12.1971] 2UC..UP3# |
90480-36068 |
US $1.65 |
||
|
16802
|
16802
16802-11050
Shroud Sub-Assy, Upper, Lh
[04.1969 - 12.1971] 2UC..UP3# |
16802-11050 |
— | ||
|
16804
|
16804
16804-11010
Shroud Sub-Assy, Lower, Rh
[04.1969 - 12.1971] 2UC..UP3# |
16804-11010 |
— | ||
|
16805
|
16805
16805-11030
Shroud Sub-Assy, Lower, Lh
[04.1969 - 12.1971] 2UC..UP30..DLX |
16805-11030 |
— | ||
|
16808
|
16808
16808-11010
Duct Sub-Assy, Air Inlet
[04.1969 - 12.1971] 2UC..UP30..DLX |
16808-11010 |
— | ||
|
16841
|
16841
16841-11020
Shroud, Rear, Rh
[04.1969 - 12.1971] 2UC..UP3# |
16841-11020 |
— | ||
|
16845
|
16845
16845-11020
Shroud, Rear, Lh
[04.1969 - 12.1971] 2UC..UP3# |
16845-11020 |
— | ||
|
16851
|
16851
16851-11010
Cover, Shroud Side, Rh
[04.1969 - 12.1971] 2UC..UP3# |
16851-11010 |
— | ||
|
16855
|
16855
16855-11010
Cover, Shroud Side, Lh
[04.1969 - 12.1971] 2UC..UP3# |
16855-11010 |
— | ||
|
9011906001
|
9011906001
90119-06001 New Genuine Part |
90119-06001 |
US $1.75 |
||
|
9014360013
|
9014360013
90143-60013 New Genuine Part |
90143-60013 |
US $4.08 |
||
|
9014360014
|
9014360014
90143-60014 New Genuine Part |
90143-60014 |
US $3.93 |
||
|
9111140625
|
9111140625
91111-40625 Bolt, Hexagon |
91111-40625 |
US $2.18 |
||
| replacement | |||||
|
9111140625
|
9111140625
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
||
|
9111140816
|
9111140816
91111-40816
New Genuine Part
|
91111-40816 |
— | ||
| replacement | |||||
|
9111140816
|
9111140816
91111-50816 Bolt |
91111-50816 |
US $2.15 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.65 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9452100600
|
9452100600
94521-00600
New Genuine Part
|
94521-00600 |
— | ||
|
9452100800
|
9452100800
94521-00800 New Genuine Part |
94521-00800 |
US $3.20 |
||
|
9454100600
|
9454100600
94541-00600 New Genuine Part |
94541-00600 |
US $5.39 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.61 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
