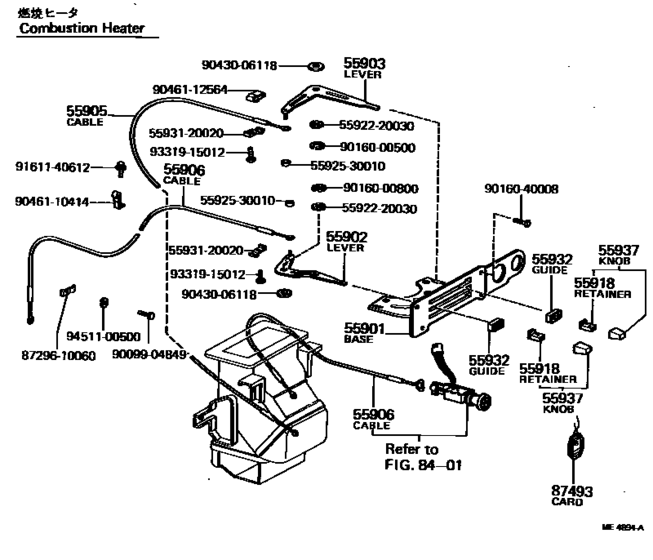

Heating & Air Conditioning - Control & Air Duct ([10.1970 - 12.1971] (7010-7112)UP3#) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP30
- grade
- DLX
- body
- SED
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55901
|
55901
55901-10010
Base Sub-Assy, Heater Control
[04.1969 - 10.1970] UP3# |
55901-10010 |
— | ||
|
55901
|
55901
55901-10031
Base Sub-Assy, Heater Control
[10.1970 - 12.1971] KP3#,UP3# |
55901-10031 |
— | ||
|
55902
|
55902
55902-10010
Lever Sub-Assy, Defroster Control
[04.1969 - 10.1970] KP3#,UP3# |
55902-10010 |
— | ||
|
55902
|
55902
55902-10011
Lever Sub-Assy, Defroster Control
[10.1970 - 10.1973] KP3#,UP3# |
55902-10011 |
— | ||
|
55903
|
55903
55903-10010
Lever Sub-Assy, Heater Control
[04.1969 - 10.1970] KP3#,UP3# |
55903-10010 |
— | ||
|
55903
|
55903
55903-10011
Lever Sub-Assy, Heater Control
[10.1970 - 08.1988] KP3#,50,UP3# |
55903-10011 |
— | ||
|
55905
|
55905
55905-10040
Cable Sub-Assy, Defrost Control
[04.1969 - 10.1970] UP3# |
55905-10040 |
— | ||
|
55905
|
55905
55905-10041
Cable Sub-Assy, Defrost Control
[10.1970 - 12.1971] UP3# |
55905-10041 |
— | ||
|
55905
|
55905
87791-10010
Cable Sub-Assy, Defrost Control
[04.1969 - 10.1970] UP3# DEFOGGER |
87791-10010 |
— | ||
|
55905
|
55905
87791-10011
Cable Sub-Assy, Defrost Control
[10.1970 - 12.1971] UP3# DEFOGGER |
87791-10011 |
— | ||
|
55906
|
55906
55906-10040
Cable Sub-Assy, Heater Control
[04.1969 - 10.1970] UP3# EXHAUST HEATER |
55906-10040 |
— | ||
|
55906
|
55906
55906-10041
Cable Sub-Assy, Heater Control
[10.1970 - 12.1971] UP3# EXHAUST HEATER |
55906-10041 |
— | ||
|
55906
|
55906
55906-10080
Cable Sub-Assy, Heater Control
[10.1970 - 12.1971] UP3# COMBUSTION HEATER |
55906-10080 |
— | ||
|
55906
|
55906
87486-10070
Cable Sub-Assy, Heater Control
[04.1969 - 10.1970] UP3# COMBUSTION HEATER |
87486-10070 |
— | ||
|
55918
|
55918
55918-22010 Retainer, Air Damper Control Lever Knob[04.1969 - 12.1971] KP3#,UP3# |
55918-22010 |
US $4.22 |
||
|
55932
|
55932
55932-20020
Guide, Lever, No.1
[04.1969 - 10.1970] KP3#,UP3# |
55932-20020 |
— | ||
|
55932
|
55932
55932-20040 Guide, Lever, No.1LEVER, NO.1 [10.1970 - 08.1988] KP3#,50,UP3# |
55932-20040 |
US $3.20 |
||
|
55937
|
55937
55937-22901 Knob, Heater Control LeverHEATER CONTROL LEVER [04.1969 - 08.1988] KP3#,50,UP3# |
55937-22901 |
US $5.39 |
||
|
87493
|
87493
87119-10070
Card, Heater Control Knob Transfer
[04.1969 - 12.1971] UP3# EXHAUST HEATER |
87119-10070 |
— | ||
|
87493
|
87493
87493-10070
Card, Heater Control Knob Transfer
[04.1969 - 10.1970] UP3# COMBUSTION HEATER |
87493-10070 |
— | ||
|
87493
|
87493
87493-10071
Card, Heater Control Knob Transfer
[10.1970 - 12.1971] UP3# COMBUSTION HEATER |
87493-10071 |
— | ||
|
5592220030
|
5592220030
55922-20030 Bracket, Heater Control Base |
55922-20030 |
US $3.49 |
||
|
5592530010
|
5592530010
55925-30010 Retainer, Cowl Ventilator Control Wire PinCOWL VENTILATOR CONTROL WIRE PIN |
55925-30010 |
US $2.62 |
||
| replacement | |||||
|
5592530010
|
5592530010
90183-04072
Retainer, Cowl Ventilator Control Wire Pin
|
90183-04072 |
— | ||
|
5593120020
|
5593120020
55931-20020 Clamp, Heater Control Wire |
55931-20020 |
US $3.93 |
||
|
8729610060
|
8729610060
87296-10060
Wiring, Heater, No.2 (for Switch To Heater)
|
87296-10060 |
— | ||
|
9009904849
|
9009904849
90099-04849
New Genuine Part
|
90099-04849 |
— | ||
|
9016000500
|
9016000500
90160-00500
New Genuine Part
|
90160-00500 |
— | ||
|
9016000800
|
9016000800
90160-00800
New Genuine Part
|
90160-00800 |
— | ||
|
9016040008
|
9016040008
90160-40008
New Genuine Part
|
90160-40008 |
— | ||
|
9043006118
|
9043006118
90430-06118
New Genuine Part
|
90430-06118 |
— | ||
|
9046110414
|
9046110414
90461-10414
New Genuine Part
|
90461-10414 |
— | ||
|
9046112564
|
9046112564
90461-12564
New Genuine Part
|
90461-12564 |
— | ||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
