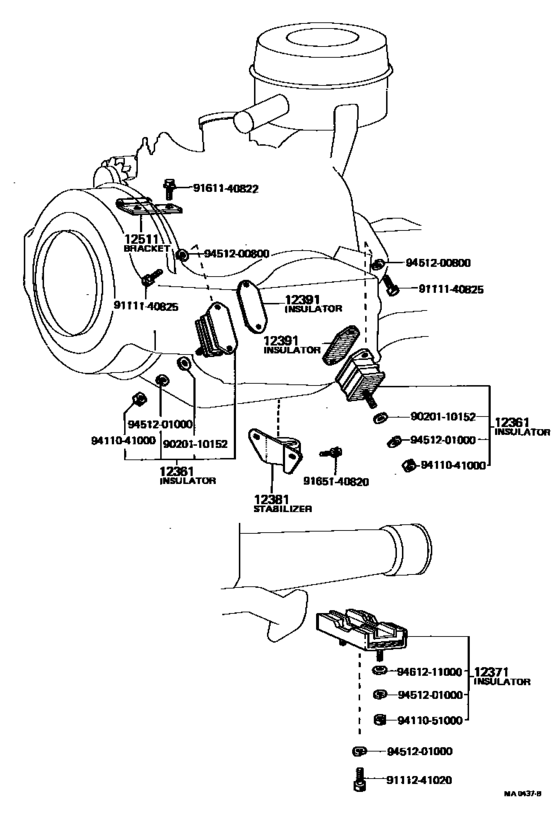

Mounting ([04.1969 - 12.1971] (6904-7112)2UC) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP36
- grade
- STD
- body
- V
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12361
|
12361
12361-19025 Insulator, Engine Mounting, Front[04.1969 - 12.1971] 2UC..UP3# |
12361-19025 |
US $64.18 |
||
|
12371
|
12371
12371-19045
Insulator, Engine Mounting, Rear No.1
[04.1969 - 12.1971] 2UC..UP3# |
12371-19045 |
— | ||
| replacement | |||||
|
12371
|
12371
12371-11050
Insulator, Engine Mounting, Rear No.1
[04.1969 - 12.1971] 2UC..UP3# |
12371-11050 |
— | ||
|
12381
|
12381
12381-11010
Stabilizer, Engine Mounting
[04.1969 - 12.1971] 2UC..UP3# |
12381-11010 |
— | ||
|
12391
|
12391
12391-10010
Insulator, Engine Mounting Front, Heat, Rh
[04.1969 - 12.1971] 2UC..UP3# |
12391-10010 |
— | ||
|
12511
|
12511
12511-10050
Bracket, Alternator, No.1
[04.1969 - 12.1971] 2UC..UP3# |
12511-10050 |
— | ||
|
9020110152
|
9020110152
90201-10152 WASHER |
90201-10152 |
from US $0.84 |
||
|
9111140825
|
9111140825
91111-40825
Bolt(For Clutch Master Cylinder Setting)
|
91111-40825 |
— | ||
| replacement | |||||
|
9111140825
|
9111140825
91111-50825 Bolt(For Clutch Master Cylinder Setting) |
91111-50825 |
US $3.40 |
||
|
9111241020
|
9111241020
91112-41020 New Genuine Part |
91112-41020 |
US $3.49 |
||
|
9161140822
|
9161140822
91611-40822
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40822 |
— | ||
| replacement | |||||
|
9161140822
|
9161140822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.74 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $3.05 |
||
