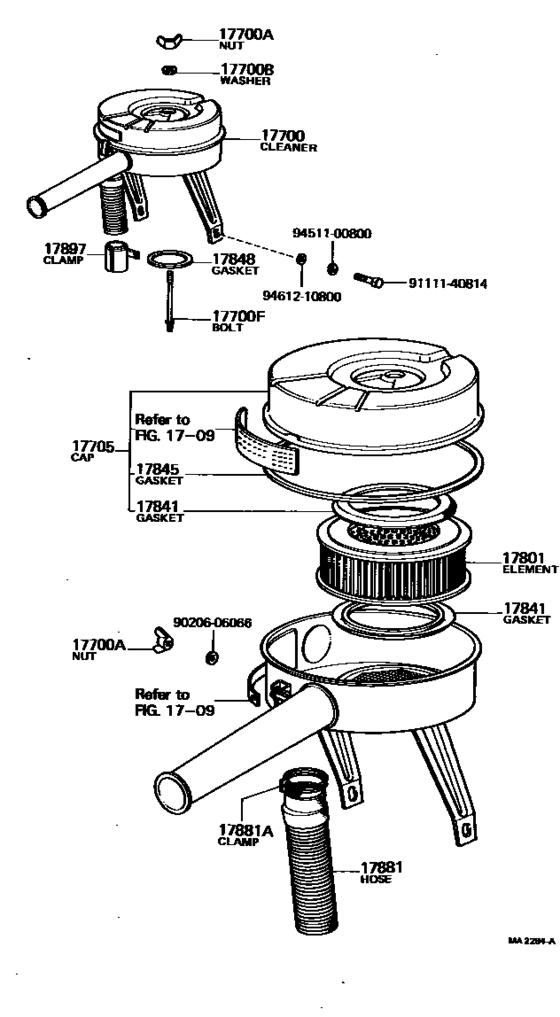

Air Cleaner ([04.1969 - 12.1971] (6904-7112)2UC) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP36
- grade
- DLX
- body
- V
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-11121 Cleaner Assy, Air[04.1969 - 04.1970] 2UC..UP3# |
17700-11121 |
US $139.78 |
||
| replacement | |||||
|
17700
|
17700
17700-11122
Cleaner Assy, Air
[04.1969 - 04.1970] 2UC..UP3# |
17700-11122 |
— | ||
|
17700
|
17700
17700-11122
Cleaner Assy, Air
[04.1970 - 02.1971] 2UC..UP3# |
17700-11122 |
— | ||
|
17700
|
17700
17700-11123
Cleaner Assy, Air
[02.1971 - 12.1971] 2UC..UP3# |
17700-11123 |
— | ||
|
17700A
|
17700A
94270-00600
Nut, Wing(For Air Cleaner)
[04.1969 - 05.1973] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
94270-00600 |
— | ||
| replacement | |||||
|
17700A
|
17700A
94271-00600 Nut, Wing(For Air Cleaner)[04.1969 - 05.1973] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
94271-00600 |
US $1.61 |
||
|
17700B
|
17700B
90210-06001 Washer, Seal(For Air Cleaner)SEAL(FOR AIR CLEANER) [01.1971 - 04.1974] 2UC..UP3#; 2K,3K,3KB#..KP3# |
90210-06001 |
US $2.33 |
||
| replacement | |||||
|
17700B
|
17700B
90210-06023
Washer, Seal(For Air Cleaner)
[01.1971 - 04.1974] 2UC..UP3#; 2K,3K,3KB#..KP3# |
90210-06023 |
— | ||
|
17700B
|
17700B
94711-90600 Washer, Seal(For Air Cleaner)[04.1969 - 01.1971] 2UC..UP3#; KB,2K,3K..KP3# |
94711-90600 |
US $2.48 |
||
|
17700F
|
17700F
90116-06159 Bolt, Stud(For Air Cleaner Setting)STUD(FOR AIR CLEANER SETTING) [04.1969 - 12.1971] 2UC..UP3# L=132,S=12&29 |
90116-06159 |
US $3.93 |
||
|
17705
|
17705
17705-11121
Cap Sub-Assy, Air Cleaner
[04.1969 - 12.1971] 2UC..UP3# |
17705-11121 |
— | ||
|
17801
|
17801
17801-24010 Element Sub-Assy, Air Cleaner Filter[04.1969 - 01.1982] 2UC..UP3#; 2K,3K,3KHJ,3KU..KP3#,50 |
17801-24010 |
US $19.49 |
||
|
17841
|
17841
17841-60011
Gasket, Filter Element
[04.1969 - 04.1970] 2UC..UP3#; 2K..KP3# |
17841-60011 |
— | ||
| replacement | |||||
|
17841
|
17841
17841-68010 Gasket, Filter Element[04.1969 - 04.1970] 2UC..UP3#; 2K..KP3# |
17841-68010 |
from US $2.80 |
||
|
17845
|
17845
17845-11010
Gasket, Air Cleaner Cap
[04.1969 - 12.1971] 2UC..UP3# |
17845-11010 |
— | ||
|
17848
|
17848
90430-64139
Gasket, Air Cleaner To Carburetor
[04.1969 - 08.1972] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
90430-64139 |
— | ||
| replacement | |||||
|
17848
|
17848
90430-63187
Gasket, Air Cleaner To Carburetor
[04.1969 - 08.1972] 2UC..UP3#; KB,2K,3K,3KB#..KP3# |
90430-63187 |
— | ||
|
17881
|
17881
17881-11050
Hose, Air Cleaner, No.1
[04.1969 - 12.1971] 2UC..UP3# |
17881-11050 |
— | ||
|
17881A
|
17881A
90460-47036 Clamp Or Clip, Hose(For Radiator Inlet)[04.1969 - 11.1970] 2UC..UP3# |
90460-47036 |
US $3.94 |
||
|
17897
|
17897
17897-11030
Clamp, Hose(For Air Cleaner)
[04.1969 - 04.1970] 2UC..UP3# |
17897-11030 |
— | ||
|
17897
|
17897
17897-11031
Clamp, Hose(For Air Cleaner)
[04.1970 - 12.1971] 2UC..UP3# |
17897-11031 |
— | ||
|
9020606066
|
9020606066
90206-06066
New Genuine Part
|
90206-06066 |
— | ||
|
9111140814
|
9111140814
91111-40814
Bolt (for Transmission Control Cable Bracket)
|
91111-40814 |
— | ||
| replacement | |||||
|
9111140814
|
9111140814
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
