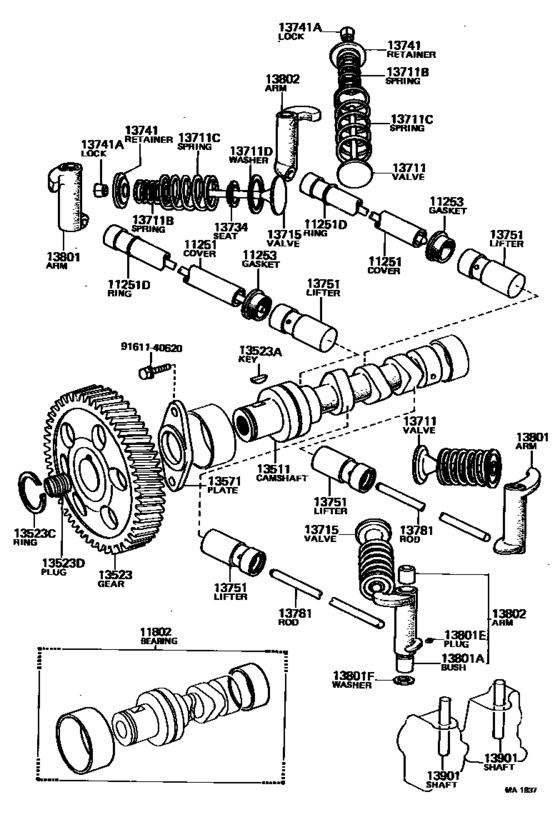

Camshaft & Valve ([04.1969 - 12.1971] (6904-7112)2UC) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP36
- grade
- DLX
- body
- V
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11251
|
11251
11251-10010
Cover, Valve Push Rod
[04.1969 - 12.1971] 2UC..UP3# |
11251-10010 |
— | ||
|
11251D
|
11251D
90301-15032
Ring, O(For Valve Push Rod Cover)
[04.1969 - 02.1971] 2UC..UP3# ID=15.7,T=2.4 |
90301-15032 |
— | ||
| replacement | |||||
|
11251D
|
11251D
96740-02016 Ring, O(For Valve Push Rod Cover)[04.1969 - 02.1971] 2UC..UP3# ID=15.7,T=2.4 |
96740-02016 |
US $6.09 |
||
|
11251D
|
11251D
96740-02016 Ring, O(For Valve Push Rod Cover)[03.1971 - 12.1971] 2UC..UP3# ID=10.7,T=2.4 |
96740-02016 |
US $6.09 |
||
|
11253
|
11253
11253-10012
Gasket, Valve Push Rod Cover
[04.1969 - 12.1971] 2UC..UP3# |
11253-10012 |
— | ||
|
11802
|
11802
11802-10011
Bearing Set, Camshaft
[04.1969 - 12.1971] 2UC..UP3# STD |
11802-10011 |
— | ||
|
11802
|
11802
11803-10011
Bearing Set, Camshaft
[04.1969 - 12.1971] 2UC..UP3# U/S 0.200 |
11803-10011 |
— | ||
|
11802
|
11802
11804-10011
Bearing Set, Camshaft
[04.1969 - 12.1971] 2UC..UP3# U/S 0.400 |
11804-10011 |
— | ||
|
13511
|
13511
13511-10011
Camshaft
[04.1969 - 12.1971] 2UC..UP3# |
13511-10011 |
— | ||
|
13523
|
13523
13523-10011
Gear Or Sprocket, Camshaft Timing
[04.1969 - 12.1971] 2UC..UP3# N=44 |
13523-10011 |
— | ||
|
13523A
|
13523A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[04.1969 - 12.1971] 2UC..UP3# |
90280-05008 |
US $3.94 |
||
|
13523C
|
13523C
90520-29051 Ring, Snap Camshaft(For Timing Gear)[04.1969 - 12.1971] 2UC..UP3# |
90520-29051 |
from US $1.90 |
||
|
13523D
|
13523D
90340-16010
Plug, Straight Screw(For Timing Gear)
[04.1969 - 12.1971] 2UC..UP3# |
90340-16010 |
— | ||
|
13571
|
13571
13571-10010
Plate, Camshaft Thrust
[04.1969 - 12.1971] 2UC..UP3# |
13571-10010 |
— | ||
|
13711
|
13711
13711-10010
Valve, Intake
[04.1969 - 12.1971] 2UC..UP3# |
13711-10010 |
— | ||
|
13711B
|
13711B
90501-26109
Spring, Compression(For Inner)
[04.1969 - 12.1971] 2UC..UP3# WD=2.6,CW=7.5 |
90501-26109 |
— | ||
| replacement | |||||
|
13711B
|
13711B
90501-26608
Spring, Compression(For Inner)
[04.1969 - 12.1971] 2UC..UP3# WD=2.6,CW=7.5 |
90501-26608 |
— | ||
|
13711C
|
13711C
90501-40111
Spring, Compression(For Outer)
[04.1969 - 12.1971] 2UC..UP3# WD=4,CW=6.5 |
90501-40111 |
— | ||
|
13711D
|
13711D
90201-24144
Washer, Plate(For Valve Spring Seat)
[04.1969 - 12.1971] 2UC..UP3# |
90201-24144 |
— | ||
|
13715
|
13715
13715-10010 Valve, Exhaust[04.1969 - 12.1971] 2UC..UP3# |
13715-10010 |
US $34.22 |
||
| replacement | |||||
|
13715
|
13715
13715-10011 Valve, Exhaust[04.1969 - 12.1971] 2UC..UP3# |
13715-10011 |
US $18.69 |
||
|
13734
|
13734
13734-10010 Seat, Valve SpringVALVE SPRING [04.1969 - 12.1971] 2UC..UP3# |
13734-10010 |
US $3.06 |
||
|
13741
|
13741
13741-10010
Retainer, Valve Spring
[04.1969 - 12.1971] 2UC..UP3# |
13741-10010 |
— | ||
|
13741A
|
13741A
90913-03005 Lock, Valve Spring Retainer[04.1969 - 08.1988] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
90913-03005 |
US $3.84 |
||
|
13751
|
13751
13750-10010
Lifter, Valve
[04.1969 - 12.1971] 2UC..UP3# |
13750-10010 |
— | ||
| replacement | |||||
|
13751
|
13751
13750-52020 Lifter, Valve[04.1969 - 12.1971] 2UC..UP3# |
13750-52020 |
US $116.44 |
||
|
13781
|
13781
13781-10010
Rod, Valve Push
[04.1969 - 12.1971] 2UC..UP3# |
13781-10010 |
— | ||
|
13801
|
13801
13801-10011
Arm Sub-Assy, Valve Rocker, No.1
[04.1969 - 12.1971] 2UC..UP3# |
13801-10011 |
— | ||
|
13801A
|
13801A
90999-70006
Bush, Bimetal Formed(For Rocker Arm)
[04.1969 - 12.1971] 2UC..UP3# |
90999-70006 |
— | ||
|
13801E
|
13801E
90335-03001
Plug, W/head Taper(For Rocker Arm)
[04.1969 - 12.1971] 2UC..UP3# |
90335-03001 |
— | ||
|
13801F
|
13801F
90206-16025
Washer, Wave(For Rocker Arm)
[04.1969 - 12.1971] 2UC..UP3# |
90206-16025 |
— | ||
|
13802
|
13802
13802-10011
Arm Sub-Assy, Valve Rocker, No.2
[04.1969 - 12.1971] 2UC..UP3# |
13802-10011 |
— | ||
|
13901
|
13901
13911-10010
Shaft Sub-Assy, Valve Rocker, No.1
[04.1969 - 12.1971] 2UC..UP3# |
13911-10010 |
— | ||
|
9161140620
|
9161140620
91611-40620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-40620 |
US $2.04 |
||
| replacement | |||||
|
9161140620
|
9161140620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
