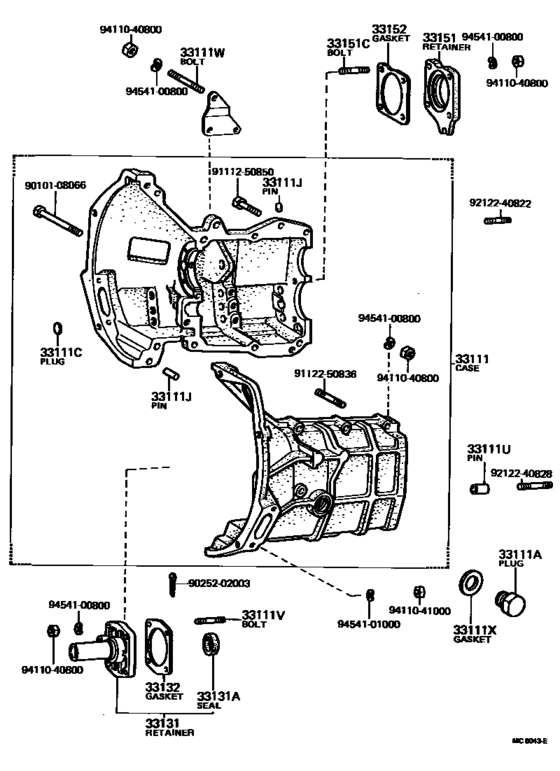

Clutch Housing & Transmission Case (Mtm) ([04.1969 - 12.1971] (6904-7112)UP3#) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP36
- grade
- DLX
- body
- V
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111
|
33111
33101-10030
Case, Manual Transmission
[04.1969 - 12.1971] UP3# |
33101-10030 |
— | ||
|
33111A
|
33111A
33104-30010 Plug Sub-Assy, Drain(Mtm)DRAIN(MTM) [04.1969 - 08.1969] UP3# ISO |
33104-30010 |
US $7.28 |
||
| replacement | |||||
|
33111A
|
33111A
90341-18057 Drain Plug (with Magnet)[04.1969 - 08.1969] UP3# ISO |
90341-18057 |
from US $6.27 |
||
|
33111A
|
33111A
90341-18049 Plug(For Oil Heater Houl)[08.1969 - 12.1971] UP3# ISO |
90341-18049 |
from US $3.55 |
||
|
33111C
|
33111C
90330-17029
Plug, Taper Screw(For Crankshaft)
[04.1969 - 12.1971] UP3# |
90330-17029 |
— | ||
|
33111J
|
33111J
90250-06029 Pin, Straight(For Crankshaft Damper)STRAIGHT(FOR MANUAL TRANSMISSION CASE) [04.1969 - 12.1971] UP3# L=8,OD=6 |
90250-06029 |
US $2.33 |
||
|
33111J
|
33111J
90250-08030
Pin, Straight(For Crankshaft)
[04.1969 - 12.1971] UP3# 長さ＝１６，外径＝８,L=16,OD=8 |
90250-08030 |
— | ||
| replacement | |||||
|
33111J
|
33111J
90250-08046 Pin, Straight(For Intake Manifold Setting)[04.1969 - 12.1971] UP3# 長さ＝１６，外径＝８,L=16,OD=8 |
90250-08046 |
US $1.79 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[04.1969 - 12.1971] UP3# 長さ＝１１，外径＝１１ |
90253-11001 |
US $2.15 |
||
|
33111V
|
33111V
90116-08008 Bolt, Stud(For Egr Valve)[04.1969 - 12.1971] UP3# L=30,S=13&13 |
90116-08008 |
US $2.34 |
||
|
33111W
|
33111W
90116-08057 Bolt, Stud(For Timing Gear Cover)[04.1969 - 12.1971] UP3# L=28,S=13&13 |
90116-08057 |
US $2.77 |
||
|
33111X
|
33111X
12157-10010 Gasket (For Drain Plug)[04.1969 - 12.1971] UP3# |
12157-10010 |
from US $0.72 |
||
|
33131
|
33131
33131-10903
Retainer, Bearing, Front(Mtm)
[04.1969 - 12.1971] UP3# |
33131-10903 |
— | ||
| replacements | |||||
|
33131
|
33131
33131-10030
Retainer, Bearing, Front(mtm)
[04.1969 - 12.1971] UP3# |
33131-10030 |
— | ||
|
33131
|
33131
90310-20026 Seal, Oil(For Transmission Front Bearing Retainer)OIL(FOR TRANSMISSION FRONT BEARING RETAINER) [04.1969 - 12.1971] UP3# |
90310-20026 |
US $2.20 |
||
|
33131A
|
33131A
90310-20026 Seal, Oil(For Transmission Front Bearing Retainer)OIL(FOR TRANSMISSION FRONT BEARING RETAINER) [04.1969 - 12.1971] UP3# |
90310-20026 |
US $2.20 |
||
|
33132
|
33132
33132-10010
Gasket, Front Bearing Retainer(Mtm)
[04.1969 - 12.1971] UP3# T=0.3 |
33132-10010 |
— | ||
|
33132
|
33132
33133-10010
Gasket, Front Bearing Retainer(Mtm)
[04.1969 - 12.1971] UP3# T=0.5 |
33133-10010 |
— | ||
|
33151
|
33151
33151-10011
Retainer, Output Shaft Rear Bearing(Mtm)
[04.1969 - 12.1971] UP3# |
33151-10011 |
— | ||
|
33151C
|
33151C
90116-08008 Bolt, Stud(For Egr Valve)[04.1969 - 12.1971] UP3# L=30,S=13 |
90116-08008 |
US $2.34 |
||
|
33152
|
33152
33152-10010
Shim, Output Shaft Rear Bearing Retainer
[04.1969 - 12.1971] UP3# T=0.1 |
33152-10010 |
— | ||
|
33152
|
33152
33153-10010
Shim, Output Shaft Rear Bearing Retainer
[04.1969 - 12.1971] UP3# T=0.2 |
33153-10010 |
— | ||
|
33152
|
33152
33154-10010
Shim, Output Shaft Rear Bearing Retainer
[04.1969 - 12.1971] UP3# T=0.3 |
33154-10010 |
— | ||
|
33152
|
33152
33155-10010
Shim, Output Shaft Rear Bearing Retainer
[04.1969 - 12.1971] UP3# T=0.5 |
33155-10010 |
— | ||
|
9010108066
|
9010108066
90101-08066 New Genuine Part |
90101-08066 |
US $2.91 |
||
|
9025202003
|
9025202003
90252-02003
New Genuine Part
|
90252-02003 |
— | ||
|
9111250850
|
9111250850
91112-50850 New Genuine Part |
91112-50850 |
US $1.75 |
||
| replacement | |||||
|
9111250850
|
9111250850
91112-60850 New Genuine Part |
91112-60850 |
US $0.70 |
||
|
9112250836
|
9112250836
91122-50836 New Genuine Part |
91122-50836 |
US $2.77 |
||
| replacement | |||||
|
9112250836
|
9112250836
91121-50836 New Genuine Part |
91121-50836 |
US $2.77 |
||
|
9212240822
|
9212240822
92122-40822 Bolt, Stud(For Water Pump Set)STUD(FOR WATER PUMP SET) |
92122-40822 |
US $2.77 |
||
|
9212240828
|
9212240828
92122-40828
Bolt, Stud(For Timing Gear Cover)
|
92122-40828 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9411040880
|
9411040880
94110-40880
New Genuine Part
|
94110-40880 |
— | ||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9454100800
|
9454100800
94541-00800 New Genuine Part |
94541-00800 |
US $1.79 |
||
|
9454101000
|
9454101000
94541-01000 New Genuine Part |
94541-01000 |
US $3.05 |
||
