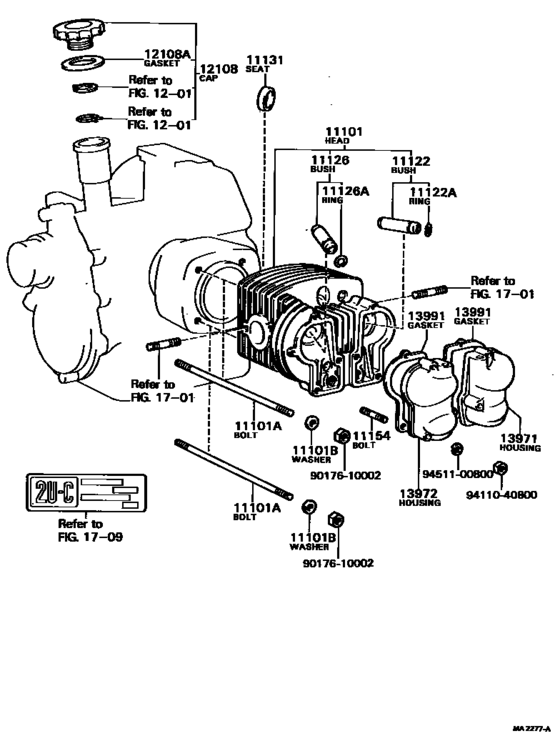

Cylinder Head ([04.1969 - 12.1971] (6904-7112)2UC) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP36
- grade
- DLX
- body
- V
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-11020
Head Sub-Assy, Cylinder
[04.1969 - 12.1971] 2UC..UP3# RH |
11101-11020 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-11021
Head Sub-Assy, Cylinder
[04.1969 - 12.1971] 2UC..UP3# RH |
11101-11021 |
— | ||
|
11101
|
11101
11102-11020
Head Sub-Assy, Cylinder
[04.1969 - 12.1971] 2UC..UP3# LH |
11102-11020 |
— | ||
| replacement | |||||
|
11101
|
11101
11102-11021
Head Sub-Assy, Cylinder
[04.1969 - 12.1971] 2UC..UP3# LH |
11102-11021 |
— | ||
|
11101A
|
11101A
90116-10108
Bolt(For Cylinder Head Set)
[04.1969 - 02.1971] 2UC..UP3# L=212,S=26&26 |
90116-10108 |
— | ||
|
11101A
|
11101A
90116-10116
Bolt(For Cylinder Head Set)
[04.1969 - 12.1971] 2UC..UP3# L=189,S=26&26 |
90116-10116 |
— | ||
|
11101B
|
11101B
90201-10092 Washer, Plate(For Cylinder Head Set)[04.1969 - 12.1971] 2UC..UP3# |
90201-10092 |
US $1.97 |
||
|
11122
|
11122
11122-10030 Bush, Intake Valve Guide[04.1969 - 12.1971] 2UC..UP3# STD |
11122-10030 |
US $8.44 |
||
|
11122
|
11122
11123-10030
Bush, Intake Valve Guide
[04.1969 - 12.1971] 2UC..UP3# O/S 0.10 |
11123-10030 |
— | ||
|
11122A
|
11122A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[04.1969 - 08.1988] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
90520-12049 |
US $3.05 |
||
|
11126
|
11126
11126-10030
Bush, Exhaust Valve Guide
[04.1969 - 12.1971] 2UC..UP3# STD |
11126-10030 |
— | ||
|
11126
|
11126
11127-10030
Bush, Exhaust Valve Guide
[04.1969 - 12.1971] 2UC..UP3# O/S 0.10 |
11127-10030 |
— | ||
|
11126A
|
11126A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[04.1969 - 08.1988] 2UC..UP3#; KB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50 |
90520-12049 |
US $3.05 |
||
|
11131
|
11131
11131-10011
Seat, Intake Valve
[04.1969 - 12.1971] 2UC..UP3# STD |
11131-10011 |
— | ||
|
11131
|
11131
11132-10010
Seat, Intake Valve
[04.1969 - 12.1971] 2UC..UP3# O/S 0.03 |
11132-10010 |
— | ||
|
11154
|
11154
90116-08064
Bolt, Stud(For Head To Valve Rocker Housing)
[04.1969 - 12.1971] 2UC..UP3# L=64,S=16&16 |
90116-08064 |
— | ||
| replacement | |||||
|
11154
|
11154
92132-40850 Bolt, Stud(For Head To Valve Rocker Housing)[04.1969 - 12.1971] 2UC..UP3# L=64,S=16&16 |
92132-40850 |
US $2.75 |
||
|
12108
|
12108
12180-11010
Cap Sub-Assy, Oil Filler
[04.1969 - 12.1971] 2UC..UP3# |
12180-11010 |
— | ||
|
12108A
|
12108A
90430-57127
Gasket(For Oil Filler Cap)
[04.1969 - 12.1971] 2UC..UP3# |
90430-57127 |
— | ||
|
13971
|
13971
13971-10010
Housing, Valve Rocker, No.1
[04.1969 - 12.1971] 2UC..UP3# |
13971-10010 |
— | ||
| replacement | |||||
|
13971
|
13971
13910-10011
Housing, Valve Rocker, No.1
[04.1969 - 12.1971] 2UC..UP3# |
13910-10011 |
— | ||
|
13972
|
13972
13972-10010
Housing, Valve Rocker, No.2
[04.1969 - 12.1971] 2UC..UP3# |
13972-10010 |
— | ||
| replacement | |||||
|
13972
|
13972
13920-10011
Housing, Valve Rocker, No.2
[04.1969 - 12.1971] 2UC..UP3# |
13920-10011 |
— | ||
|
13991
|
13991
13991-10011 Gasket, Valve Rocker Housing[04.1969 - 12.1971] 2UC..UP3# |
13991-10011 |
US $4.12 |
||
|
9017610002
|
9017610002
90176-10002
New Genuine Part
|
90176-10002 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
