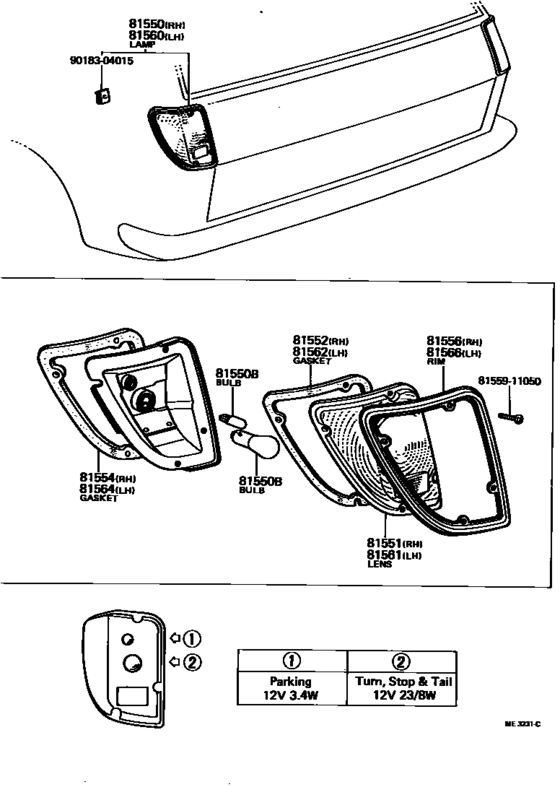

Rear Combination Lamp ([04.1969 - 12.1971] (6904-7112)V) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP36
- grade
- DLX
- body
- V
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-19155
Lamp Assy, Rear Combination, Rh
[04.1969 - 12.1971] KP36,UP36..V |
81550-19155 |
— | ||
|
81550B
|
81550B
99132-12034 Bulb, Position Indicator Lamp[04.1969 - 10.1973] KP31..XL;KP30,36,37,UP3# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
81550B
|
81550B
00234-00158 Bulb, Position Indicator Lamp[04.1969 - 10.1973] KP31..XL;KP30,36,37,UP3# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
81550B
|
81550B
99132-21230 Bulb (For Front Turn Signal Lamp)[04.1969 - 10.1973] KP3#,UP3# １２Ｖ ２３／８Ｗ,12V 23/8W |
99132-21230 |
US $3.40 |
||
|
81551
|
81551
81551-11050
Lens, Rear Combination Lamp, Rh
[04.1969 - 12.1971] KP36,UP36..V |
81551-11050 |
— | ||
|
81552
|
81552
81552-11050
Gasket, Rear Combination Lamp Lens, Rh
[04.1969 - 09.1978] KP36,37,UP36..V |
81552-11050 |
— | ||
|
81554
|
81554
81554-11050
Gasket, Rear Combination Lamp Body, Rh
[04.1969 - 09.1978] KP36,37,UP36..V |
81554-11050 |
— | ||
|
81556
|
81556
81556-11050
Rim, Rear Combination Lamp, Rh
[04.1969 - 09.1978] KP36,37,UP36..V |
81556-11050 |
— | ||
|
81560
|
81560
81560-19145
Lamp Assy, Rear Combination, Lh
[04.1969 - 12.1971] KP36,UP36..V |
81560-19145 |
— | ||
|
81561
|
81561
81561-11030
Lens, Rear Combination Lamp, Lh
[04.1969 - 12.1971] KP36,UP36..V |
81561-11030 |
— | ||
|
81562
|
81562
81552-11050
Gasket, Rear Combination Lamp Lens, Rh
[04.1969 - 09.1978] KP36,37,UP36..V |
81552-11050 |
— | ||
|
81564
|
81564
81554-11050
Gasket, Rear Combination Lamp Body, Rh
[04.1969 - 09.1978] KP36,37,UP36..V |
81554-11050 |
— | ||
|
81566
|
81566
81566-11030
Rim, Rear Combination Lamp, Lh
[04.1969 - 09.1978] KP36,37,UP36..V |
81566-11030 |
— | ||
|
8155911050
|
8155911050
81559-11050 Moulding, Rear Combination Lamp, Rh |
81559-11050 |
US $5.10 |
||
|
9018304015
|
9018304015
90183-04015 New Genuine Part |
90183-04015 |
US $2.77 |
||
