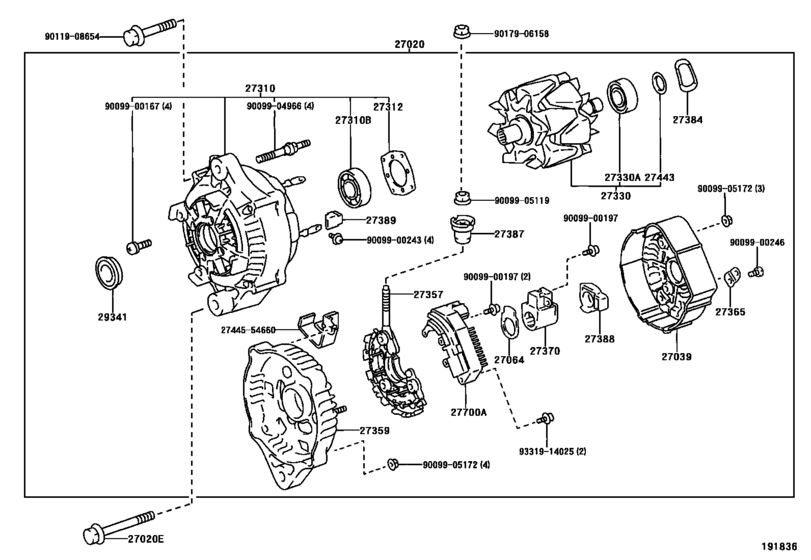

Alternator ([09.2002 - ] 12V 55A, 70A (0209- )2L) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-54370 Alternator Assy[10.2000 - 09.2002] 2L..LF50..DLX,GL 12V 70A |
27060-54370 |
US $1,557.92 |
||
| replacement | |||||
|
27020
|
27020
27060-54440
Alternator Assy
[10.2000 - 09.2002] 2L..LF50..DLX,GL 12V 70A |
27060-54440 |
— | ||
|
27020
|
27020
27060-54440
Alternator Assy
[09.2002 -] 2L..LF50..DLX,GL 12V 70A |
27060-54440 |
— | ||
|
27020E
|
27020E
90105-10287 Bolt(For Alternator)[12.1999 - 12.2004] 2L..LF50 |
90105-10287 |
US $6.24 |
||
|
27039
|
27039
27039-16380
Cover, Alternator Rear End
[12.1999 - 09.2002] 2L..LF50 |
27039-16380 |
— | ||
|
27039
|
27039
27039-70470
Cover, Alternator Rear End
[09.2002 - 12.2004] 2L..LF50 |
27039-70470 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[09.2002 -] 2L..LF50 |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-54500
Frame Assy, Drive End, Alternator
[11.2001 - 09.2002] 2L..LF50..DLX,GL 12V 70A |
27310-54500 |
— | ||
|
27310
|
27310
27310-54520
Frame Assy, Drive End, Alternator
[09.2002 - 12.2004] 2L..LF50..DLX,GL 12V 70A |
27310-54520 |
— | ||
|
27310B
|
27310B
90099-10165 Bearing(For Alternator Drive End Frame)[09.2002 - 12.2004] 2L..LF50 |
90099-10165 |
from US $8.74 |
||
|
27312
|
27312
27312-64130
Plate, Bearing Retainer, Alternator
[09.2002 - 12.2004] 2L..LF50 |
27312-64130 |
— | ||
|
27330
|
27330
27330-64130 Rotor Assy, Alternator[12.1999 - 09.2002] 2L..LF50 |
27330-64130 |
US $283.74 |
||
|
27330
|
27330
27330-64190 Rotor Assy, Alternator[09.2002 -] 2L..LF50..DLX,GL 12V 70A |
27330-64190 |
US $193.94 |
||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[12.1999 - 12.2004] 2L..LF50 |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-16380 Holder, Alternator, W/rectifier[12.1999 - 09.2002] 2L..LF50..DLX,GL 12V 70A |
27357-16380 |
US $164.24 |
||
|
27357
|
27357
27357-23040
Holder, Alternator, W/rectifier
[09.2002 -] 2L..LF50 |
27357-23040 |
— | ||
|
27359
|
27359
27359-16182
Frame, Alternator Rectifier End
[12.1999 - 09.2002] 2L..LF50 |
27359-16182 |
— | ||
|
27359
|
27359
27359-54420
Frame, Alternator Rectifier End
[09.2002 - 12.2004] 2L..LF50 |
27359-54420 |
— | ||
|
27365
|
27365
27365-55080
Plate, Terminal
[09.2002 -] 2L..LF50 |
27365-55080 |
— | ||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[12.1999 - 09.2002] 2L..LF50 |
27370-58320 |
from US $17 |
||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[09.2002 -] 2L..LF50 |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-16380
Washer
[12.1999 - 09.2002] 2L..LF50 |
27384-16380 |
— | ||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[09.2002 - 12.2004] 2L..LF50 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42021 Insulator, Terminal[09.2002 - 12.2004] 2L..LF50 |
27387-42021 |
US $2.42 |
||
|
27387
|
27387
27387-70171
Insulator, Terminal
[12.1999 - 09.2002] 2L..LF50 |
27387-70171 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[09.2002 -] 2L..LF50 |
27388-42010 |
US $10.66 |
||
|
27389
|
27389
27389-42010
Insulator, Terminal
[09.2002 -] 2L..LF50 |
27389-42010 |
— | ||
|
27389
|
27389
27389-63020
Insulator, Terminal
[12.1999 - 09.2002] 2L..LF50 |
27389-63020 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[12.1999 - 12.2004] 2L..LF50 |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-50030 Regulator Assy, Generator[09.2002 -] 2L..LF50..DLX,GL 12V 70A |
27700-50030 |
from US $160.78 |
||
|
27700A
|
27700A
27700-62030
Regulator Assy, Generator
[10.2000 - 09.2002] 2L..LF50..DLX,GL 12V 70A |
27700-62030 |
— | ||
| replacement | |||||
|
27700A
|
27700A
27700-50030 Regulator Assy, Generator[10.2000 - 09.2002] 2L..LF50..DLX,GL 12V 70A |
27700-50030 |
from US $160.78 |
||
|
29341
|
29341
29341-64130 Seal, Alternator Oil[09.2002 -] 2L..LF50 |
29341-64130 |
from US $6.81 |
||
|
2744554660
|
2744554660
27445-54660
New Genuine Part
|
27445-54660 |
— | ||
|
9009900167
|
9009900167
90099-00167
New Genuine Part
|
90099-00167 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9011908654
|
9011908654
90119-08654 BOLT WWASHER |
90119-08654 |
US $2.62 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
