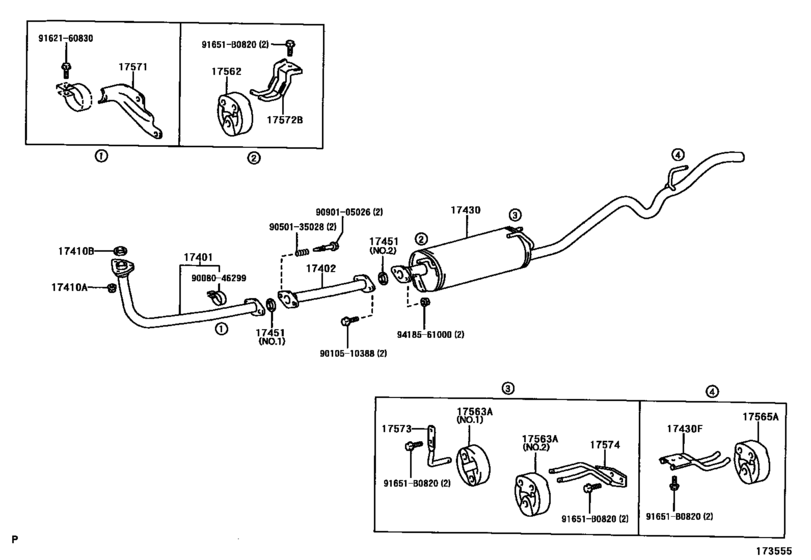

Exhaust Pipe ([06.2002 - ] (0206- )2L) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17401
|
17401
17401-05041
Pipe Sub-Assy, Exhaust, Front
[06.2002 - 01.2004] 2L..LF50 |
17401-05041 |
— | ||
|
17401
|
17401
17401-05042
Pipe Sub-Assy, Exhaust, Front
[01.2004 -] 2L..LF50 |
17401-05042 |
— | ||
|
17402
|
17402
17402-05010
Pipe Sub-Assy, Exhaust, Front No.2
[06.2002 - 01.2004] 2L..LF50 |
17402-05010 |
— | ||
|
17402
|
17402
17402-05011
Pipe Sub-Assy, Exhaust, Front No.2
[01.2004 -] 2L..LF50 |
17402-05011 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[12.1999 -] 2L,1RZE..LF50,RZF50 |
90179-10070 |
from US $1.40 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[12.1999 -] 2L,1RZE..LF50,RZF50 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06066 Gasket, Exhaust Pipe[12.1999 -] 2L..LF50 |
90917-06066 |
from US $5.05 |
||
|
17430
|
17430
17405-05060
Pipe Assy, Exhaust, Tail
[12.1999 - 09.2002] 2L..LF50 |
17405-05060 |
— | ||
|
17430
|
17430
17405-05062
Pipe Assy, Exhaust, Tail
[09.2002 -] 2L..LF50 |
17405-05062 |
— | ||
|
17430F
|
17430F
17562-0C050
Bracket, Exhaust Tail Pipe(For Center)
[12.2001 -] 2L..LF50 |
17562-0C050 |
— | ||
|
17451
|
17451
17451-54010 Gasket, Exhaust Pipe, Center[06.2002 -] 2L,1RZE..LF50,RZF50 NO.1 |
17451-54010 |
from US $13.92 |
||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[12.1999 -] 2L,1RZE..LF50,RZF50 NO.2 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[12.1999 -] 2L,1RZE..LF50,RZF50 NO.2 |
90080-43028 |
US $19.44 |
||
|
17562
|
17562
17566-35030 Bolt Or Ring, Exhaust Tail Pipe (For Rear)[12.1999 - 12.2004] 2L,1RZE..LF50,RZF50 |
17566-35030 |
from US $14.98 |
||
|
17563A
|
17563A
17565-63020 Ring, Catalytic Converter[06.2002 - 12.2004] 2L..LF50 NO.1 |
17565-63020 |
from US $11.51 |
||
|
17563A
|
17563A
17566-35030 Bolt Or Ring, Exhaust Tail Pipe (For Rear)[06.2002 - 12.2004] 2L..LF50 NO.2 |
17566-35030 |
from US $14.98 |
||
|
17565A
|
17565A
17566-35030 Bolt Or Ring, Exhaust Tail Pipe (For Rear)[12.1999 - 12.2004] 2L,1RZE..LF50,RZF50 |
17566-35030 |
from US $14.98 |
||
|
17571
|
17571
17571-54530 Bracket, Exhaust Pipe Support, No.1EXHAUST PIPE SUPPORT, NO.1 [12.1999 - 12.2004] 2L..LF50 |
17571-54530 |
US $14.41 |
||
|
17572B
|
17572B
17572-0C030
Bracket, Exhaust Pipe Support, No.2
[12.2001 -] 2L..LF50 |
17572-0C030 |
— | ||
|
17573
|
17573
17573-0C010
Bracket, Exhaust Pipe No.1 Support, Lower
[12.2001 -] 2L,1RZE..LF50,RZF50 (L) |
17573-0C010 |
— | ||
|
17574
|
17574
17574-05020
Bracket, Exhaust Pipe Support, No.4
[08.2002 -] 2L..LF50 |
17574-05020 |
— | ||
|
17574
|
17574
17574-0C010
Bracket, Exhaust Pipe Support, No.4
[12.2001 - 08.2002] 2L,1RZE..LF50,RZF50 (L) |
17574-0C010 |
— | ||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9008046299
|
9008046299
90080-46299
New Genuine Part
|
90080-46299 |
— | ||
|
9010510388
|
9010510388
90105-10388 BOLT |
90105-10388 |
from US $0.96 |
||
|
9050135028
|
9050135028
90501-35028 Spring, Exhaust Pipe |
90501-35028 |
from US $3.37 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $4.96 |
||
|
9162160830
|
9162160830
91621-60830 New Genuine Part |
91621-60830 |
US $3.06 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $1.01 |
||
