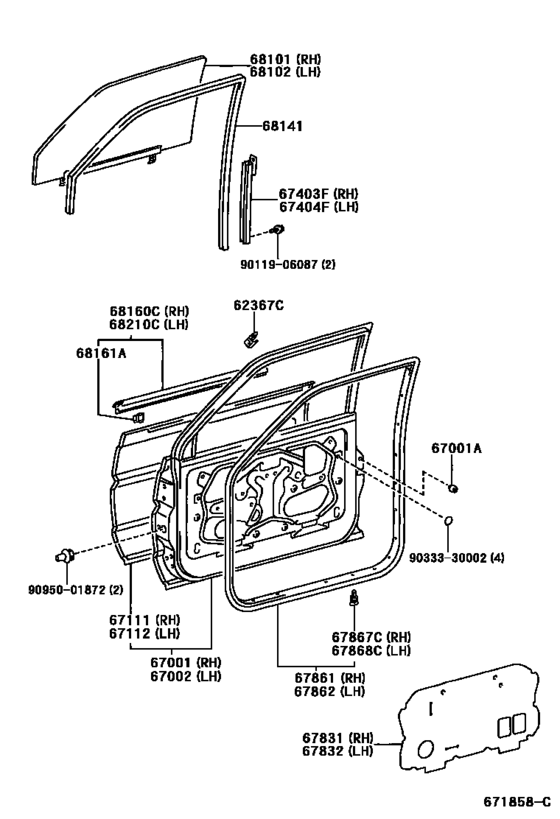

Front Door Panel & Glass ([12.1999 - ] (9912- )) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62367C
|
62367C
62367-10010 Clip, Door Window Glass[12.1999 -] LF50,RZF50 |
62367-10010 |
from US $2.44 |
||
|
67001
|
67001
67001-0B040
Panel Sub-Assy, Front Door, Rh
[12.1999 -] LF50,RZF50 |
67001-0B040 |
— | ||
|
67001A
|
67001A
90541-09038 Cushion, Front Door Panel[12.1999 -] LF50,RZF50 |
90541-09038 |
US $3.20 |
||
|
67002
|
67002
67002-0B040
Panel Sub-Assy, Front Door, Lh
[12.1999 - 10.2002] LF50,RZF50 |
67002-0B040 |
— | ||
|
67002
|
67002
67002-0B110
Panel Sub-Assy, Front Door, Lh
[10.2002 -] LF50,RZF50 |
67002-0B110 |
— | ||
|
67111
|
67111
67111-0B040
Panel, Front Door, Outer Rh
[12.1999 - 12.2004] LF50,RZF50 |
67111-0B040 |
— | ||
|
67112
|
67112
67112-0B050
Panel, Front Door, Outer Lh
[12.1999 - 12.2004] LF50,RZF50 |
67112-0B050 |
— | ||
|
67403F
|
67403F
67403-90P00 Frame Sub-Assy, Front Door, Rear Lower RhFRONT DOOR, REAR LOWER RH [12.1999 -] LF50,RZF50 |
67403-90P00 |
US $17.76 |
||
|
67404F
|
67404F
67404-90P00 Frame Sub-Assy, Front Door, Rear Lower LhFRONT DOOR, REAR LOWER LH [12.1999 -] LF50,RZF50 |
67404-90P00 |
US $17.76 |
||
|
67831
|
67831
67801-0B020
Cover, Front Door Service Hole, Rh
[01.2002 -] LF50,RZF50..GL |
67801-0B020 |
— | ||
|
67832
|
67832
67802-0B020
Cover, Front Door Service Hole, Lh
[01.2002 -] LF50,RZF50..GL |
67802-0B020 |
— | ||
|
67861
|
67861
67861-0B050
Weatherstrip, Front Door, Rh
[12.1999 -] LF50,RZF50 |
67861-0B050 |
— | ||
|
67862
|
67862
67862-0B050
Weatherstrip, Front Door, Lh
[12.1999 -] LF50,RZF50 |
67862-0B050 |
— | ||
|
67867C
|
67867C
67867-0B040
Retainer, Front Door Weatherstrip, Rh
[12.1999 -] LF50,RZF50 |
67867-0B040 |
— | ||
|
67868C
|
67868C
67868-0B040
Retainer, Front Door Weatherstrip, Lh
[12.1999 -] LF50,RZF50 |
67868-0B040 |
— | ||
|
68101
|
68101
68111-0B080
Glass Sub-Assy, Front Door, Rh
[12.2001 -] LF50,RZF50..DLX,GL *TEM,T=4.0,GREEN |
68111-0B080 |
— | ||
|
68102
|
68102
68112-0B080
Glass Sub-Assy, Front Door, Lh
[12.2001 -] LF50,RZF50..DLX,GL *TEM,T=4.0,GREEN |
68112-0B080 |
— | ||
|
68141
|
68141
68141-0B030
Run, Front Door Glass
[12.1999 -] LF50,RZF50 |
68141-0B030 |
— | ||
|
68160C
|
68160C
68160-0B020
Weatherstrip Assy, Front Door Glass, Outer Rh
[12.1999 -] LF50,RZF50 |
68160-0B020 |
— | ||
|
68161A
|
68161A
68211-0B010
Clip(For Front Door Glass Outer Weatherstrip)
[12.1999 -] LF50,RZF50 |
68211-0B010 |
— | ||
|
68210C
|
68210C
68210-0B010
Weatherstrip Assy, Front Door Glass, Outer Lh
[12.1999 -] LF50,RZF50 |
68210-0B010 |
— | ||
|
9011906087
|
9011906087
90119-06087
New Genuine Part
|
90119-06087 |
— | ||
| replacement | |||||
|
9011906087
|
9011906087
90119-06407 New Genuine Part |
90119-06407 |
US $1.92 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.12 |
||
|
9095001872
|
9095001872
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
