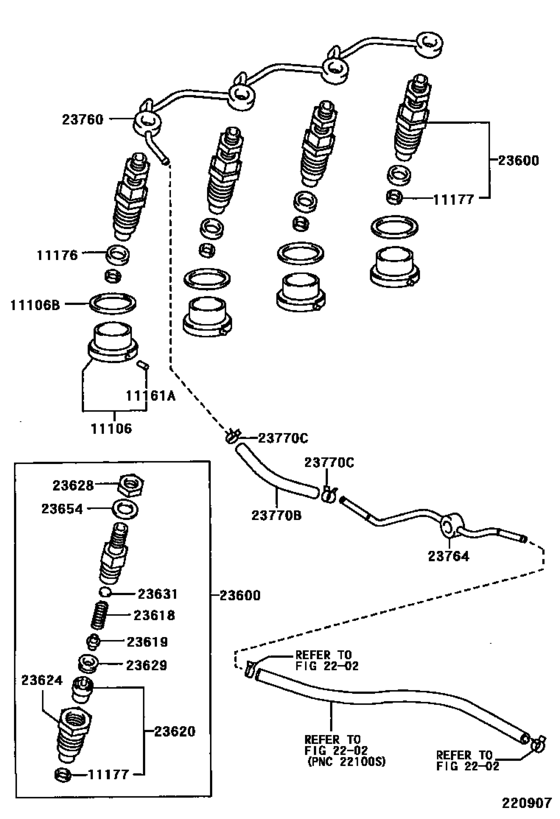

Injection Nozzle ([12.1999 - ] (9912- )2L) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11106
|
11106
11106-05020
Chamber Sub-Assy, Combustion
[12.1999 - 09.2002] 2L..LF50 (L) |
11106-05020 |
— | ||
|
11106
|
11106
11106-54100 Chamber Sub-Assy, Combustion[12.1999 - 09.2002] 2L..LF50 (J) |
11106-54100 |
US $152.88 |
||
|
11106
|
11106
11106-54150 Chamber Sub-Assy, CombustionCOMBUSTION [09.2002 - 03.2004] 2L..LF50..GL (J) |
11106-54150 |
US $230.05 |
||
|
11106B
|
11106B
11165-54030 Shim(For Combustion Chamber)[12.1999 -] 2L..LF50 T=0.03 |
11165-54030 |
from US $3.82 |
||
|
11161A
|
11161A
90250-02046 Pin, Straight(For Combustion Chamber)[12.1999 - 12.2004] 2L..LF50 |
90250-02046 |
US $0.96 |
||
|
11176
|
11176
11176-05010
Seat, Injection Nozzle
[12.1999 - 03.2004] 2L..LF50 (L) |
11176-05010 |
— | ||
|
11176
|
11176
11176-64010 Seat, Injection Nozzle[12.1999 - 12.2004] 2L..LF50 (J) |
11176-64010 |
from US $2.38 |
||
|
11177
|
11177
11177-54020 Gasket, Injection Nozzle Seat[12.1999 - 12.2004] 2L..LF50 |
11177-54020 |
from US $0.60 |
||
|
23600
|
23600
23600-59255 Holder & Nozzle Set, Nozzle[12.1999 - 09.2002] 2L..LF50..GL |
23600-59255 |
US $225.68 |
||
|
23600
|
23600
23600-59275
Holder & Nozzle Set, Nozzle
[03.2000 -] 2L..LF50 W(EGR) |
23600-59275 |
— | ||
|
23618
|
23618
23618-54730
Spring, Nozzle Holder Pressure
[12.1999 - 12.2004] 2L..LF50 |
23618-54730 |
— | ||
|
23619
|
23619
23619-64010 Pin, Nozzle Holder Pressure[12.1999 - 12.2004] 2L..LF50 |
23619-64010 |
US $1.12 |
||
|
23620
|
23620
23620-59095
Nozzle Assy
[12.1999 - 09.2002] 2L..LF50..GL |
23620-59095 |
— | ||
|
23620
|
23620
23620-59125 Nozzle Assy[03.2000 - 12.2004] 2L..LF50 W(EGR) |
23620-59125 |
US $52.27 |
||
|
23624
|
23624
23624-64040
Nut, Nozzle Retaining
[12.1999 - 12.2004] 2L..LF50 |
23624-64040 |
— | ||
| replacement | |||||
|
23624
|
23624
23624-64041 Nut, Nozzle Retaining[12.1999 - 12.2004] 2L..LF50 |
23624-64041 |
US $6.81 |
||
|
23628
|
23628
23628-64010 Nut(For Ring Packing Setting)[12.1999 - 12.2004] 2L..LF50 |
23628-64010 |
from US $1.40 |
||
|
23629
|
23629
23629-54080 Piece, Distance(For Nozzle)[12.1999 - 12.2004] 2L..LF50 |
23629-54080 |
from US $2.62 |
||
|
23631
|
23631
23631-64010 Washer(For Nozzle Holder Pressure Spring)[12.1999 - 12.2004] 2L..LF50 T=0.900 |
23631-64010 |
from US $1.05 |
||
|
23631
|
23631
23631-64012
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=0.950 |
23631-64012 |
— | ||
|
23631
|
23631
23631-64014
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.000 |
23631-64014 |
— | ||
|
23631
|
23631
23631-64016
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.050 |
23631-64016 |
— | ||
|
23631
|
23631
23631-64018
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.100 |
23631-64018 |
— | ||
|
23631
|
23631
23632-64010
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.150 |
23632-64010 |
— | ||
|
23631
|
23631
23632-64012
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.200 |
23632-64012 |
— | ||
|
23631
|
23631
23632-64014
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.250 |
23632-64014 |
— | ||
|
23631
|
23631
23632-64016
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.300 |
23632-64016 |
— | ||
|
23631
|
23631
23632-64018
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.350 |
23632-64018 |
— | ||
|
23631
|
23631
23633-64010
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.400 |
23633-64010 |
— | ||
|
23631
|
23631
23633-64012
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.450 |
23633-64012 |
— | ||
|
23631
|
23631
23633-64014
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.500 |
23633-64014 |
— | ||
|
23631
|
23631
23633-64016
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.550 |
23633-64016 |
— | ||
|
23631
|
23631
23633-64018 Washer(For Nozzle Holder Pressure Spring)[12.1999 - 12.2004] 2L..LF50 T=1.600 |
23633-64018 |
from US $0.94 |
||
|
23631
|
23631
23634-64010
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.650 |
23634-64010 |
— | ||
|
23631
|
23631
23634-64012
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.700 |
23634-64012 |
— | ||
|
23631
|
23631
23634-64014
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.750 |
23634-64014 |
— | ||
|
23631
|
23631
23634-64016
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.800 |
23634-64016 |
— | ||
|
23631
|
23631
23634-64018
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.850 |
23634-64018 |
— | ||
|
23631
|
23631
23635-64010
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.900 |
23635-64010 |
— | ||
|
23631
|
23631
23635-64012
Washer(For Nozzle Holder Pressure Spring)
[12.1999 - 12.2004] 2L..LF50 T=1.950 |
23635-64012 |
— | ||
|
23654
|
23654
23654-64010 Washer(For Ring Packing)[12.1999 - 12.2004] 2L..LF50 |
23654-64010 |
from US $0.70 |
||
|
23760
|
23760
23760-05010
Pipe Assy, Nozzle Leakage
[03.2004 - 12.2004] 2L..LF50 (L) |
23760-05010 |
— | ||
|
23760
|
23760
23760-54030 Pipe Assy, Nozzle Leakage[12.1999 - 03.2004] 2L..LF50 |
23760-54030 |
from US $31.53 |
||
|
23764
|
23764
23764-54090 Pipe, Nozzle Leakage, No.4[12.1999 - 12.2004] 2L..LF50 |
23764-54090 |
US $18.17 |
||
|
23770B
|
23770B
95333-04020 Hose, Lpg Injector[12.1999 - 12.2004] 2L..LF50 *H,L=120,ID=4 |
95333-04020 |
from US $4.84 |
||
|
23770C
|
23770C
96132-51000 Clip Or Clamp(For Ventilation Hose)[12.1999 - 12.2004] 2L..LF50 |
96132-51000 |
from US $1.62 |
||
